DIN rail terminal blocks - EURO

Tekox

DIN rail terminal blocks - EURO

EURO

Terminal blocks for electrical panel boards by means of DIN rail fixation.

CE
VDE
CSA UL
HALOGEN FREE
ROHS
Raw materials

- Corps: polyamide 6.6, cream blue and yellow colour. V2 (according to UL94).
- Busbars: nickel-plated copper.
- Clamps: zinc plated steel.
- Screws: zinc plated steel. Metric thread.

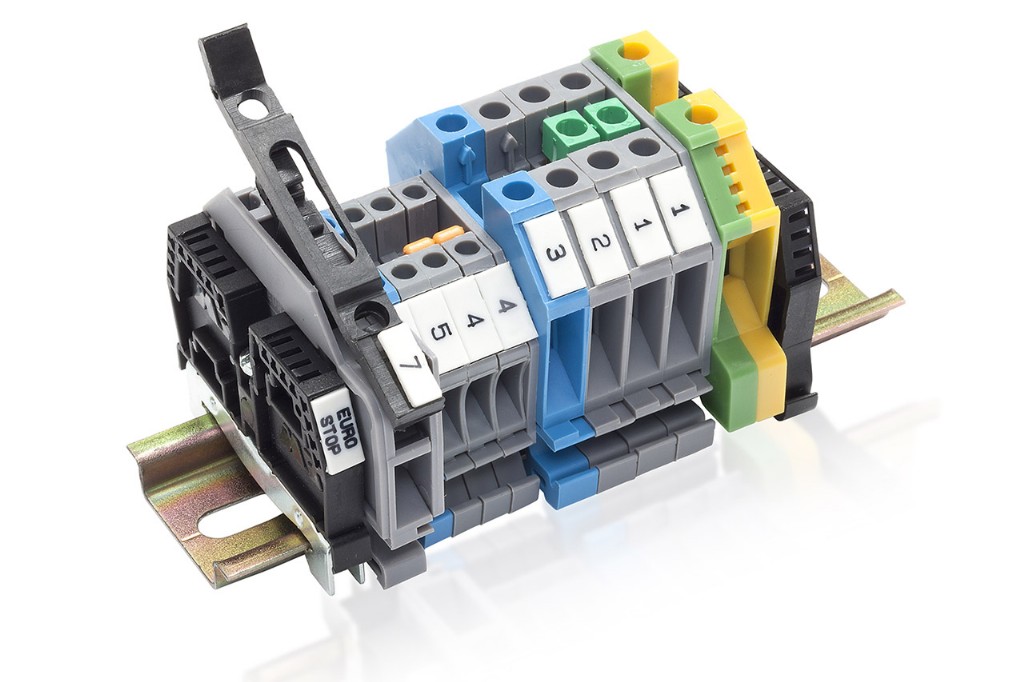

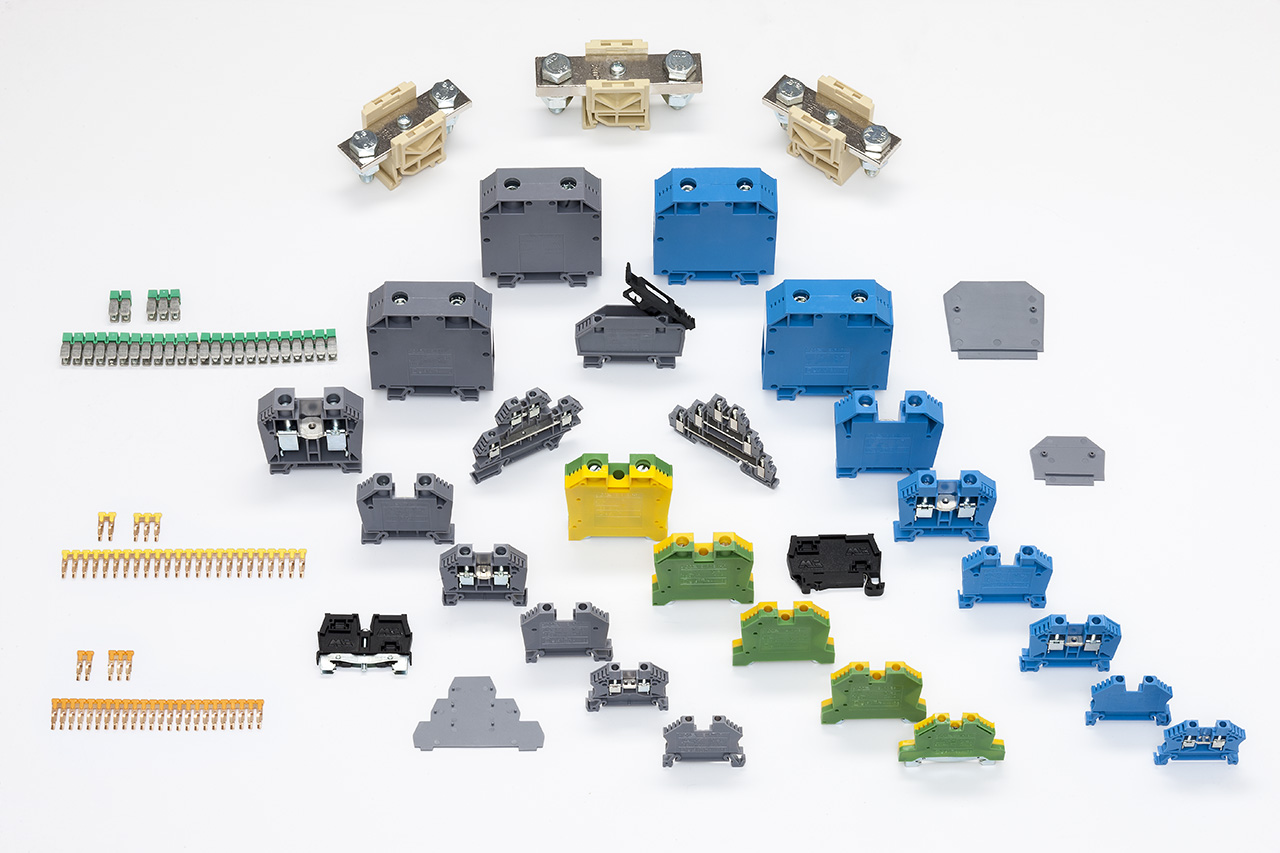

Euro Series

Used for making connections with copper conductors inside electrical panel boards by means of DIN rail fixation.

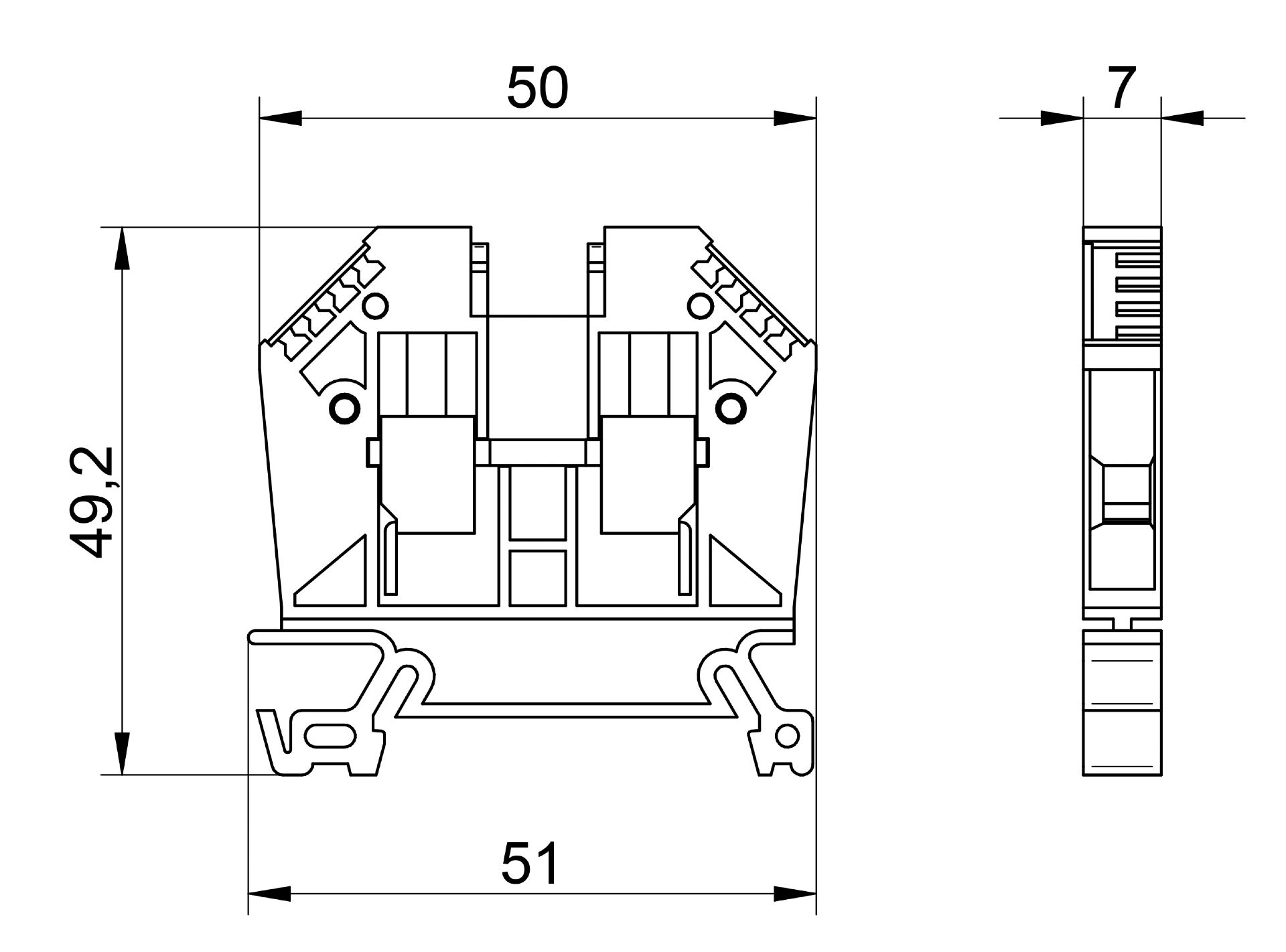

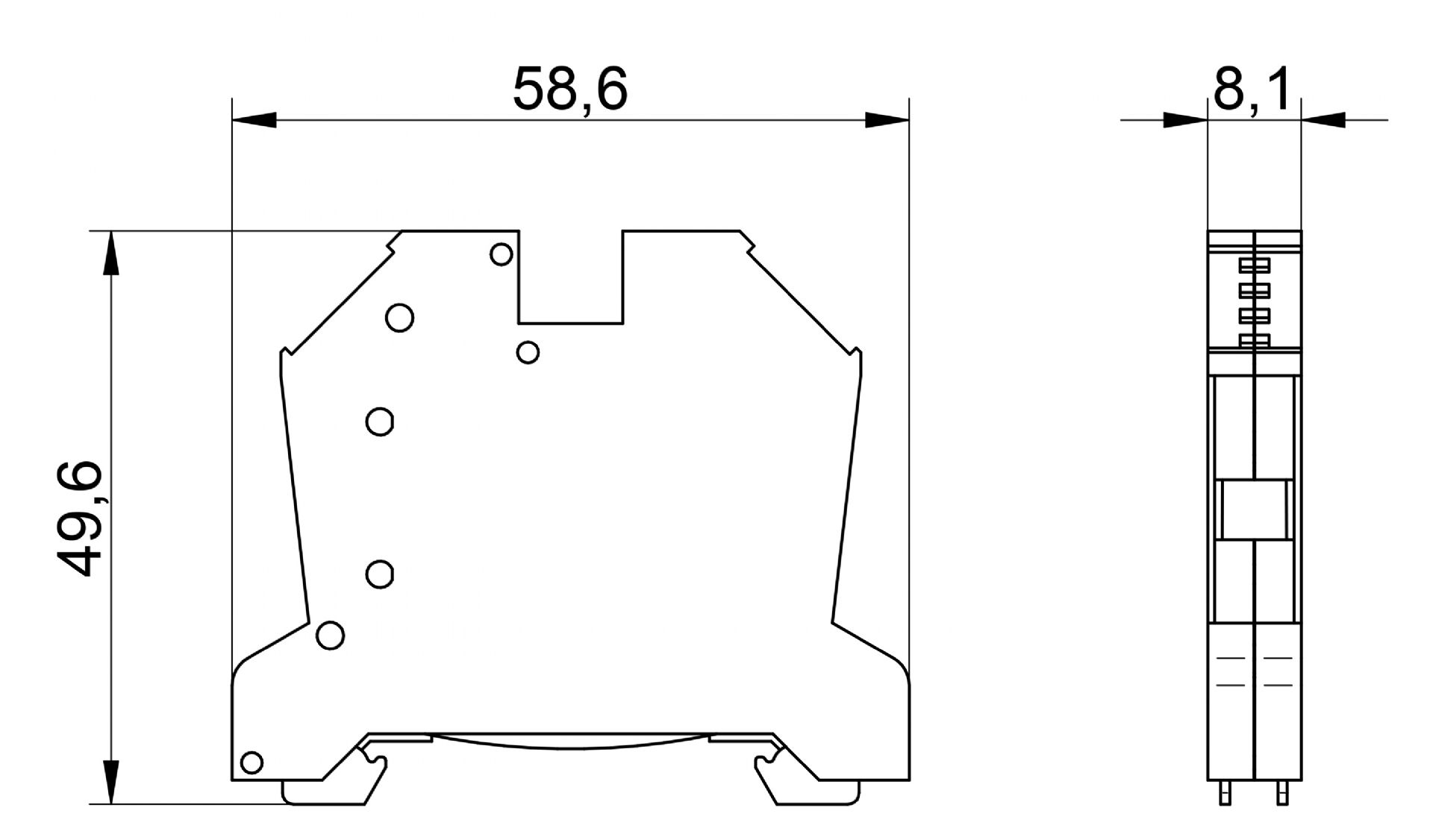

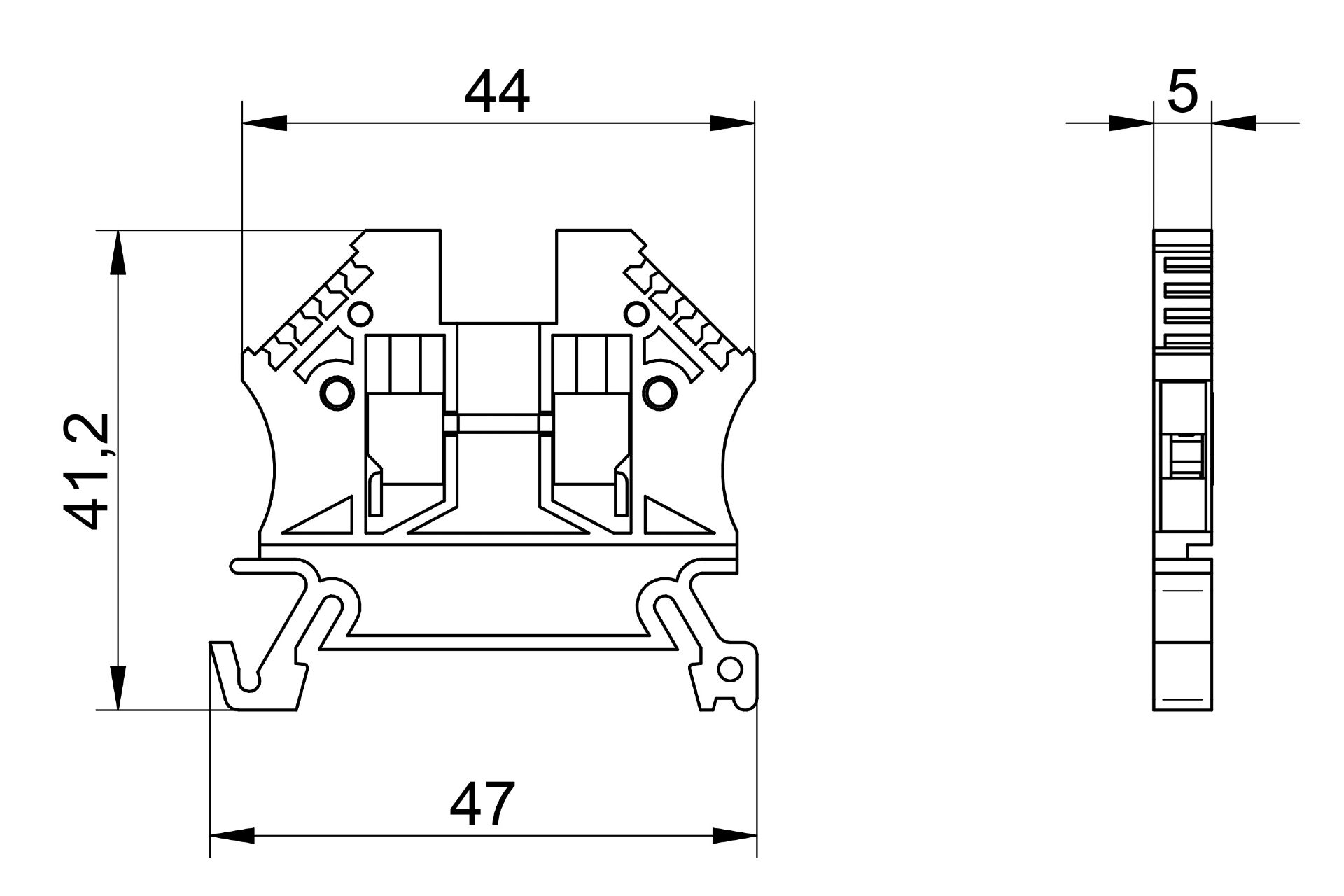

EURO2,5

DIN Rail Terminal Block 2,5mm² Grey

Connection capacity:

- Solid cable: 0,5 mm² / 4 mm²

- Flexible cable: 0,5 mm² / 2,5 mm² - Max. flexible with ferrule 2,5 mm²

Voltage: 1000 V

Intensity: 24 A

Tightening torque: 0,5 Nm

Metrics: M 2,6

Type: Line

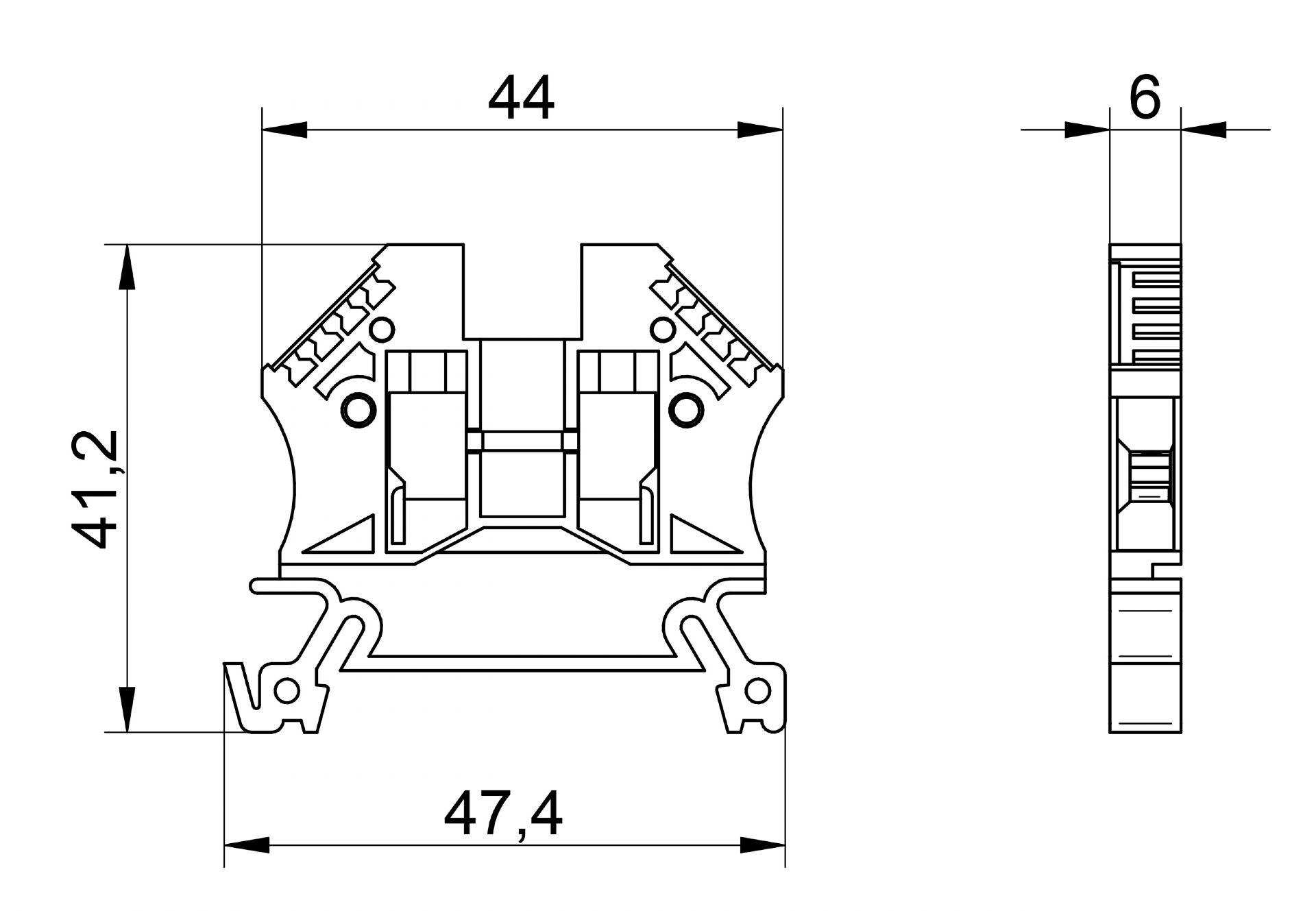

EURO2,5A

DIN Rail Terminal Block 2,5mm² Blue

Connection capacity:

- Solid cable: 0,5 mm² / 4 mm²

- Flexible cable: 0,5 mm² / 2,5 mm² - Max. flexible with ferrule 2,5 mm²

Voltage: 1000 V

Intensity: 24 A

Tightening torque: 0,5 Nm

Metrics: M 2,6

Type: Neutral

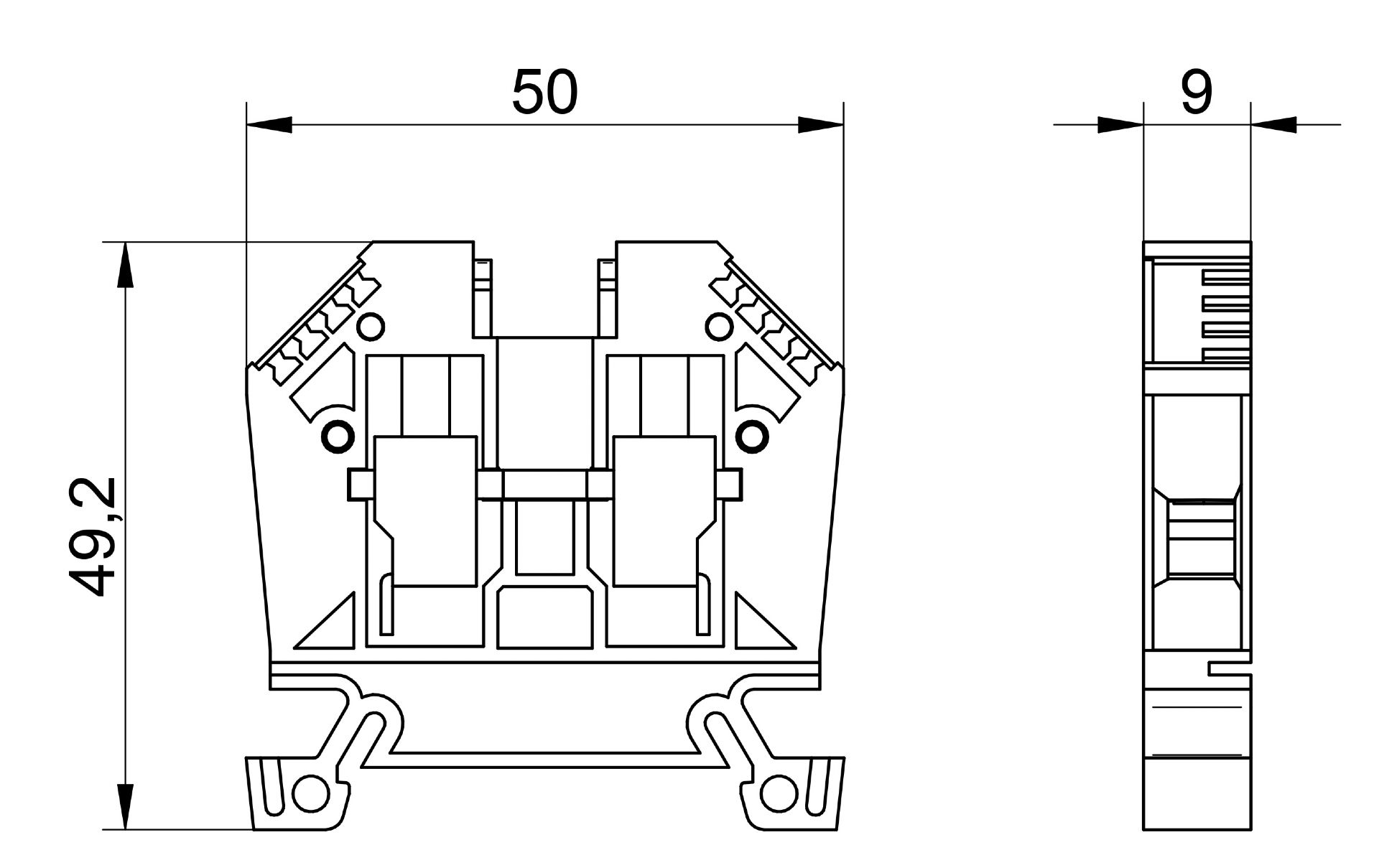

EURO4

DIN Rail Terminal Block 4mm² Grey

Connection capacity:

- Solid cable: 0,5 mm² / 6 mm²

- Flexible cable: 0,5 mm² / 4 mm² - Max. flexible with ferrule 4 mm²

Voltage: 1000 V

Intensity: 32 A

Tightening torque: 0,5 Nm

Metrics: M 3

Type: Line

EURO4A

DIN Rail Terminal Block 4mm² Blue

Connection capacity:

- Solid cable: 0,5 mm² / 6 mm²

- Flexible cable: 0,5 mm² / 4 mm² Max. flexible with ferrule 4 mm²

Voltage: 1000 V

Intensity: 32 A

Tightening torque: 0,5 Nm

Metrics: M 3

Type: Neutral

EURO6

DIN Rail Terminal Block 6mm² Grey

Connection capacity:

- Solid cable: 0,5 mm² / 10 mm²

- Flexible cable: 0,5 mm² / 6 mm² Max. flexible with ferrule 6 mm²

Voltage: 1000 V

Intensity: 41 A

Tightening torque: 0,8 Nm

Metrics: M 3,5

Type: Line

EURO6A

DIN Rail Terminal Block 6mm² Blue

Connection capacity:

- Solid cable: 0,5 mm² / 10 mm²

- Flexible cable: 0,5 mm² / 6 mm² - Max. flexible with ferrule 6 mm²

Voltage: 1000 V

Intensity: 41 A

Tightening torque: 0,8 Nm

Metrics: M 3,5

Type: Neutral

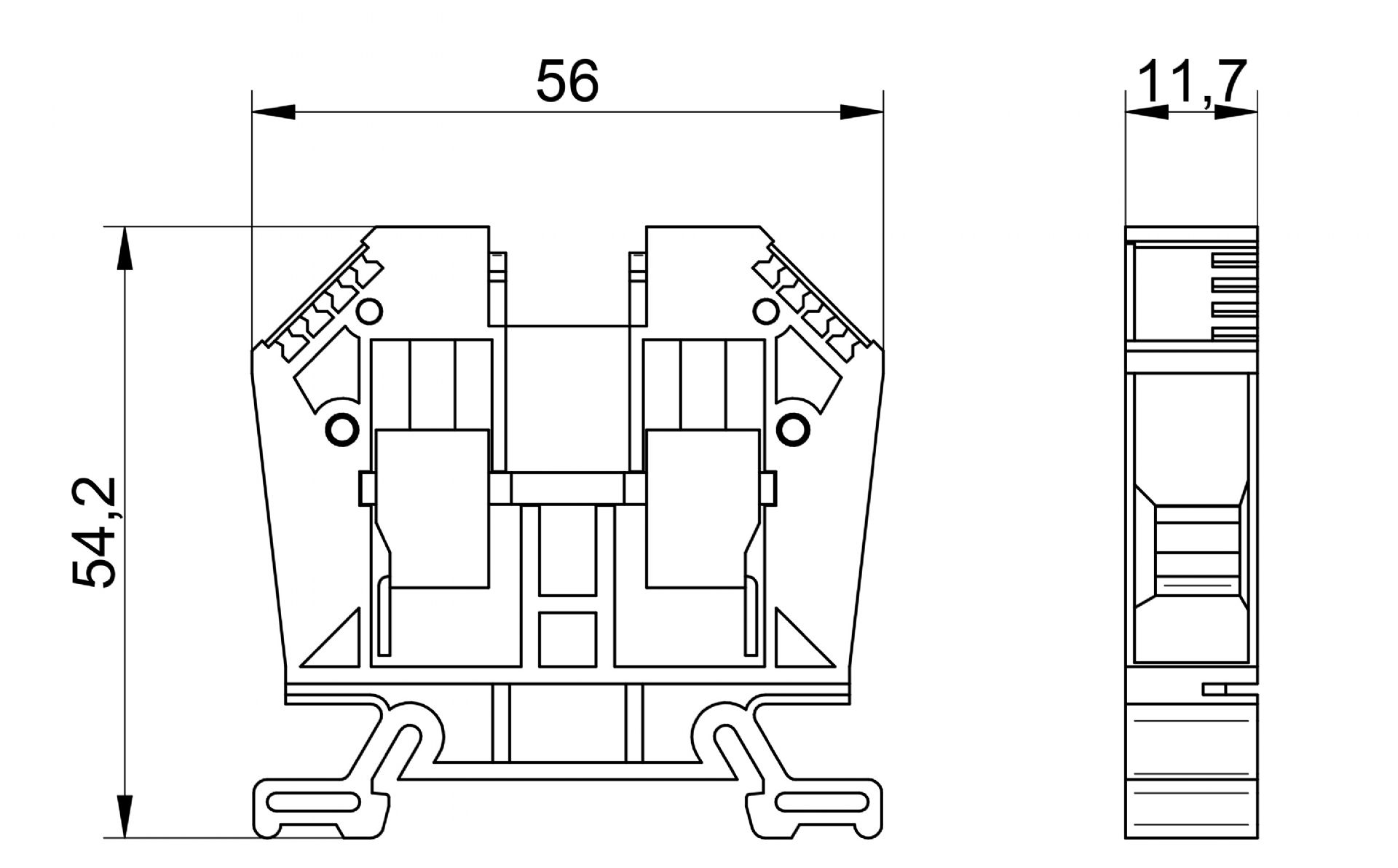

EURO10

DIN Rail Terminal Block 10mm² Grey

Connection capacity:

- Solid cable: 1,5 mm² / 16 mm²

- Flexible cable: 1,5 mm² / 10 mm²

Max. flexible with ferrule 10 mm²

Voltage: 1000 V

Intensity: 57 A

Tightening torque: 1,2 Nm

Metrics: M 4

Type: Line

EURO10A

DIN Rail Terminal Block 10mm² Blue

Connection capacity:

- Solid cable: 1,5 mm² / 16 mm²

- Flexible cable: 1,5 mm² / 10 mm²

Max. flexible with ferrule 10 mm²

Voltage: 1000 V

Intensity: 57 A

Tightening torque: 1,2 Nm

Metrics: M 4

Type: Neutral

EURO16-25

DIN Rail Terminal Block 16/25mm² Grey

Connection capacity:

- Solid cable: 1,5 mm² / 25 mm²

- Flexible cable: 1,5 mm² / 16 mm² - Max. flexible with ferrule 25 mm²

Voltage: 1000 V

Intensity: 101 A

Tightening torque: 2 Nm

Metrics: M 5

Type: Line

EURO16-25A

DIN Rail Terminal Block 16/25mm² Blue

Connection capacity:

- Solid cable: 1,5 mm² / 16 mm²

- Flexible cable: 1,5 mm² / 10 mm² - Max. flexible with ferrule 10 mm²

Voltage: 1000 V

Intensity: 101 A

Tightening torque: 2 Nm

Metrics: M 5

Type: Neutral

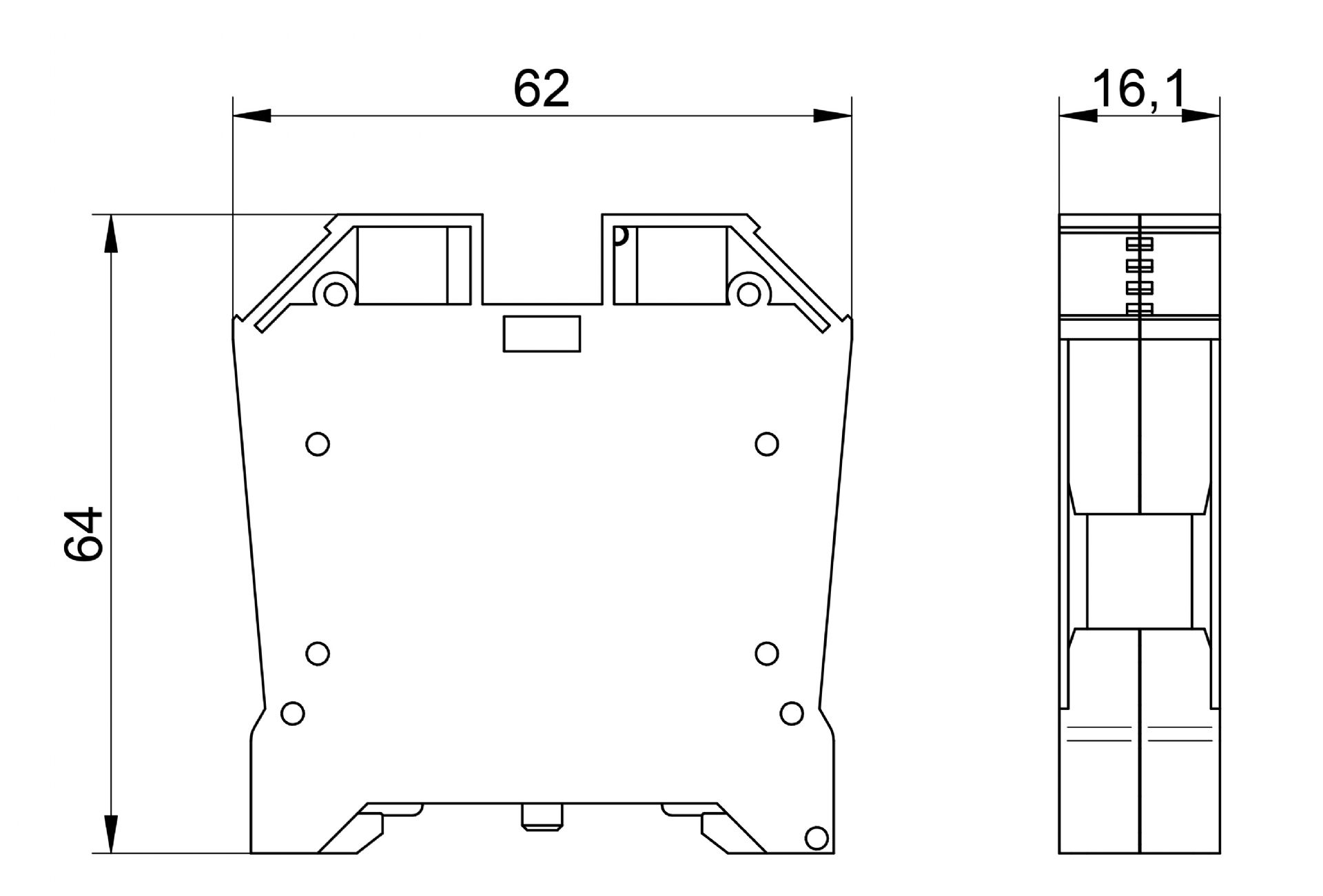

EURO35-50

DIN Rail Terminal Block 35/50mm² Grey

Connection capacity:

- Solid cable: 2,5 mm² / 50 mm²

- Flexible cable: 5,5 mm² / 50 mm²

Voltage: 1000 V

Intensity: 150 A

Tightening torque: 2,5 Nm

Metrics: M 6

Type: Line

EURO35-50A

DIN Rail Terminal Block 35/50mm² Blue

Connection capacity:

- Solid cable: 2,5 mm² / 50 mm²

- Flexible cable: 5,5 mm² / 50 mm²

Voltage: 1000 V

Intensity: 150 A

Tightening torque: 2,5 Nm

Metrics: M 6

Type: Neutral

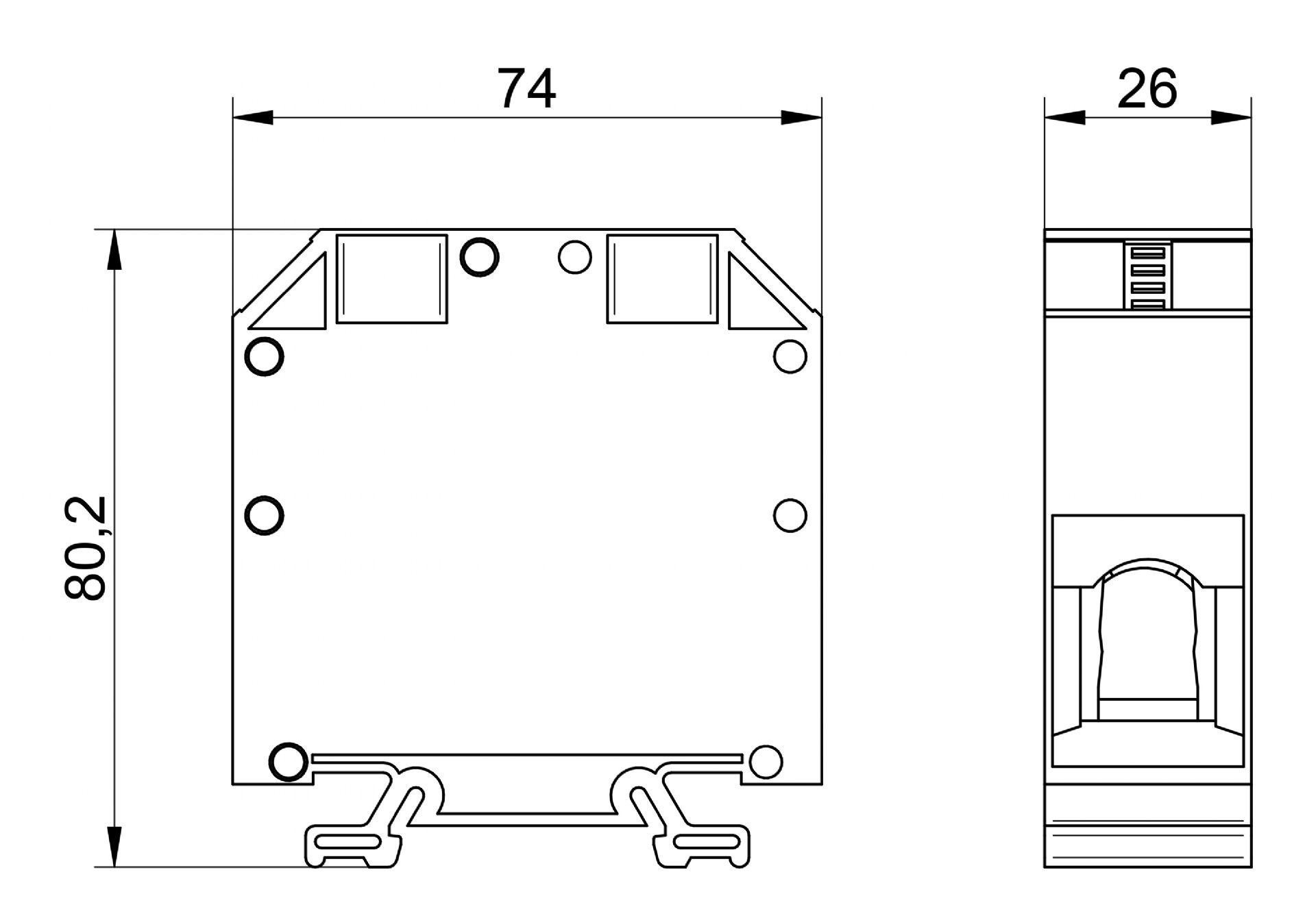

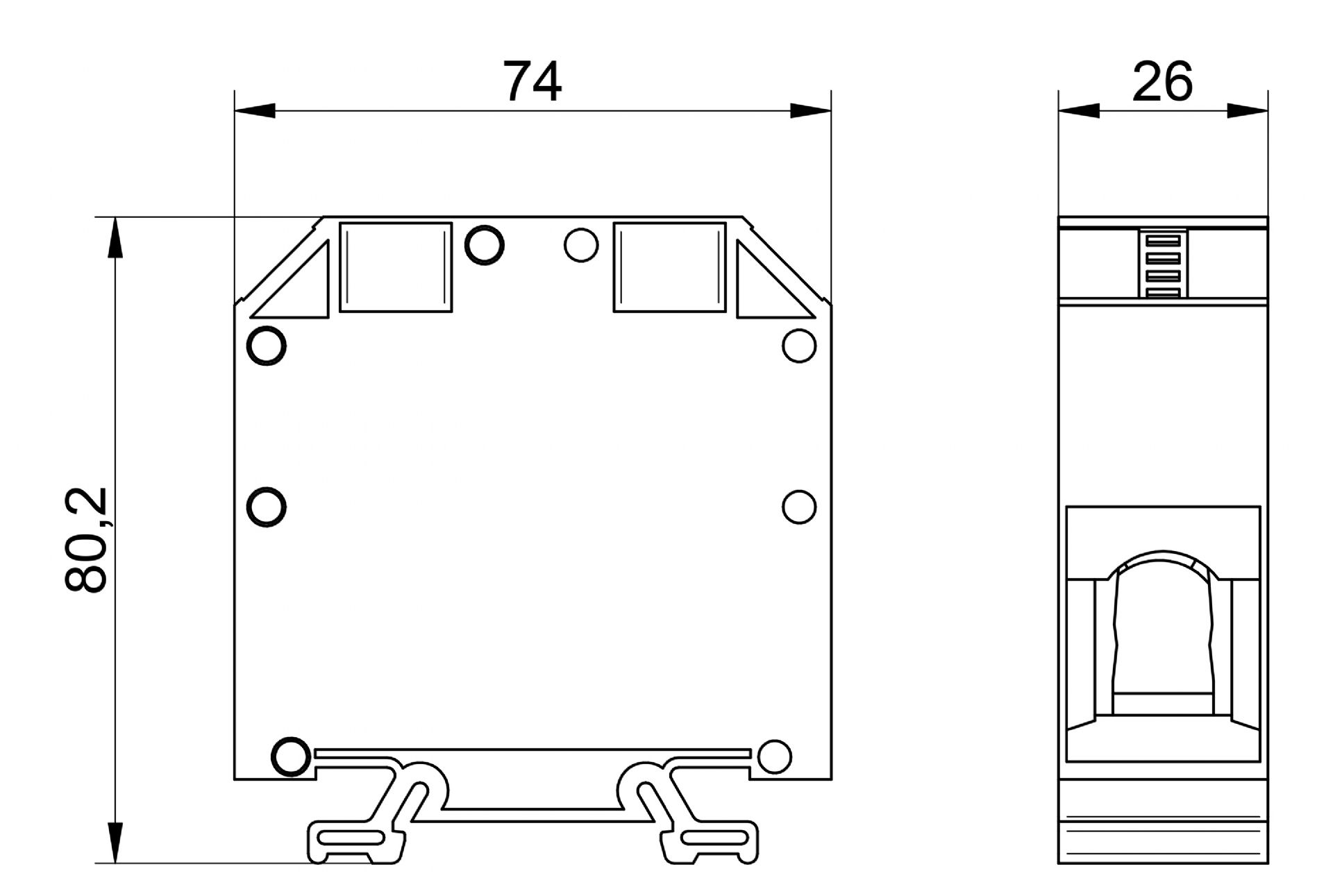

EURO70

DIN Rail Terminal Block 70mm² Grey

Connection capacity:

- Solid cable: 25 mm² / 70 mm²

- Flexible cable: 25 mm² / 70 mm²

Voltage: 1000 V

Intensity: 192 A

Tightening torque: 4,5 Nm

Metrics: M 8 Ch 6

Type: Line

EURO70A

DIN Rail Terminal Block 70mm² Blue

Connection capacity:

- Solid cable: 25 mm² / 70 mm²

- Flexible cable: 25 mm² / 70 mm²

Voltage: 1000 V

Intensity: 192 A

Tightening torque: 4,5 Nm

Metrics: M 8 Ch 6

Type: Neutral

EURO95

DIN Rail Terminal Block 95mm² Grey

Connection capacity:

- Solid cable: 25 mm² / 95 mm²

- Flexible cable: 25 mm² / 95 mm²

Voltage: 1000 V

Intensity: 192 A

Tightening torque: 4,5 Nm

Metrics: M 8 Ch 6

Type: Line

EURO95A

DIN Rail Terminal Block 95mm² Blue

Connection capacity:

- Solid cable: 25 mm² / 95 mm²

- Flexible cable: 25 mm² / 95 mm²

Voltage: 1000 V

Intensity: 192 A

Tightening torque: 4,5 Nm

Metrics: M 8 Ch 6

Type: Neutral

EUROE4

DIN Rail Earth Terminal Block 4mm²

Connection capacity:

- Solid cable: 0,5 mm² / 6 mm²

- Flexible cable: 0,5 mm² / 4 mm² - Max. flexible with ferrule 4 mm²

Tightening torque: 0,6 Nm

Metrics: M 3/ M 3,5

Type: Earth

EUROE6

DIN Rail Earth Terminal Block 6mm²

Connection capacity:

- Solid cable: 0,5 mm² / 6 mm²

- Flexible cable: 0,5 mm² / 6 mm² - Max. flexible with ferrule 6 mm²

Tightening torque: 0,8/0,6 Nm

Metrics: M 3 /M 3,5

Type: Earth

EUROE10

DIN Rail Earth Terminal Block 10mm²

Connection capacity:

- Solid cable: 1,5 mm² / 10 mm²

- Flexible cable: 1,5 mm² / 10 mm² - Max. flexible with ferrule 10 mm²

Tightening torque: 1,2/0,6 Nm

Metrics: M 4 /M 3,5

Type: Earth

EUROE25

DIN Rail Earth Terminal Block 25mm²

Connection capacity:

- Solid cable: 1,5 mm² / 25 mm²

- Flexible cable: 1,5 mm² / 25 mm² - Max. flexible with ferrule 16 mm²

Tightening torque: 2 / 0,8 Nm

Metrics: M 5 /M 3,5

Type: Earth

EUROE50

DIN Rail Earth Terminal Block 50mm²

Connection capacity:

- Solid cable: 1,5 mm² / 50 mm²

- Flexible cable: 1,5 mm² / 35 mm² - Max. flexible with ferrule 35 mm²

Tightening torque: 2,5 Nm / 0

Metrics: M 6 / M 4

Type: Earth

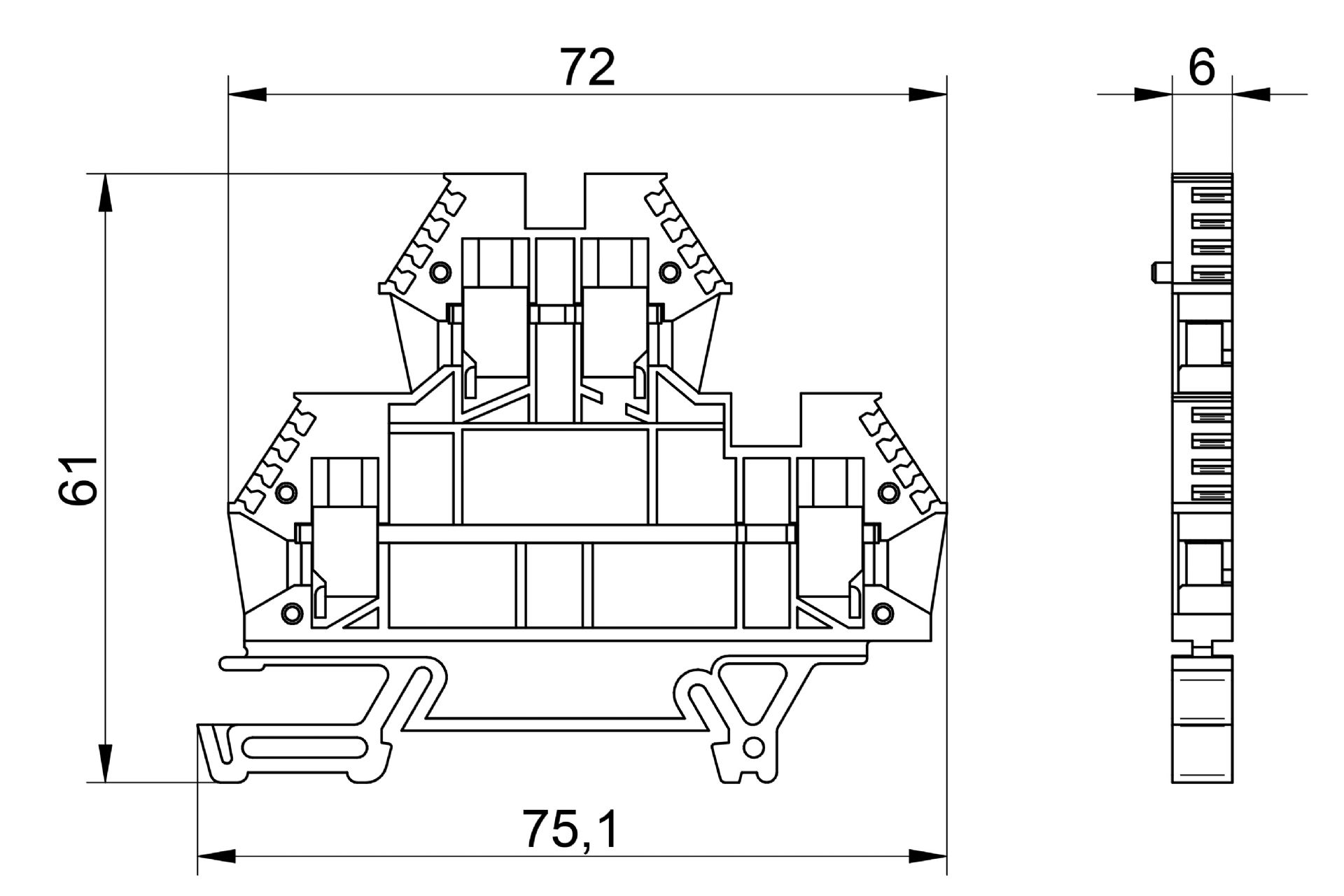

EUROD4

DIN Rail Terminal Block Double level 4mm²

Connection capacity:

- Solid cable: 0,5 mm² / 6 mm²

- Flexible cable: 0,5 mm² / 4 mm² - Max. flexible with ferrule 4 mm²

Voltage: 1000 V

Intensity: 32 A

Tightening torque: 0,6 Nm

Metrics: M 3

Type: Line

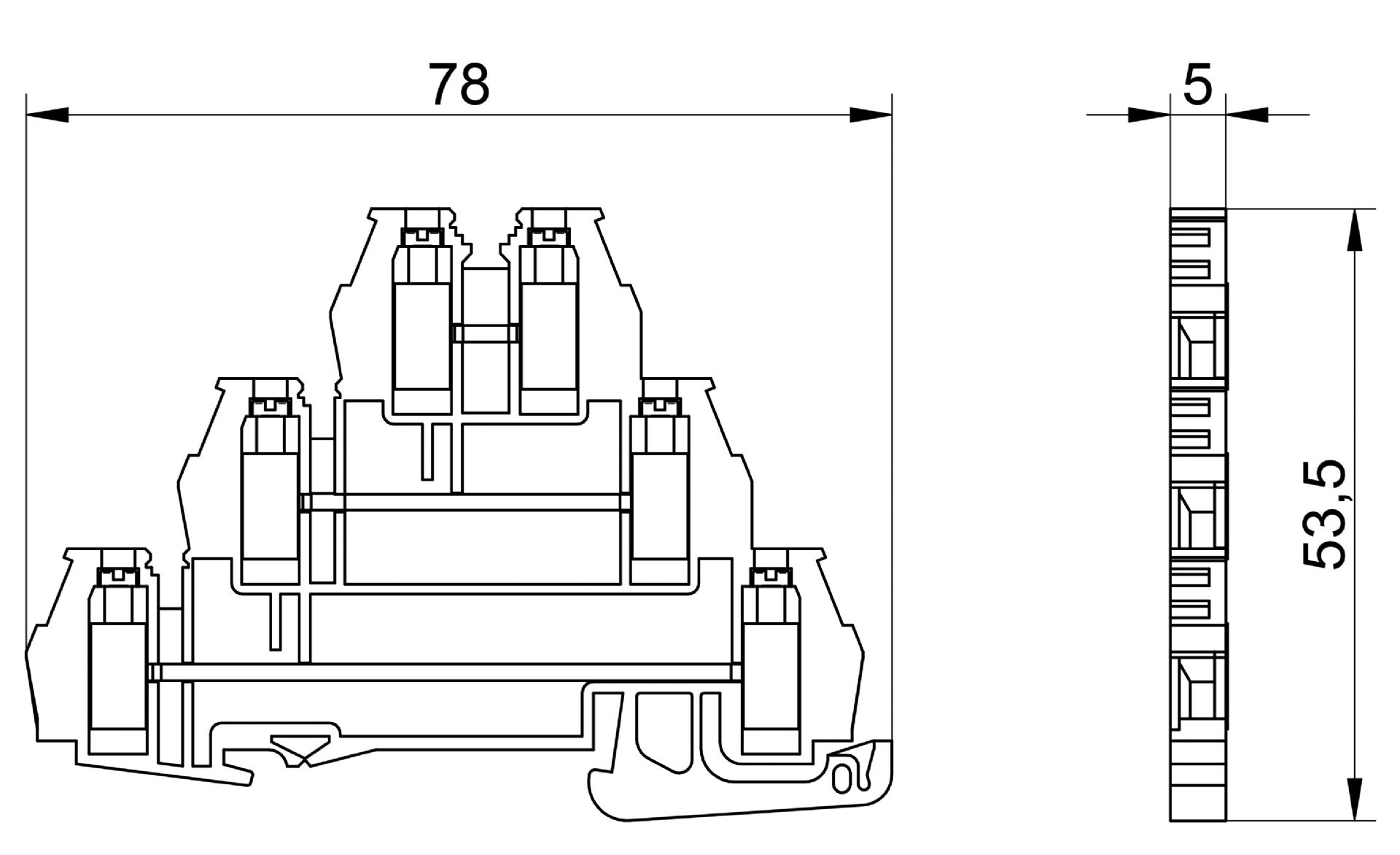

EUROW2,5

DIN Rail Three-Tier 2,5mm²

Connection capacity:

- Solid cable: 0,5 mm² / 2,5 mm²

- Flexible cable: 0,5 mm² / 2,5 mm² - Max. flexible with ferrule 1,5 mm²

Voltage: 250 V

Intensity: 32 A

Tightening torque: 0,5 Nm

Metrics: M 3

Type: Line

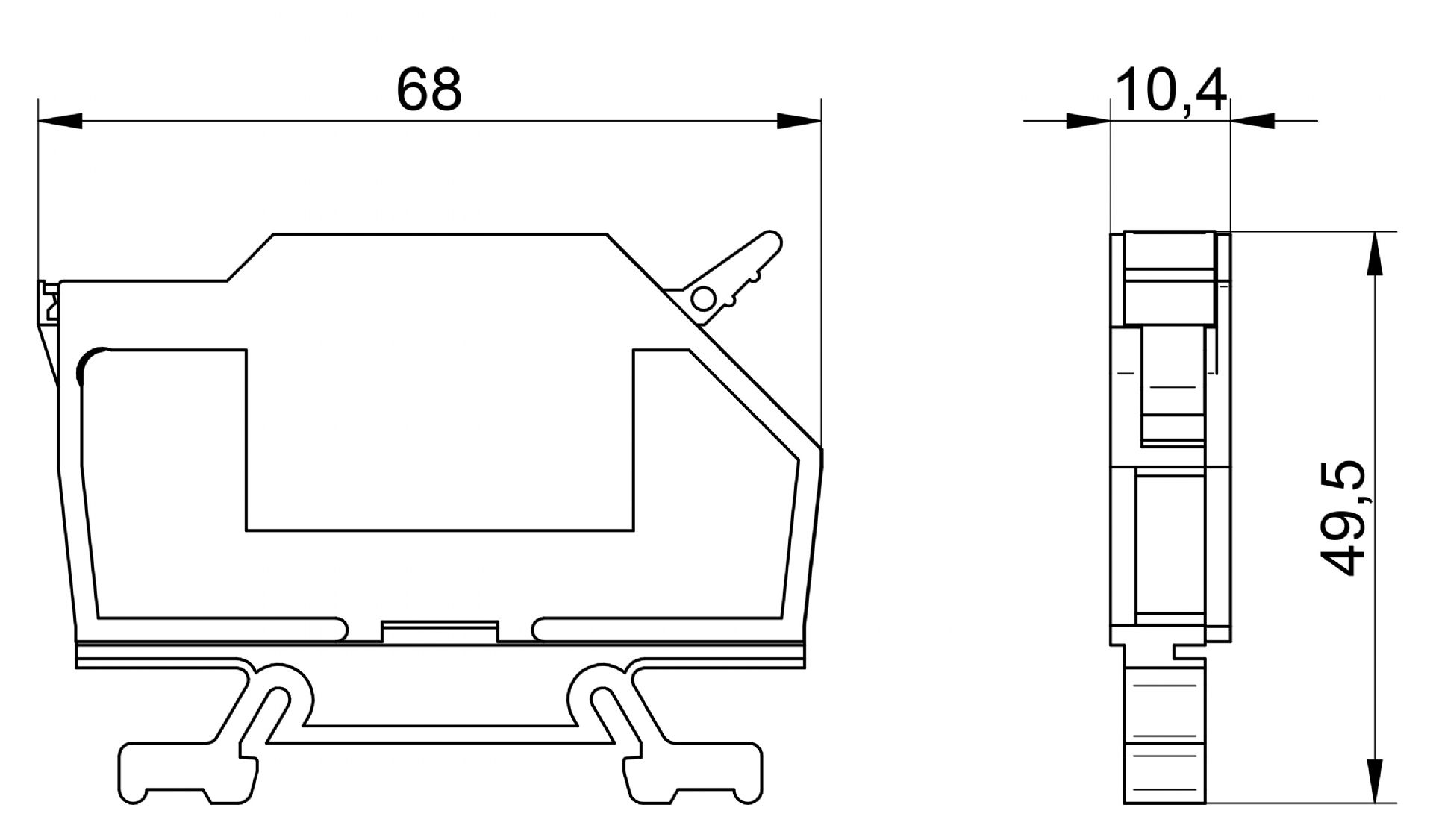

EUROS4

DIN Rail Fuse terminal block 4mm²

Connection capacity:

- Solid cable: 0,5 mm² / 6 mm²

- Flexible cable: 0,5 mm² / 4 mm² - Max. flexible with ferrule 4 mm²

Voltage: 500 V

Intensity: 30 A

Tightening torque: 0,6 Nm

Metrics: M 3

Type: Line

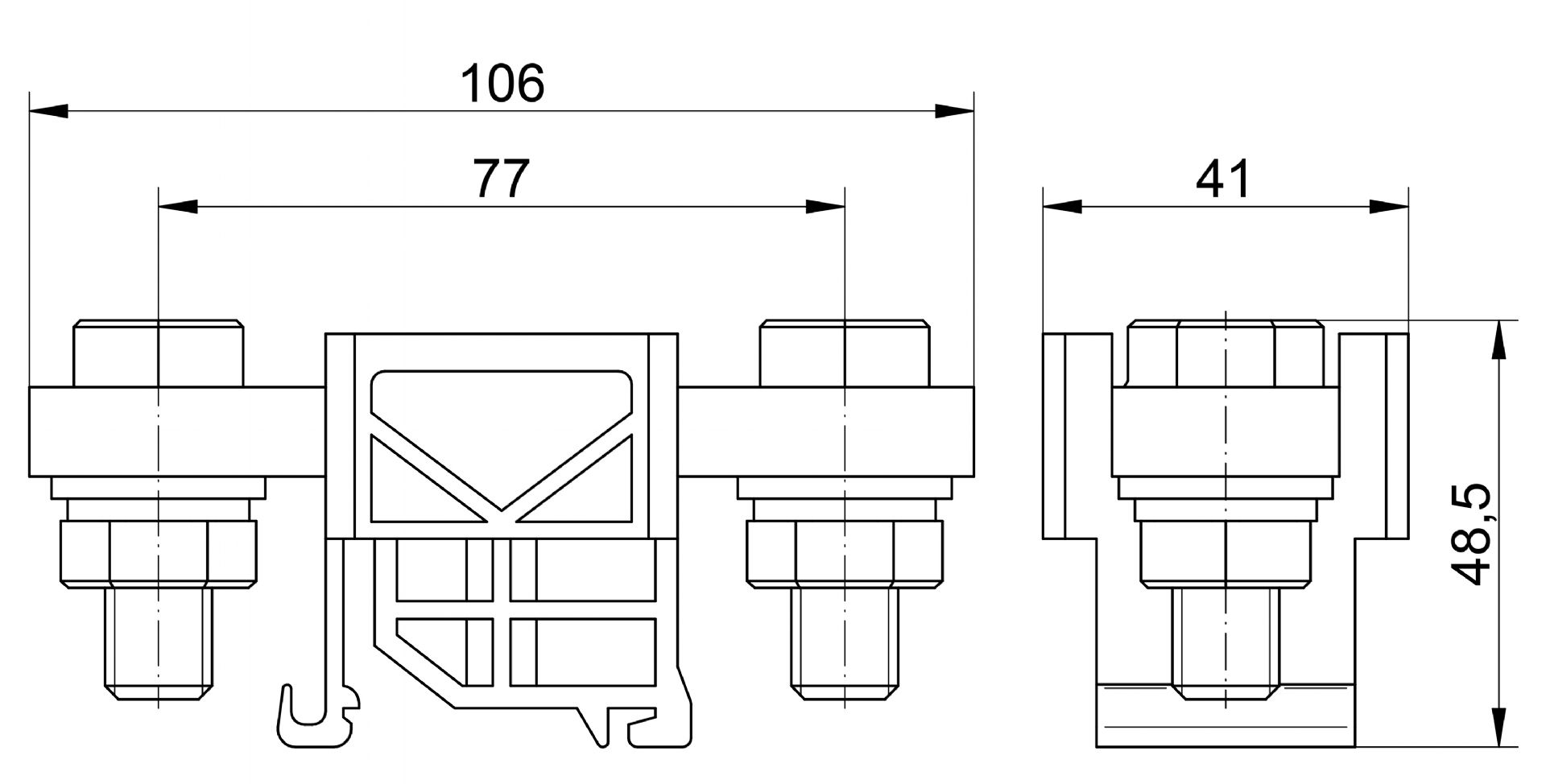

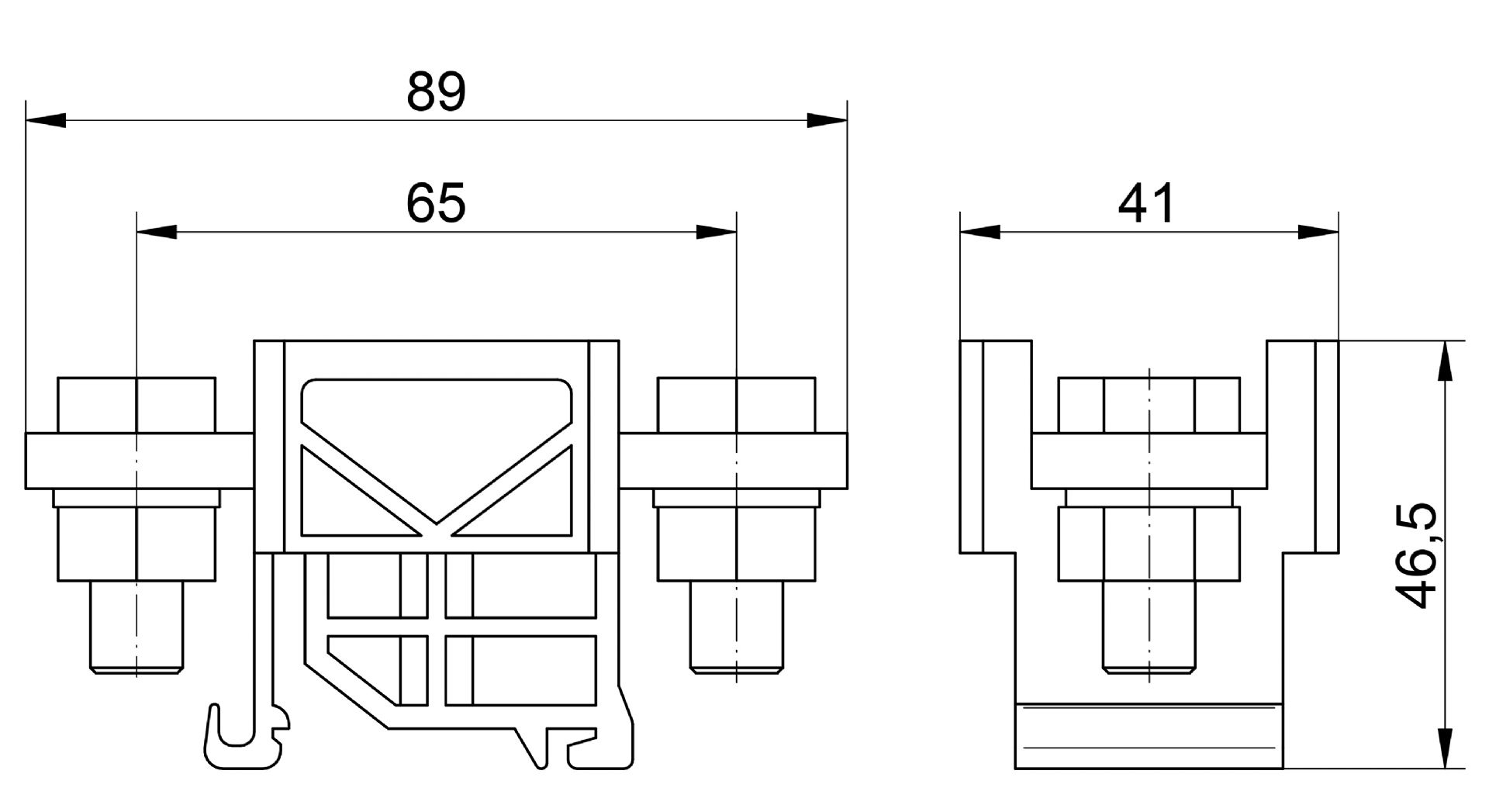

EUROPT95

High current line-up terminal block 95mm²

Connection capacity:

- Solid cable: 95 mm²

- Flexible cable: 95 mm²

Voltage: 1000 V

Constructive:

- Connection by ferrule.

Intensity: 232 A

Metrics: M 8 Ch 13

Type: Line

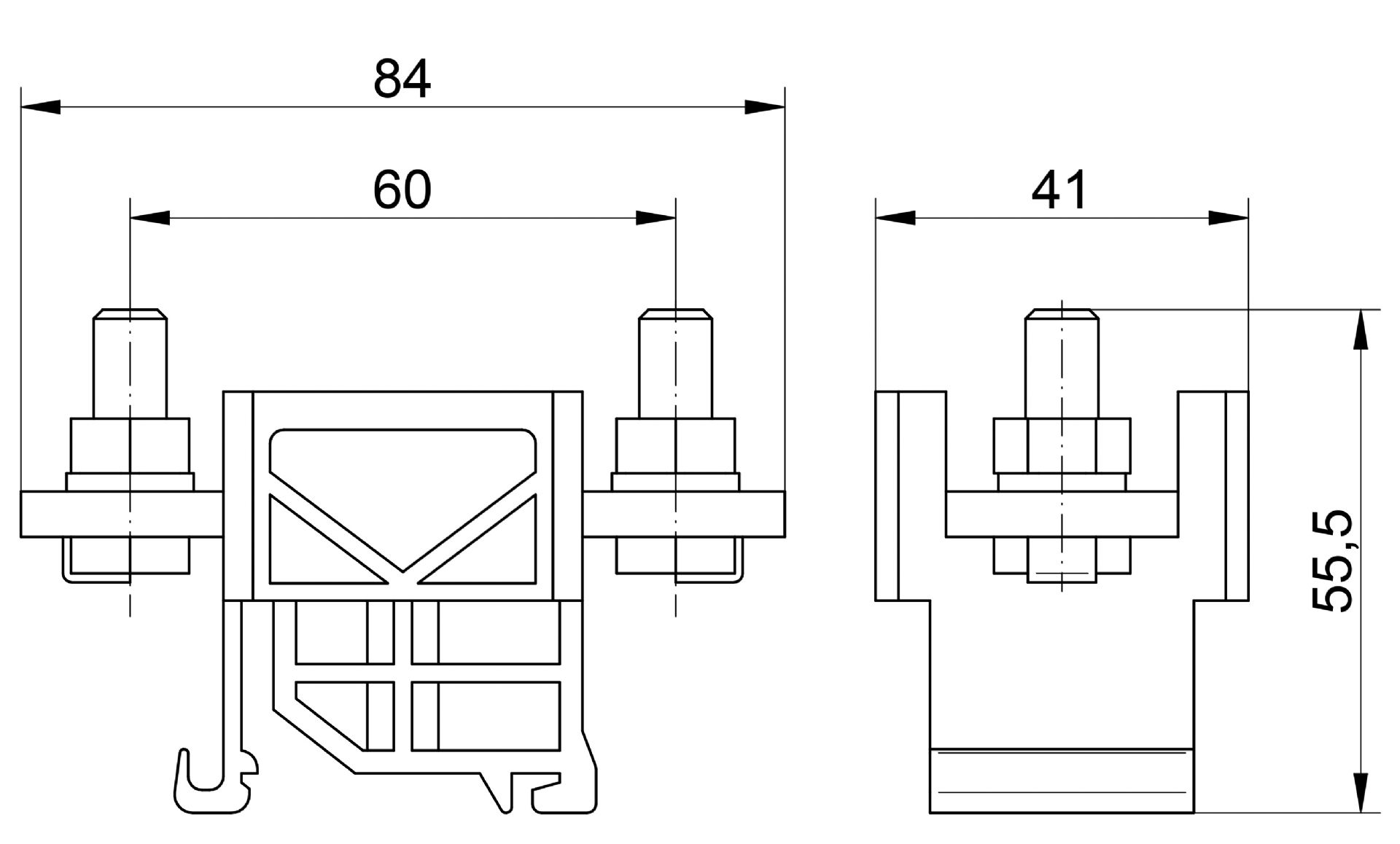

EUROPT150

High current line-up terminal block 150mm²

Connection capacity:

- Solid cable: 150 mm²

- Flexible cable: 150 mm²

Voltage: 1000 V

Constructive:

- Connection by ferrule.

Intensity: 309 A

Metrics: M 10 Ch 17

Type: Line

EUROPT240

High current line-up terminal block 240mm²

Connection capacity:

- Solid cable: 240 mm²

- Flexible cable: 240 mm²

Voltage: 1000 V

Constructive:

- Connection by ferrule.

Intensity: 415 A

Metrics: M 112 Ch19

Type: Line

ACCESSORIES

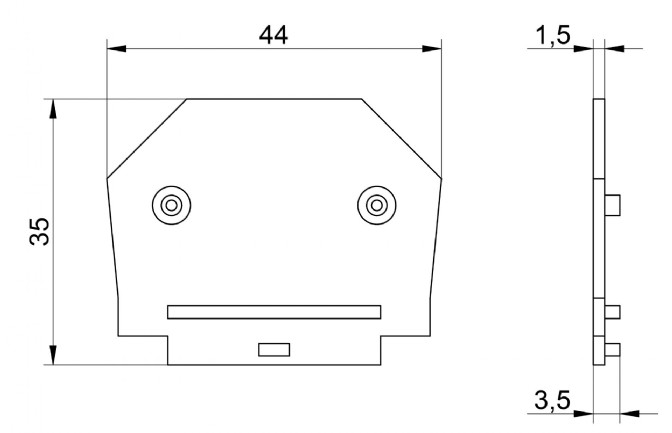

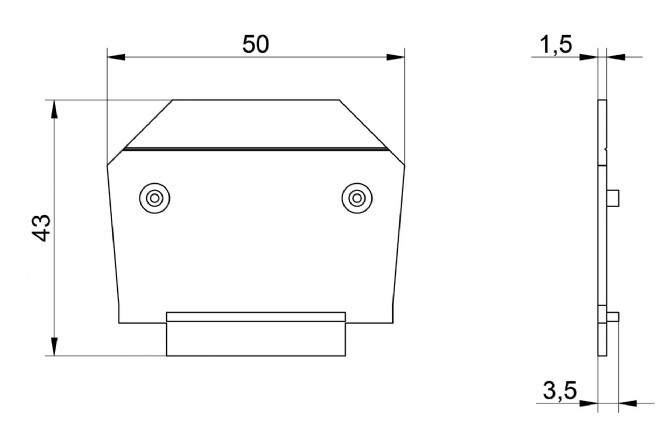

Placa 2,5-4

End plate EURO 2,5-4

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails.
- Fixing by screw.

Type: Placa

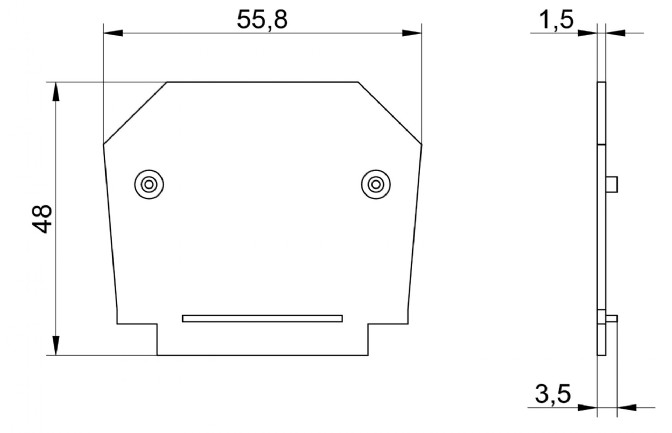

Placa 6-10

End plate EURO 6-10

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails.
- Fixing by screw.

Type: Placa

Placa 16-25

End plate EURO 16-25

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails.
- Fixing by screw.

Type: Placa

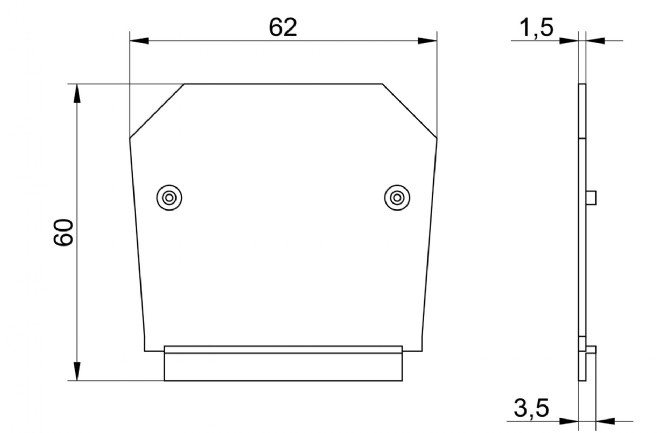

Placa 35-50

End plate EURO 35-50

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails.
- Fixing by screw.

Type: Placa

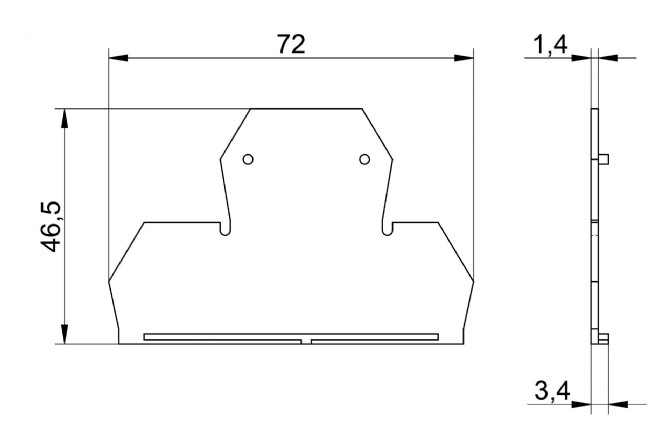

Placa D4

End plate EURO D4

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails.
- Fixing by screw.

Type: Placa

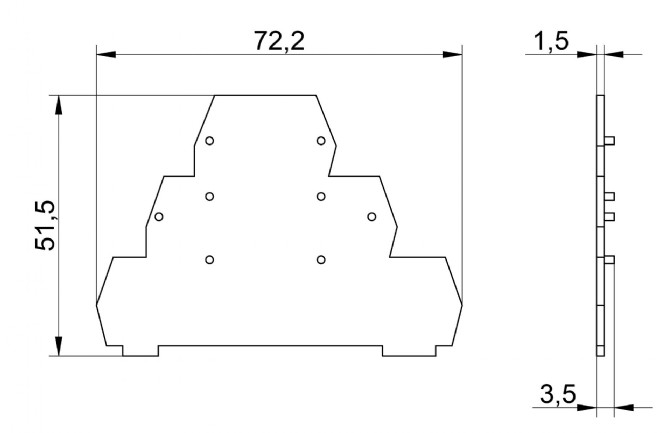

Placa W 2,5

End plate EURO W 2,5

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails.
- Fixing by screw.

Type: Placa

Placa PT

End plate EURO PT

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails.
- Fixing by screw.

Type: Placa

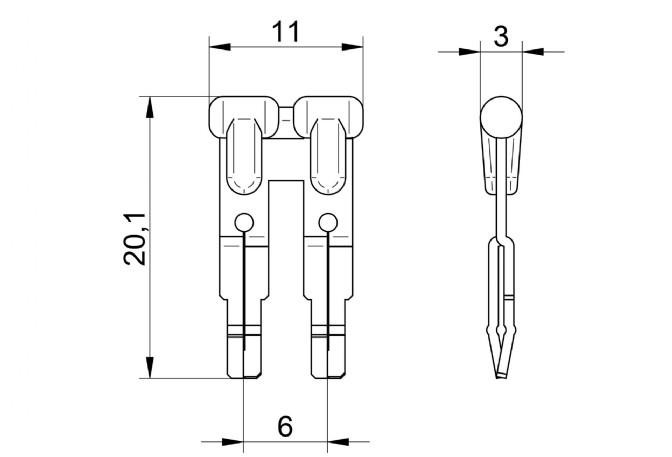

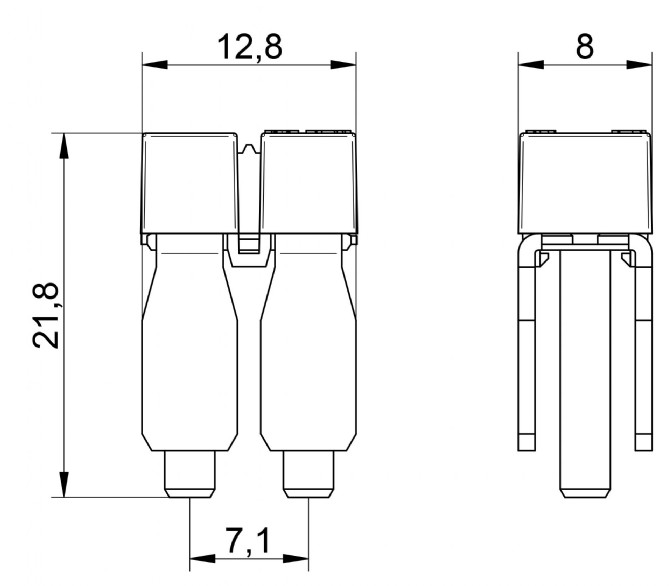

EURO J 2,5 - 2P

Plug-in insulated jumper 2 poles EURO 2,5

Type: Plug-in insulated jumper

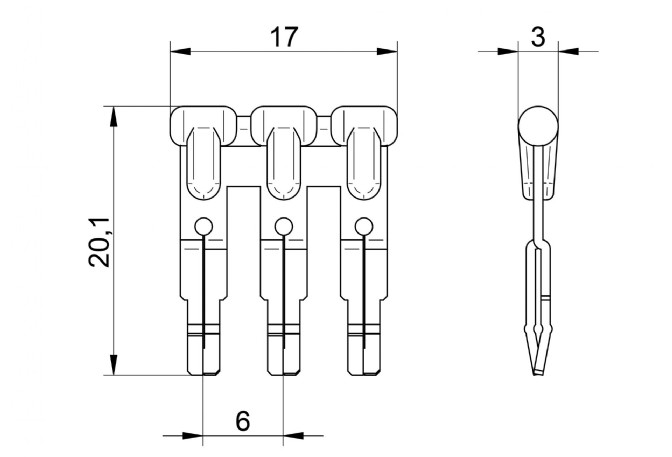

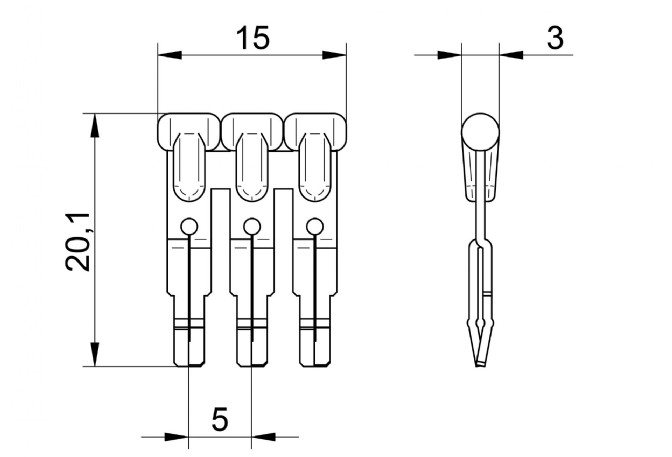

EURO J 2,5 - 3P

Plug-in insulated jumper 3 poles EURO 2,5

Type: Plug-in insulated jumper

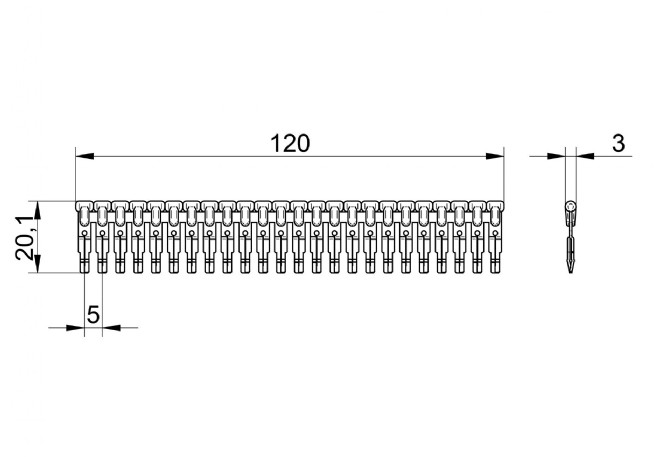

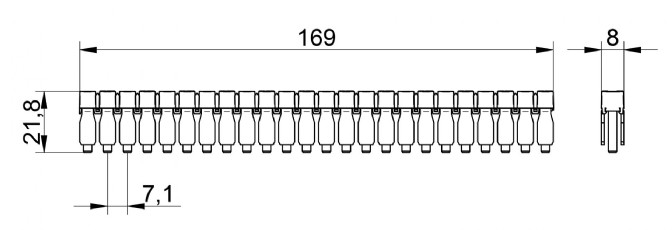

Euro J 2,5 - 24P

Plug-in insulated jumper 24 poles EURO 2,5

Type: Plug-in insulated jumper

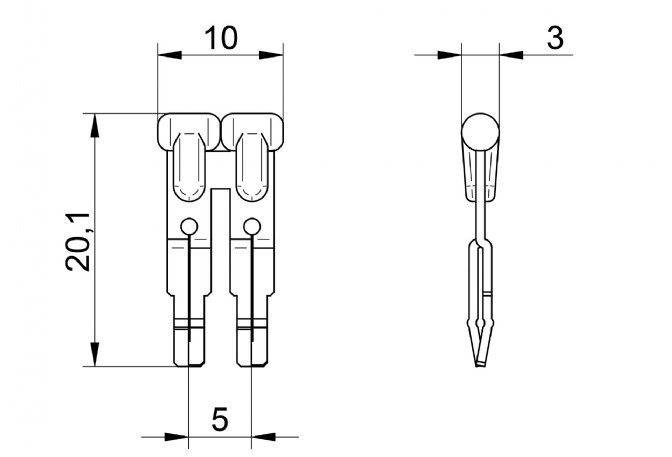

Euro J 4 - 2P

Plug-in insulated jumper 2 poles EURO 4

Type: Plug-in insulated jumper

Euro J 4 - 3P

Plug-in insulated jumper 3 poles EURO 4

Type: Plug-in insulated jumper

Euro J 4 - 24P

Plug-in insulated jumper 24 poles EURO 4

Type: Plug-in insulated jumper

Euro J 6 - 2P

Plug-in insulated jumper 2 poles EURO 6

Type: Plug-in insulated jumper

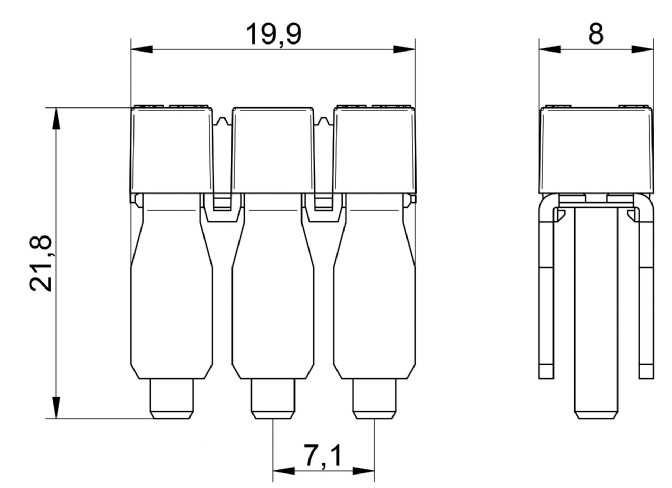

Euro J 6 - 3P

Plug-in insulated jumper 3 poles EURO 6

Type: Plug-in insulated jumper

Euro J 6 - 24P

Plug-in insulated jumper 24 poles EURO 6

Type: Plug-in insulated jumper

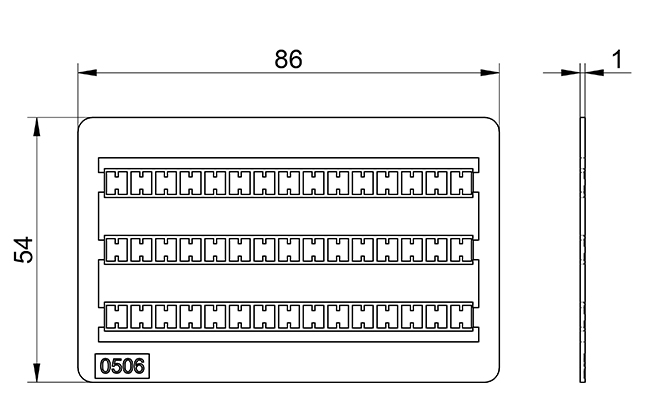

ET

Tags. 5 tags per blíster.

Constructive:

- Marking tags (printing upon request).

Type: Tag

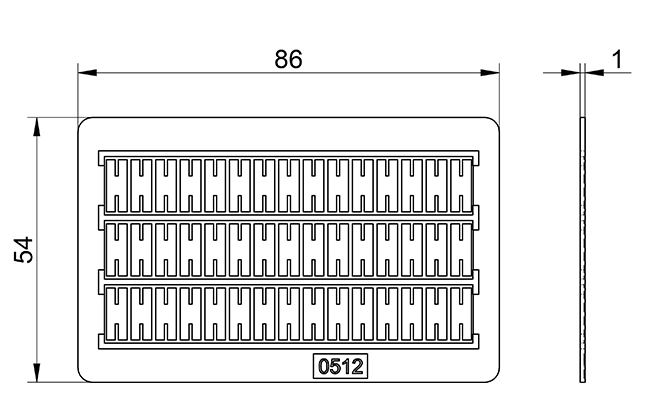

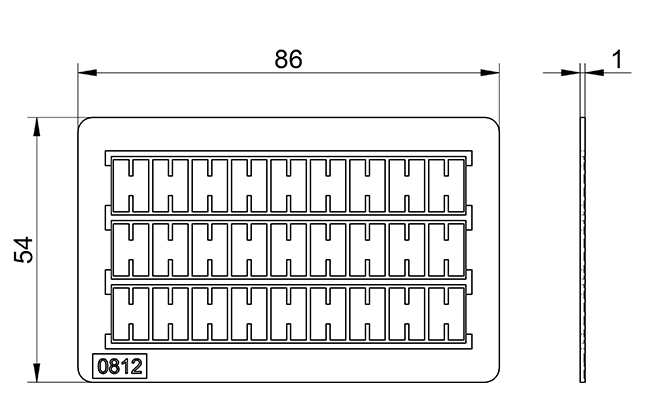

ET-G

Big tag. 20 tags per blister.

Constructive:

- Marking tags (printing upon request).

Type: Tag

TF-R

Push-in end block

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails. Fixing by screw.

Type: End stop

TF-T

End block by screw

Constructive:

- For preventing movement of components along the rail. For symmetric and asymmetric rails. Fixing by screw.

Type: End stop
