Push-in fast connectors 3100

Push-in Fast

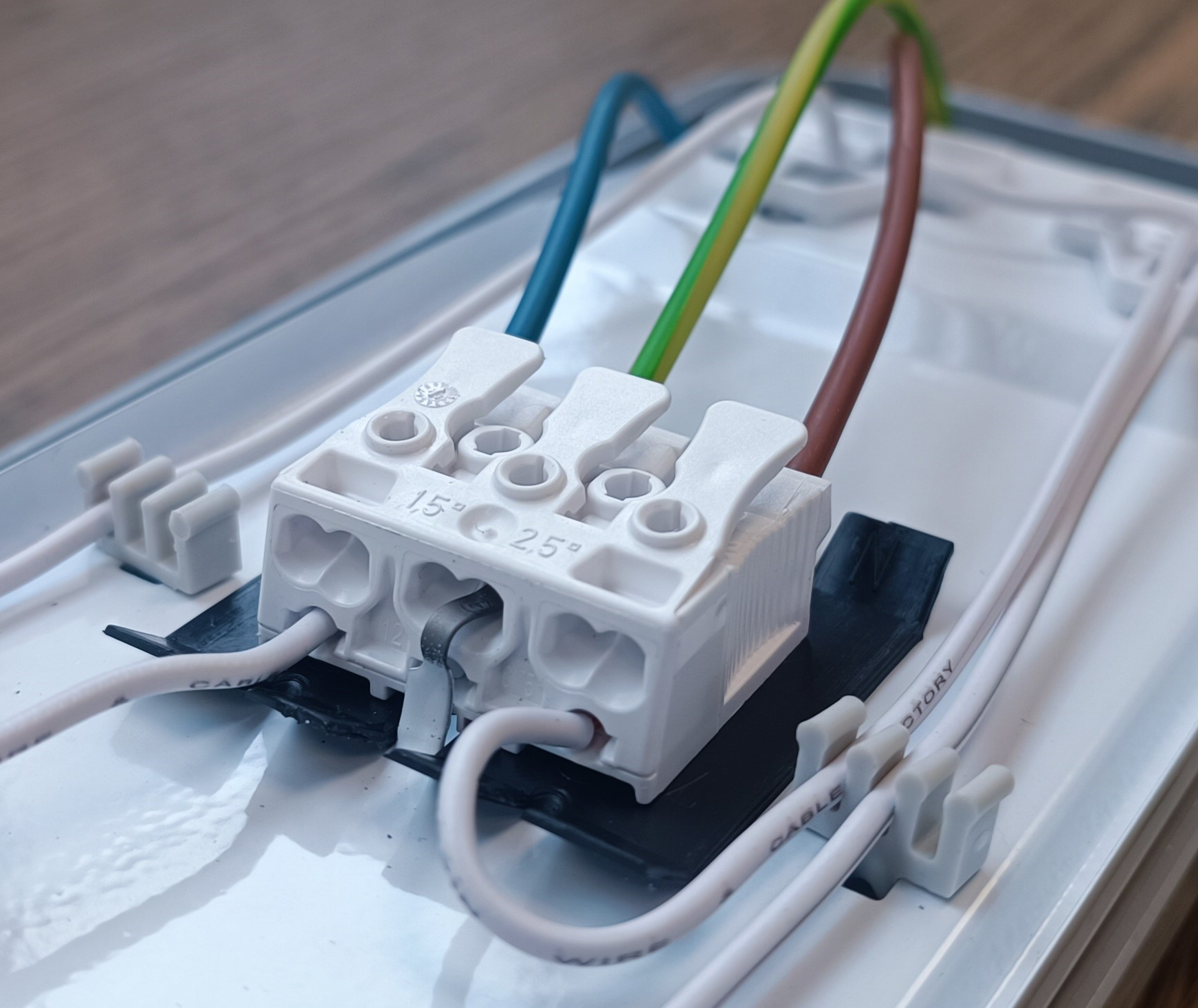

Push-in fast connectors used as component in lighting and electrical devices.

Raw materials

- Moulding: polyamide 6.6, cream colour. V0 (according to UL94).
- Insert: steel.

Constructive characteristics

- Availability from 2 to 5 poles.
- Three diferent types of earthing.
- Standard 4 poles model has the earth in the second pole.
- Marking on request.
- Models with or without fixing pins.
- Halogen free products.
- Comply with clauses 4.7 and 11.2 of UNE EN 60598/1.
- Glow-wire test 960ºC according to EN 60695-2-11.
- According to clause 4.7 UNE-EN 60598-1. Luminaries. General requirements and test.

3100 Series

Screw-less connectors on both appliance and installation sides used for making fast connection and disconnection.

Compatible with automatic assembly robots.

Printing upon request.

Rapid, screw and clamping earth tag.

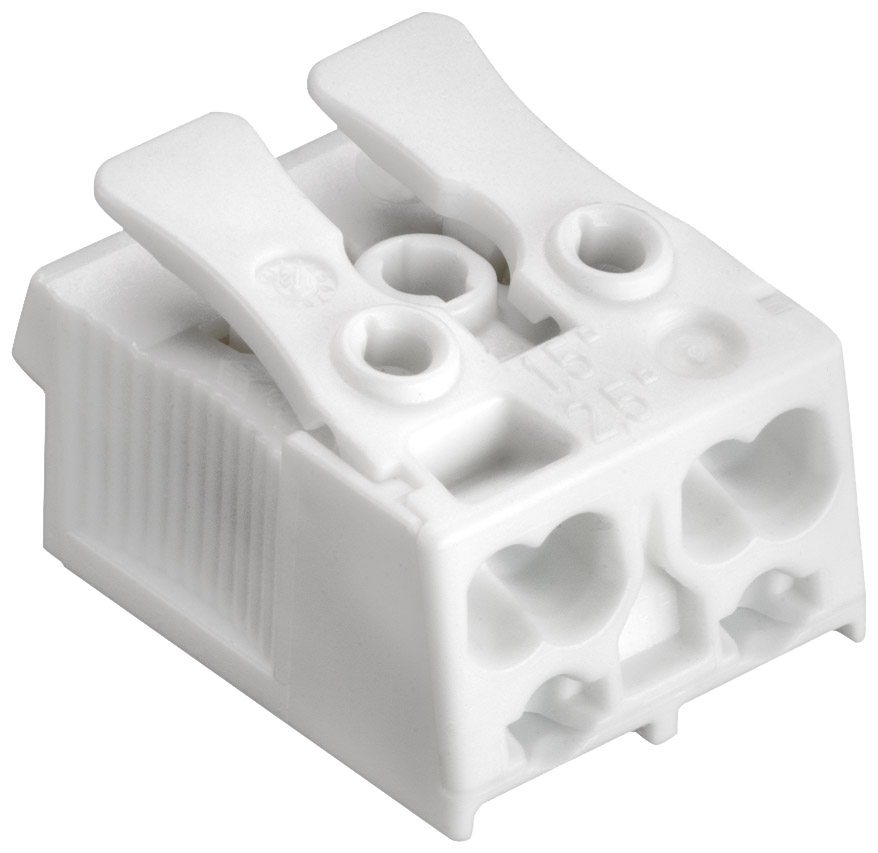

3102

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 2

Pin: NO

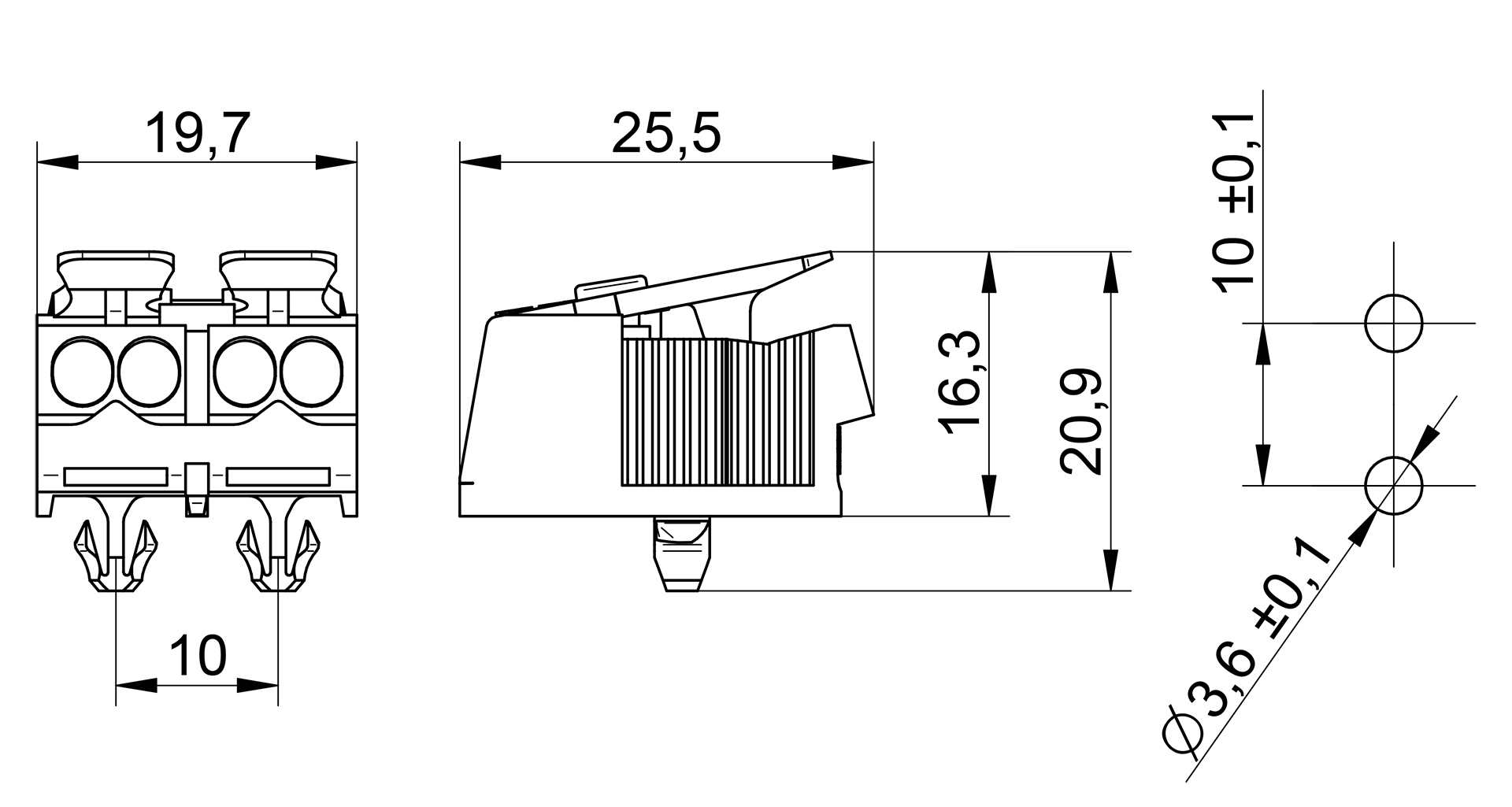

3102 A

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 2

Pin: YES

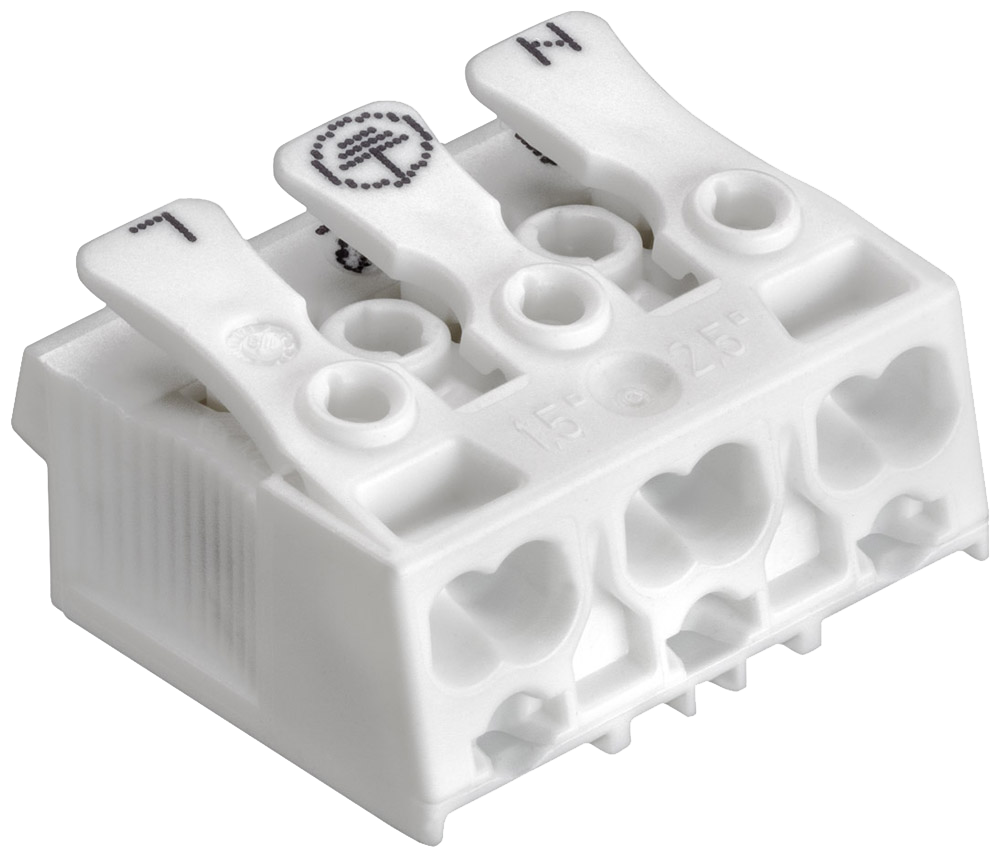

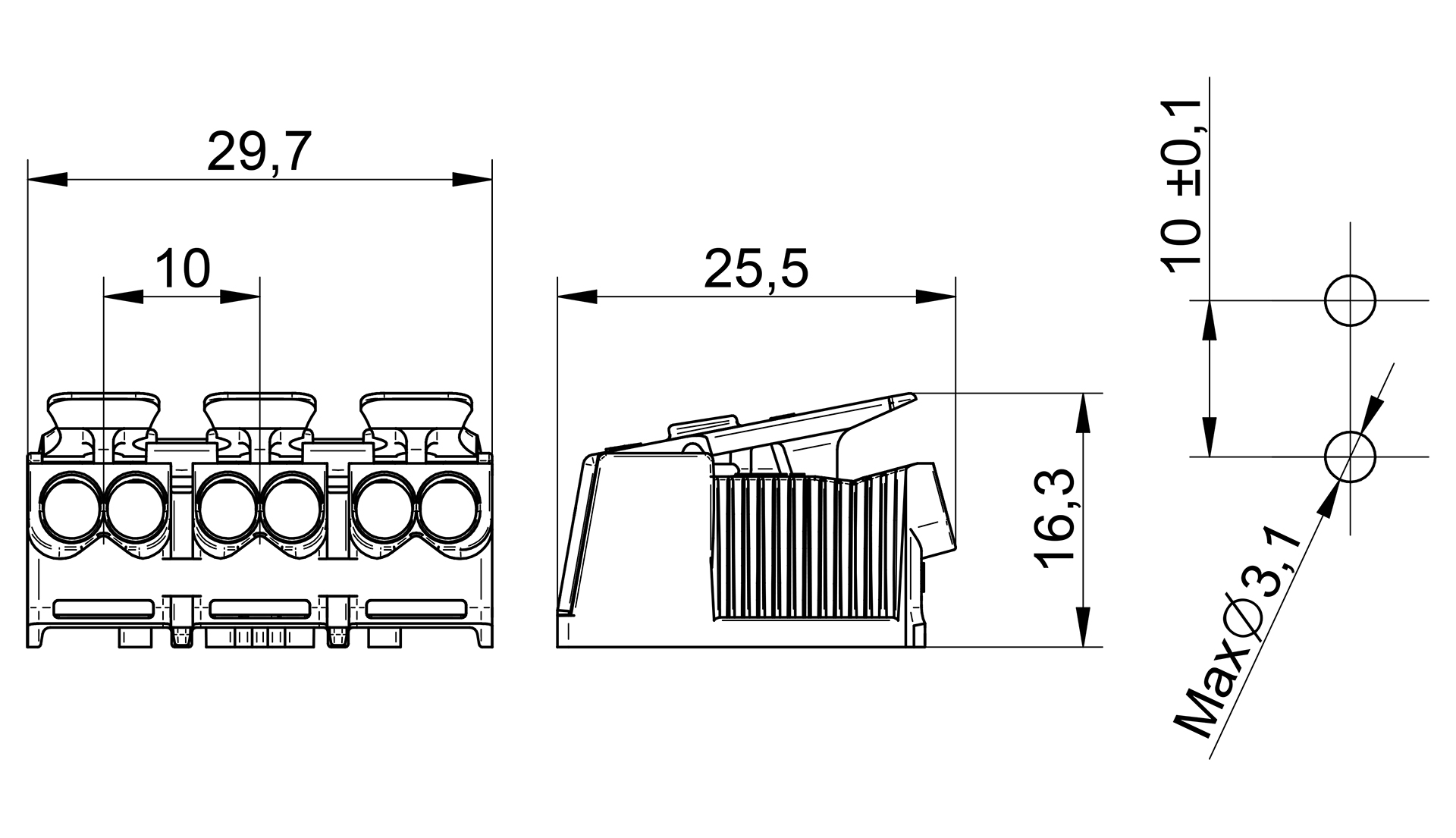

3103

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Pin: NO

3103 TA

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.
- Campling earth tag.

Intensity: 24 A

Poles: 3

Earth: clamping earth tag

Pin: NO

3103 TI

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Earth: rapid earth tag

Pin: NO

3103 TT

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Earth: screw earth tag

Pin: NO

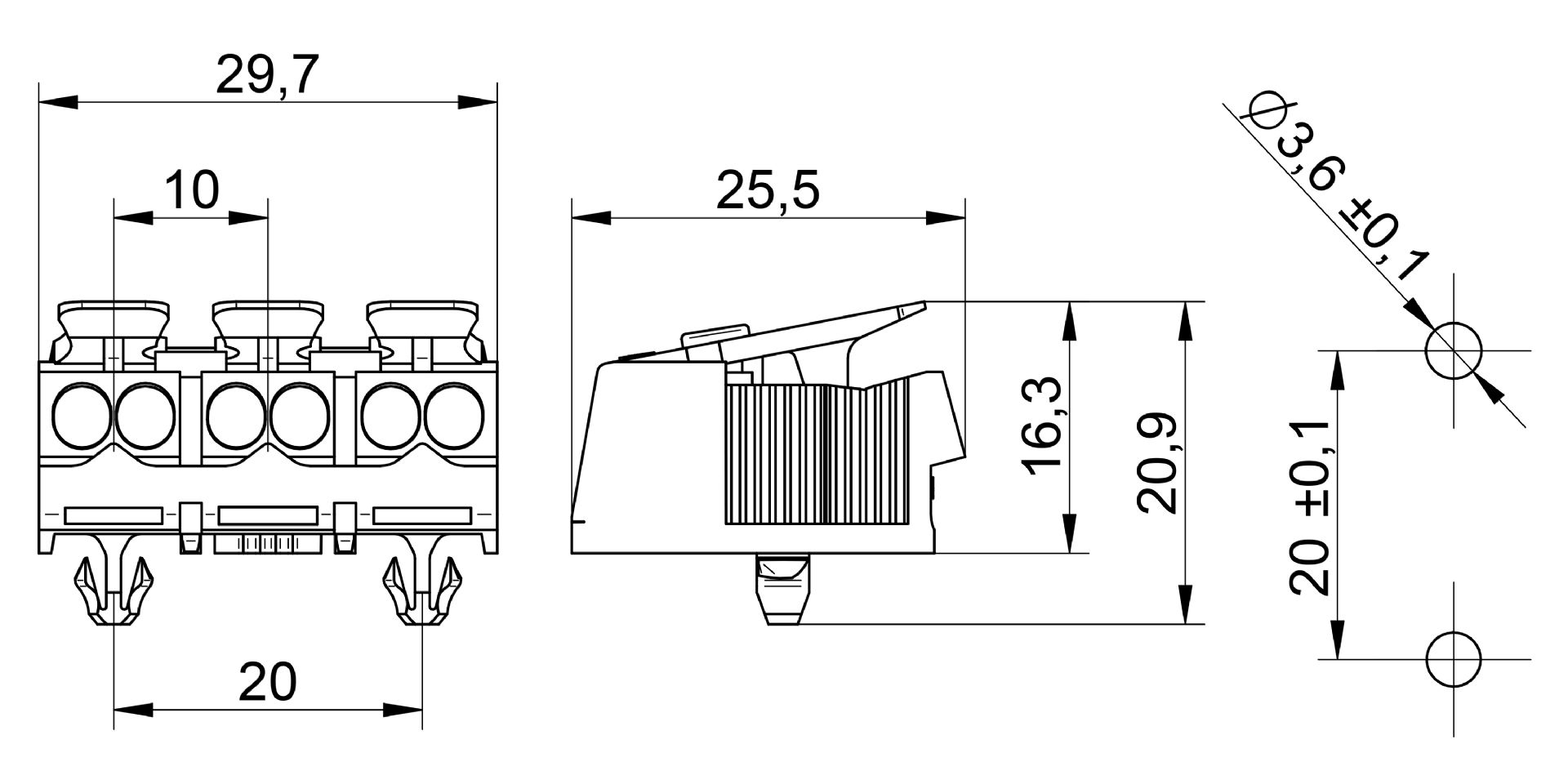

3103 A

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Pin: YES

3103 A TA

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Earth: clamping earth tag

Pin: YES

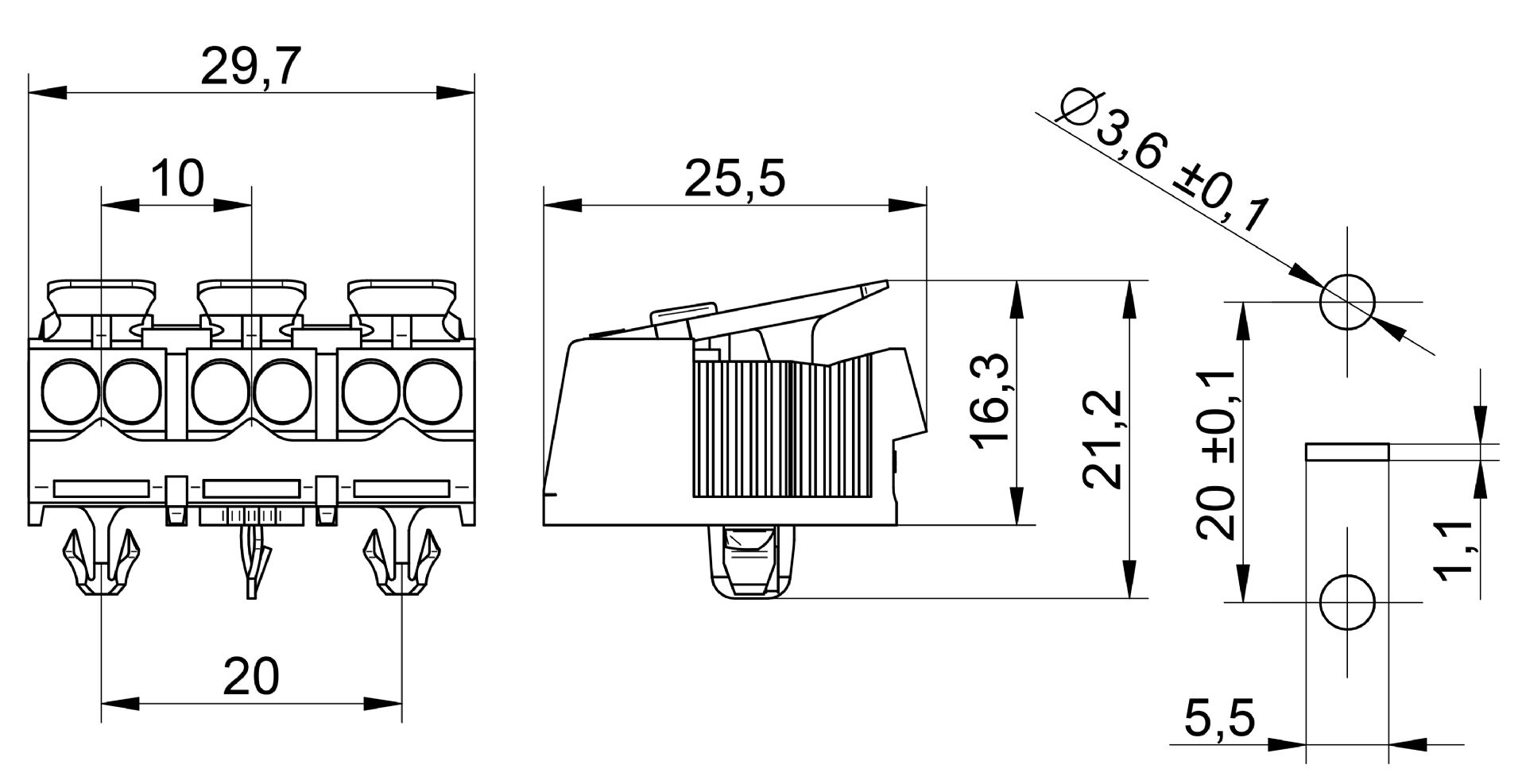

3103 A TI

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Earth: rapid earth tag

Pin: YES

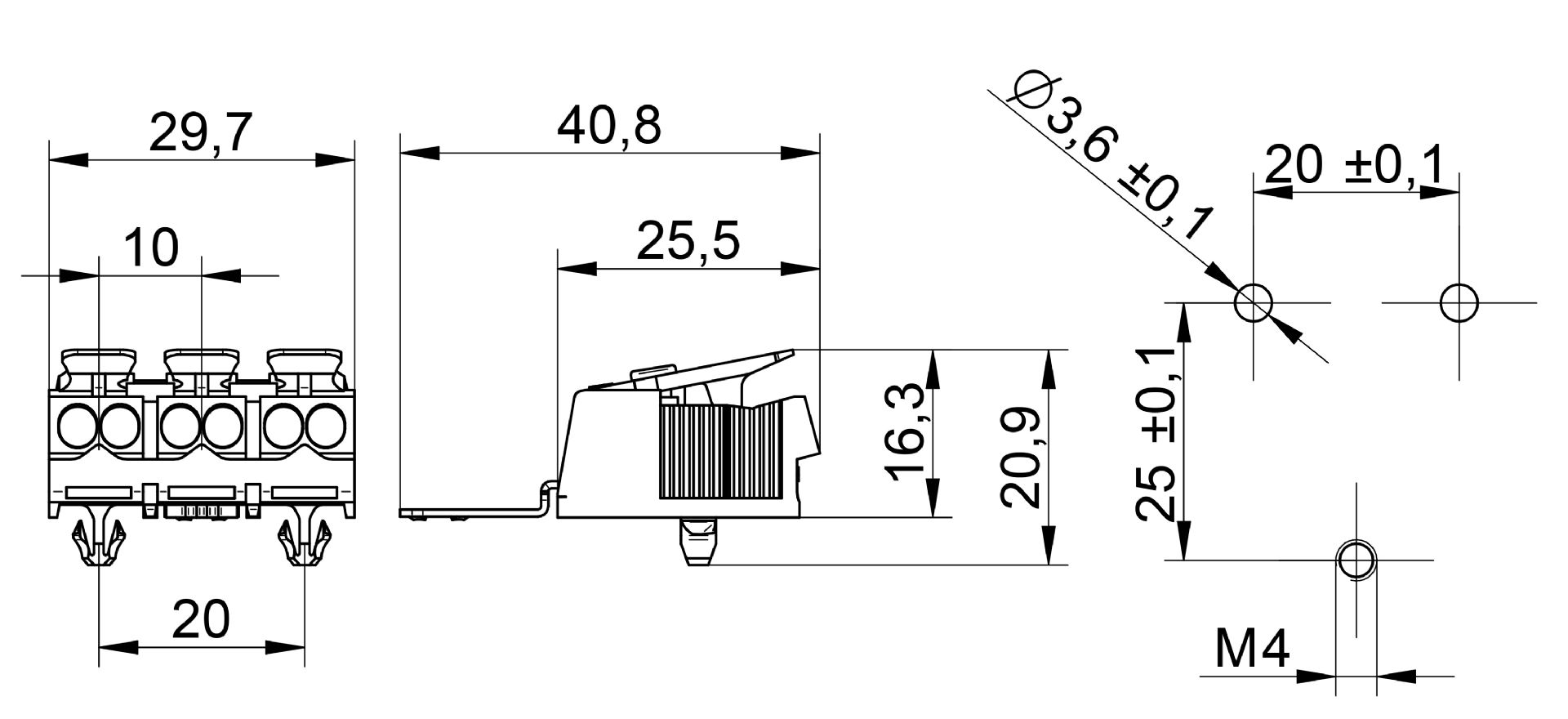

3103 A TT

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Earth: screw earth tag

Pin: YES

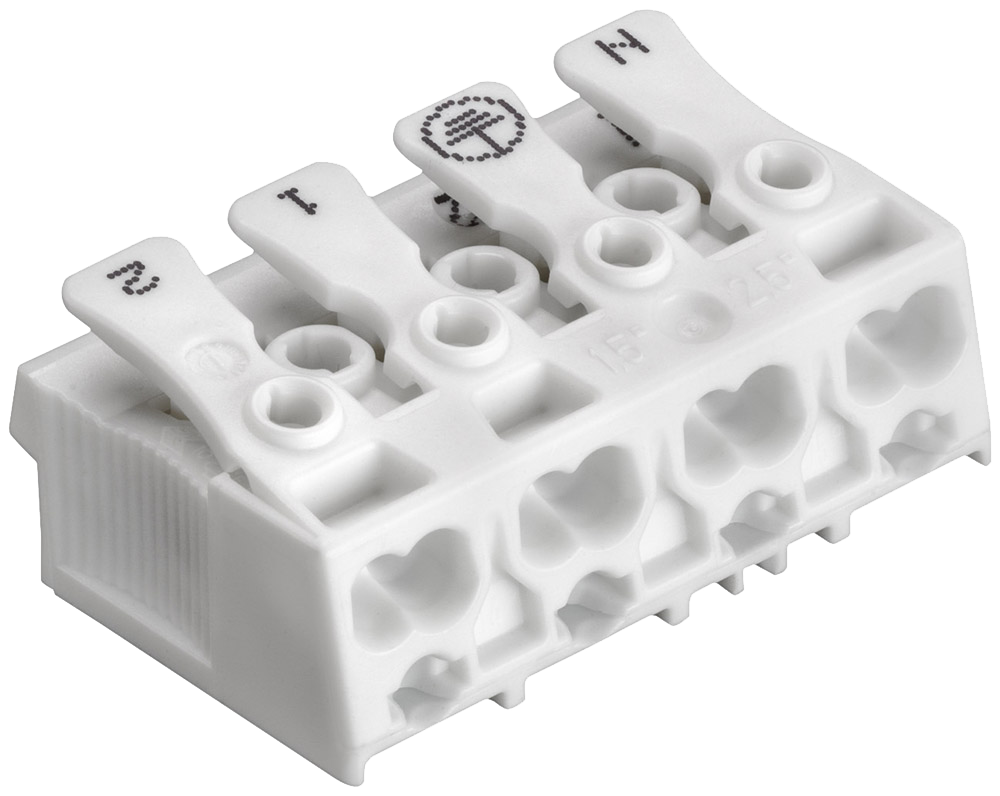

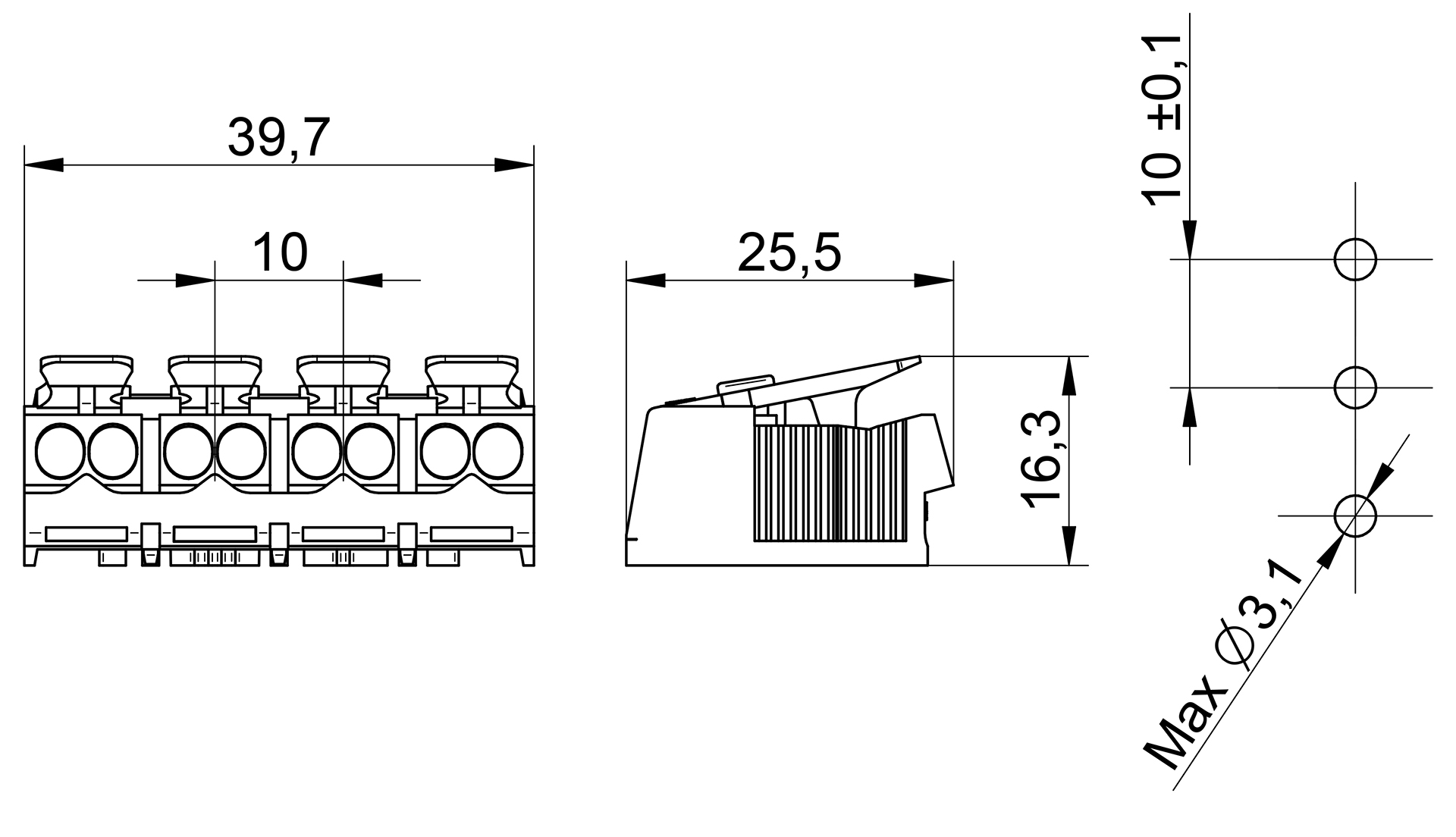

3104

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Pin: NO

3104 TI

Push-In Fast Connectors

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: rapid earth tag

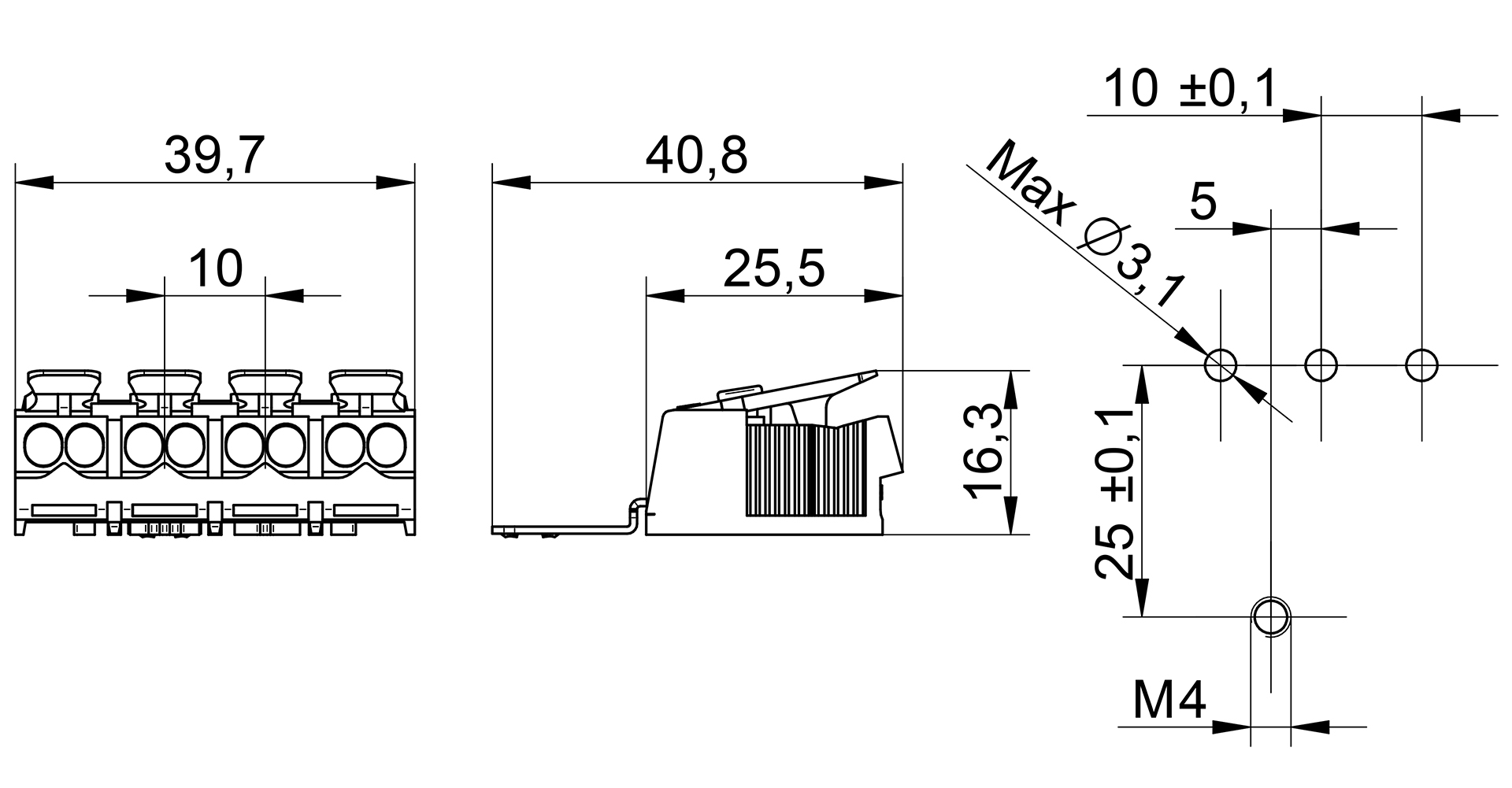

3104 TT

Push-In Fast Connectors

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: screw earth tag

3104 TA

Push-In Fast Connectors

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: clamping earth tag

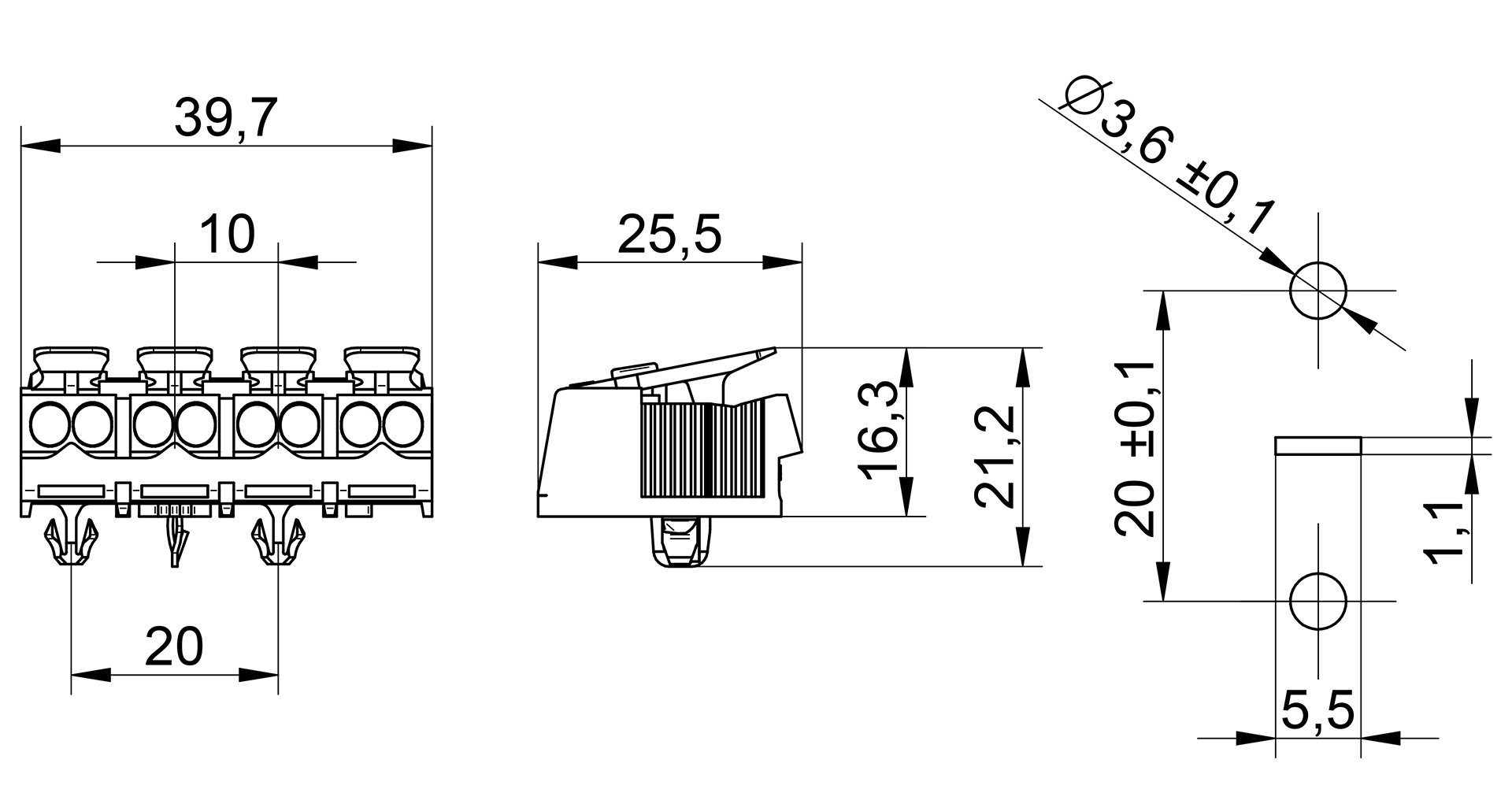

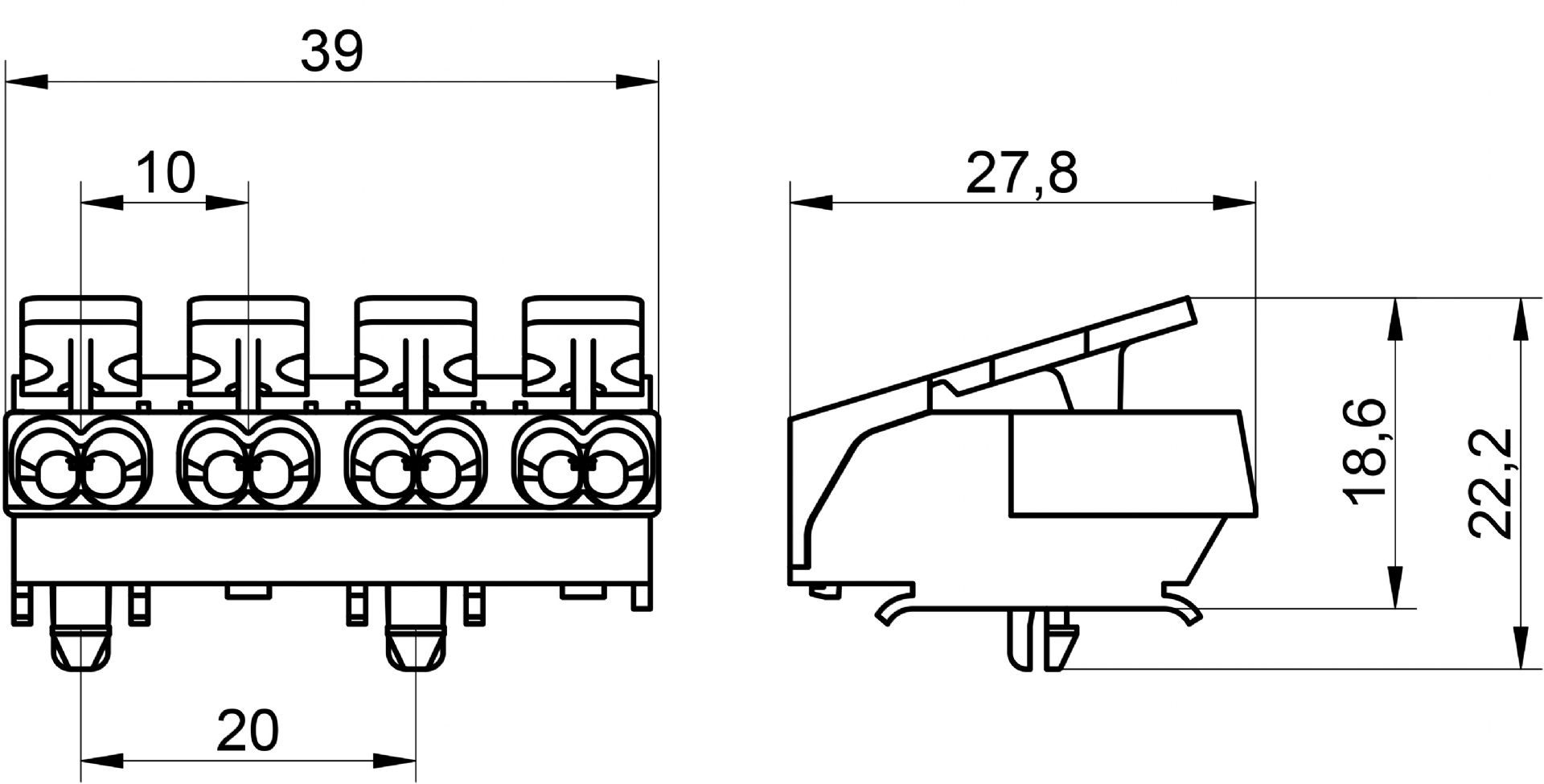

3104 A

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Pin: YES

3104 A TA

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: clamping earth tag

Pin: YES

3104 A TI

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: rapid earth tag

Pin: YES

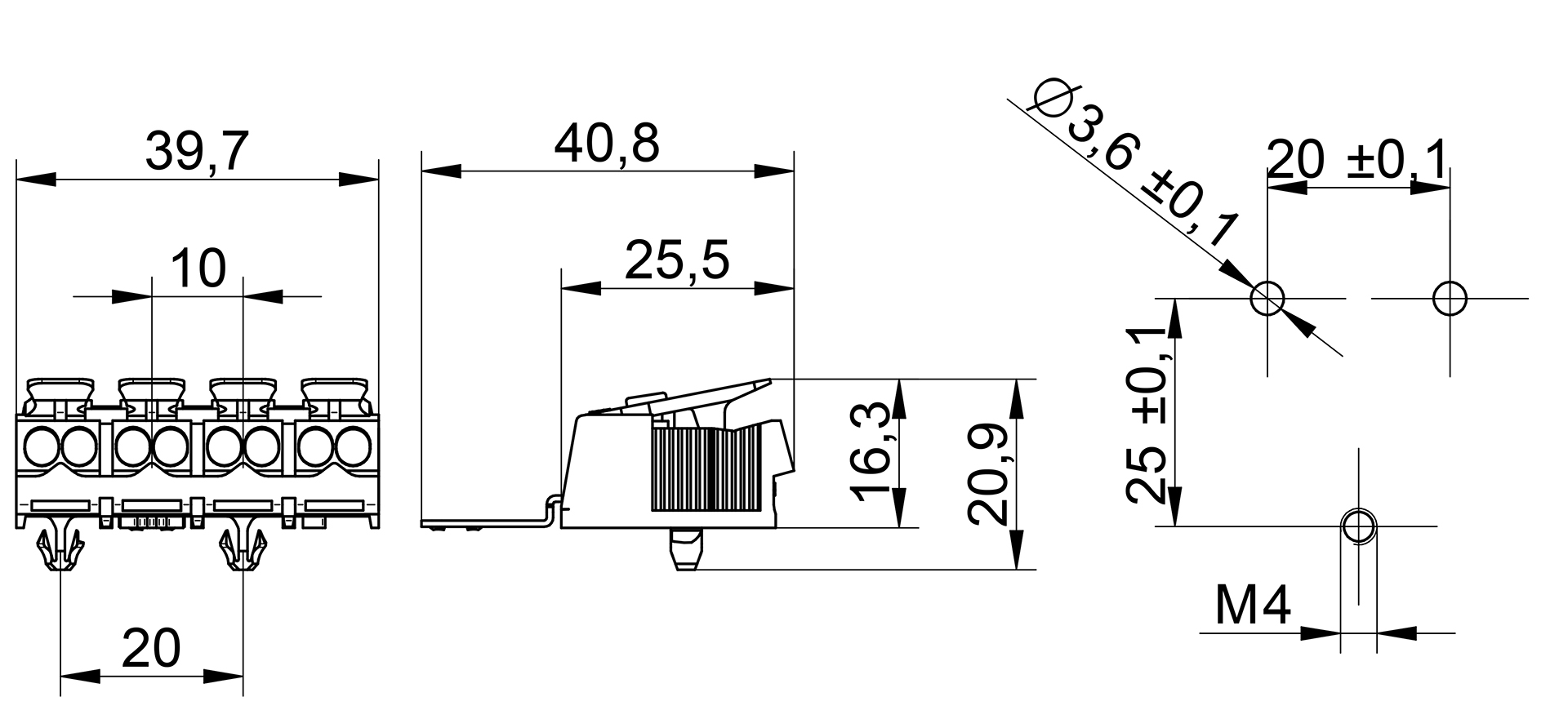

3104 A TT

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: screw earth tag

Pin: YES

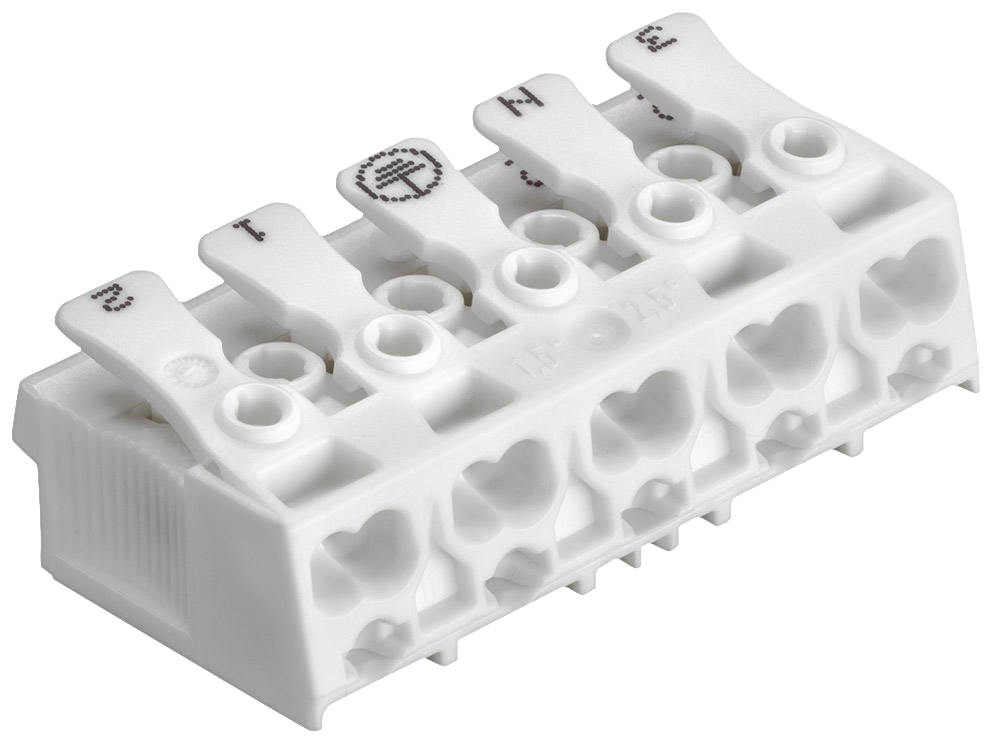

3105

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Pin: NO

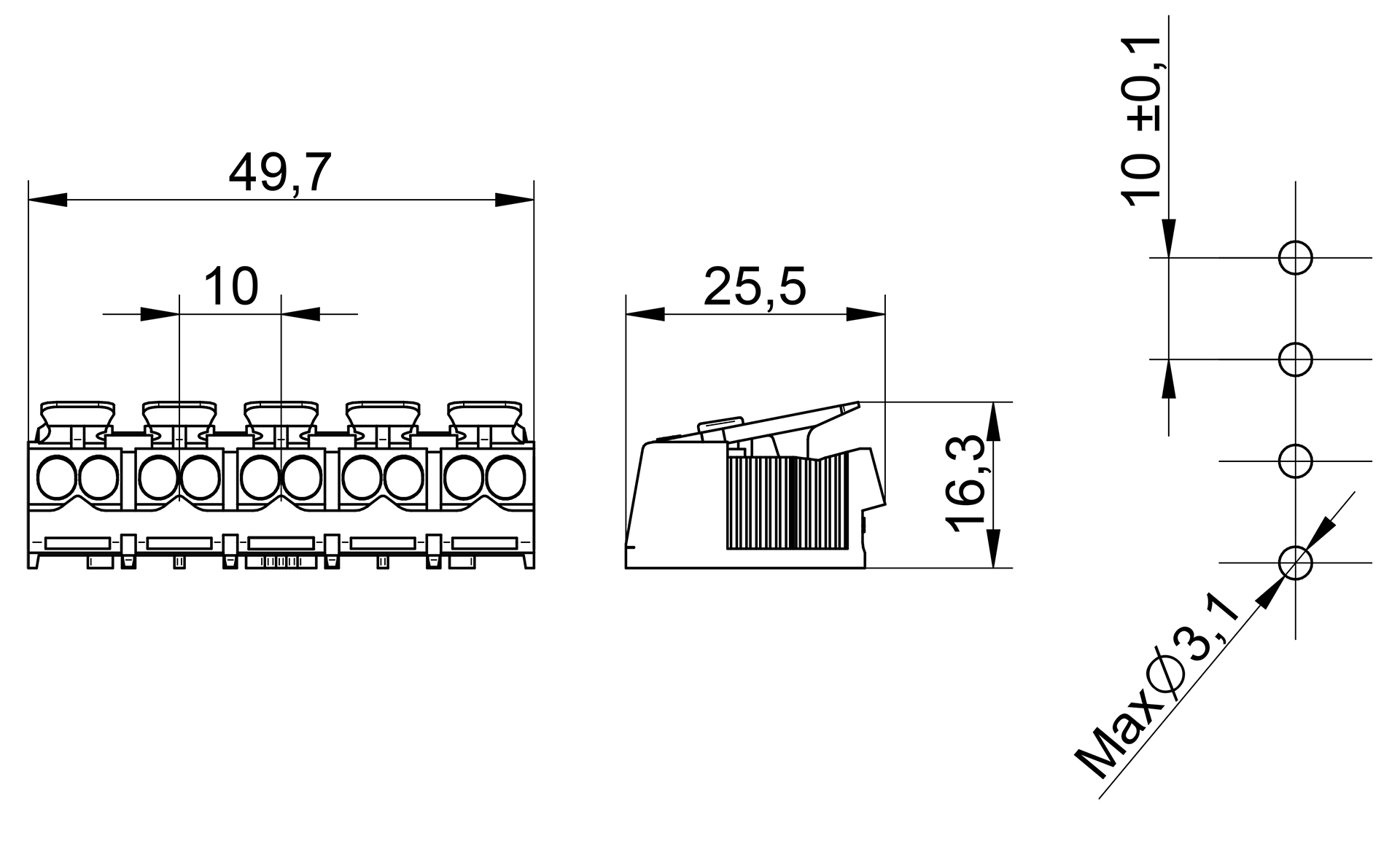

3105 TI

Push-In Fast Connectors

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Earth: rapid earth tag

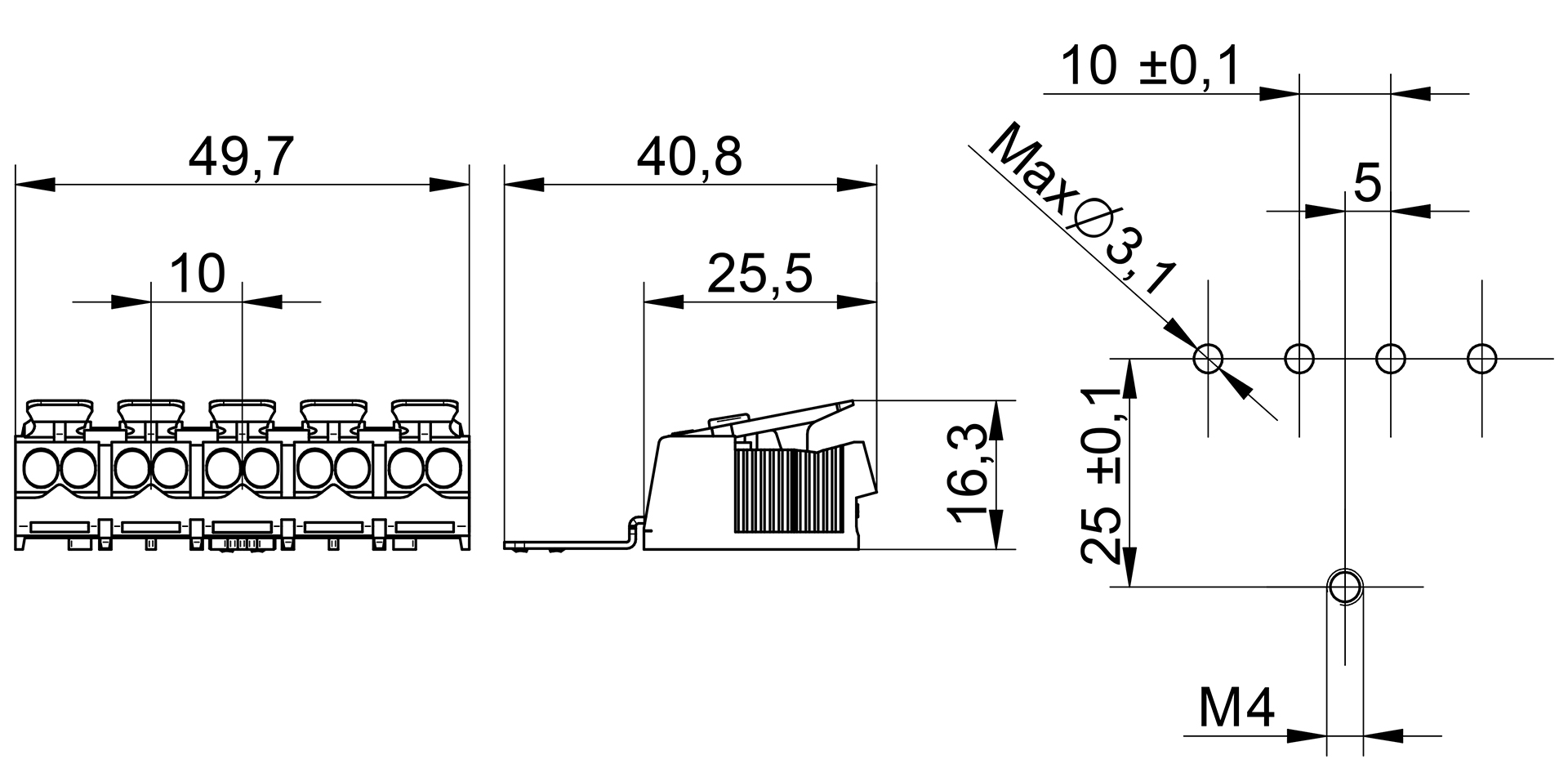

3105 TT

Push-In Fast Connectors

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Earth: screw earth tag

Pin: NO

3105 TA

Push-In Fast Connectors

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Earth: clamping earth tag

Pin: NO

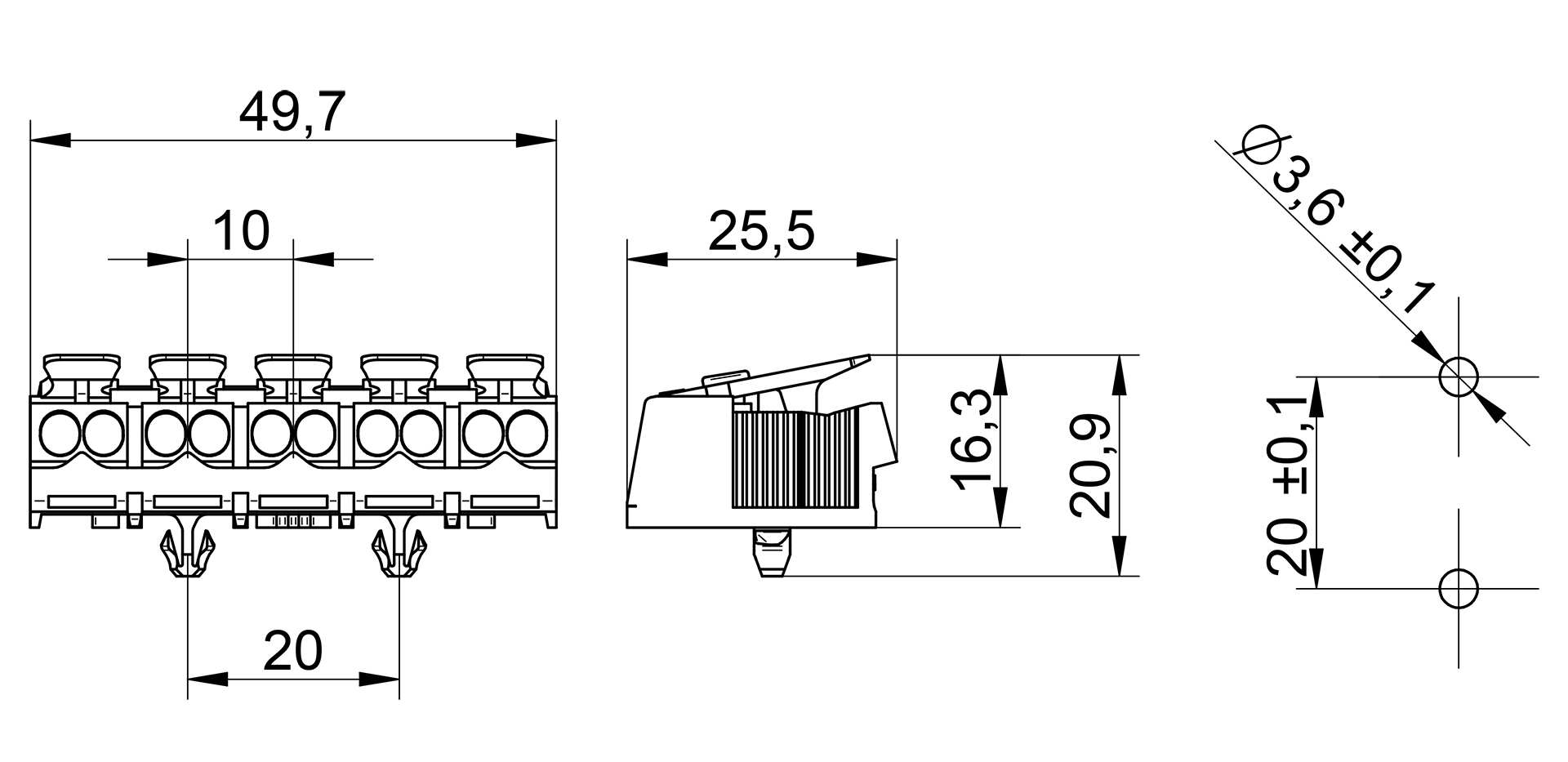

3105 A

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Pin: YES

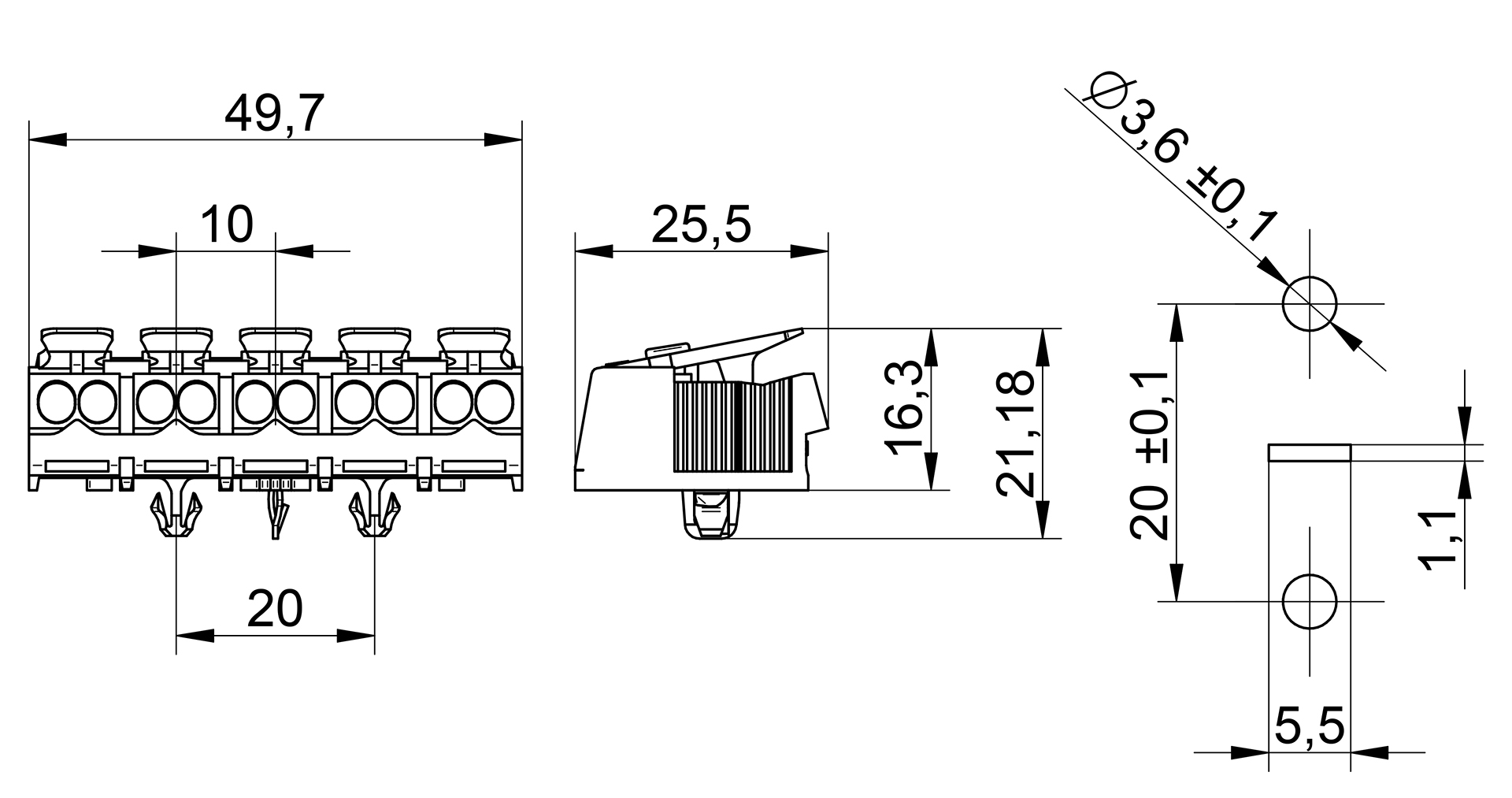

3105 A TA

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Earth: clamping earth tag

Pin: YES

3105 A TI

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Earth: rapid earth tag

Pin: YES

3105 A TT

Push-In Fast Connectors

Connection capacity: - Appliance side: 2 x 2,5 mm² / 0,75 mm² (rígido)
- Installation side: 2 x 2,5 mm² / 1 mm²
- Capacitor: 0,75 mm² / 0,5 mm² (rígido)

Voltage: 450 V

Temperature: 110ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Earth: screw earth tag

Pin: YES

ACCESSORIES

ST/3

Strain Relief for Push-In Fast Connectors

Constructive:

- To clamp the external conductors in the assembly fixtures.
- To protect the wire coating from abrasion and friction.
- For all models except 3102.
- It surpasses 60 N of traction by all conductors.
- This material is halogen-free.
- Easy manipulation.
