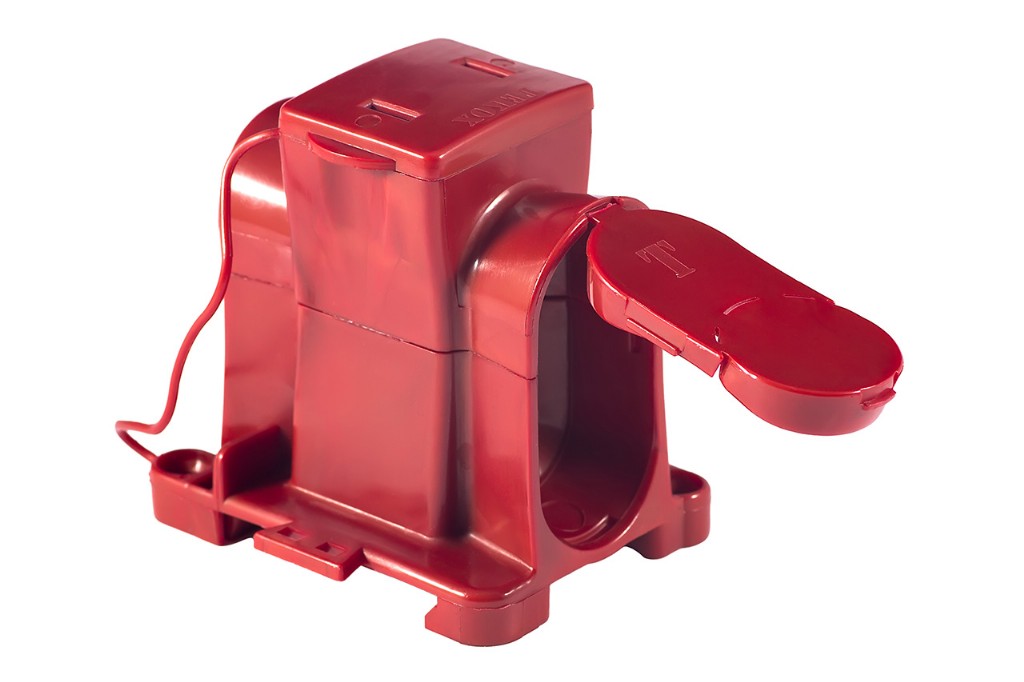

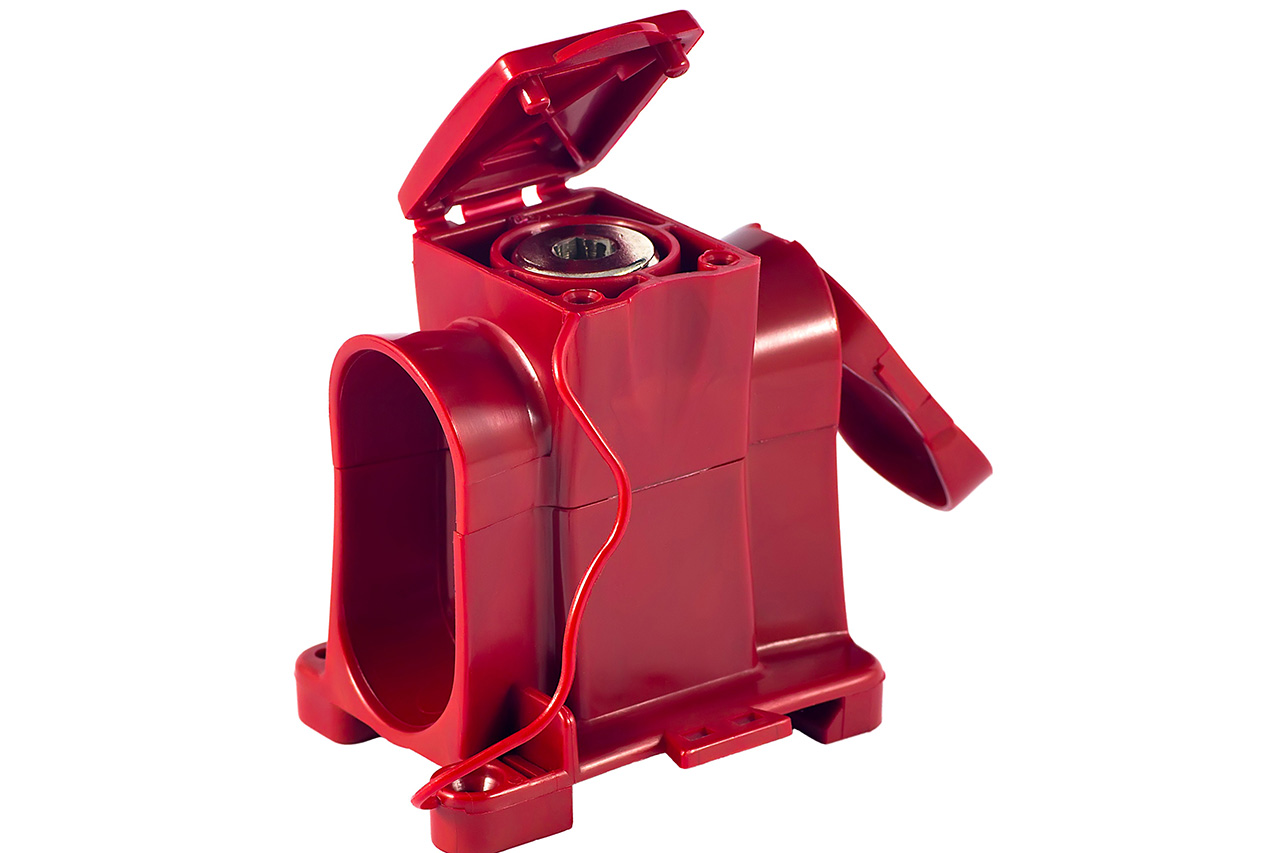

Safety connector used to make connections inside junction boxes.

Raw materials

- Moulding: Polyamide 6, red colour. V2 (according UL94).
- Insert: Nickel-plated brass.
- Screws: Nickel-plated brass. Metric thread.

Constructive characteristics

- Glow-wire test 960ºC according to EN 60695-2-11.
- Technical features according to EN 60998 (types up to 35mm²) and EN 60947 (types from 50 mm² on).

Safety block

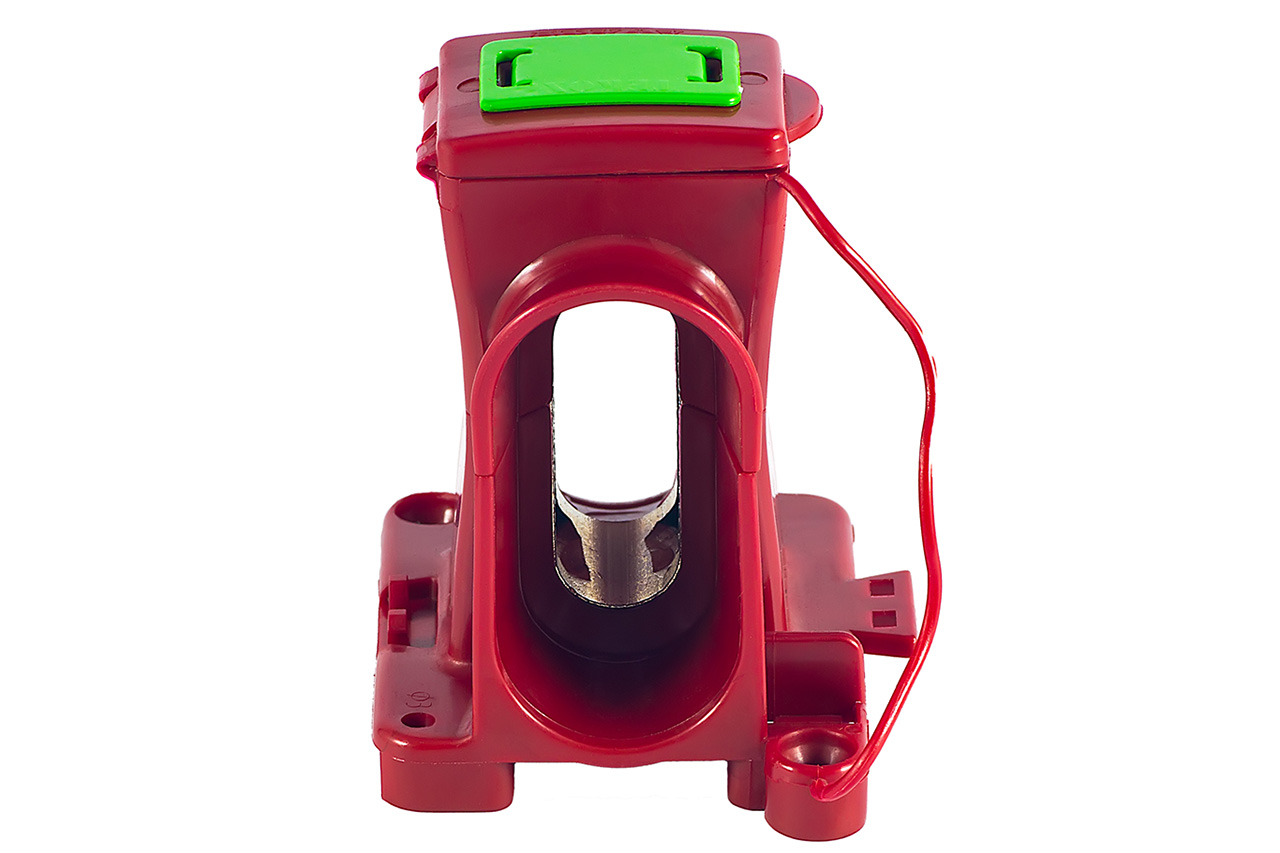

Safety block BD, enables connecting of additional copper wires without cutting the main conductor. Also suitable for being used as end blocks.

Higher protection against electrical shock. Save during installation.

Different types of mounting options available.

Types 50 mm² and above supplied with Allen screws.

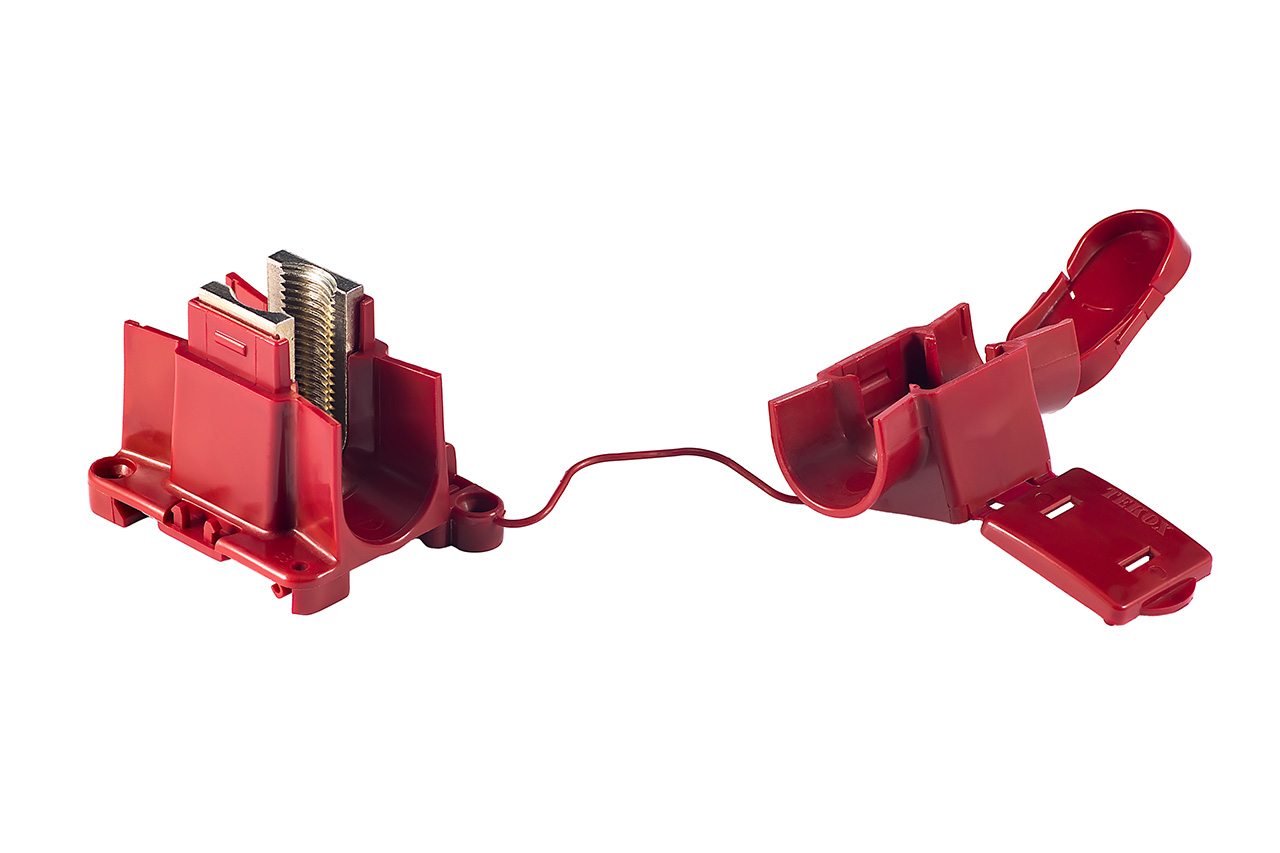

Cover linked to the base of the block to prevent loss.

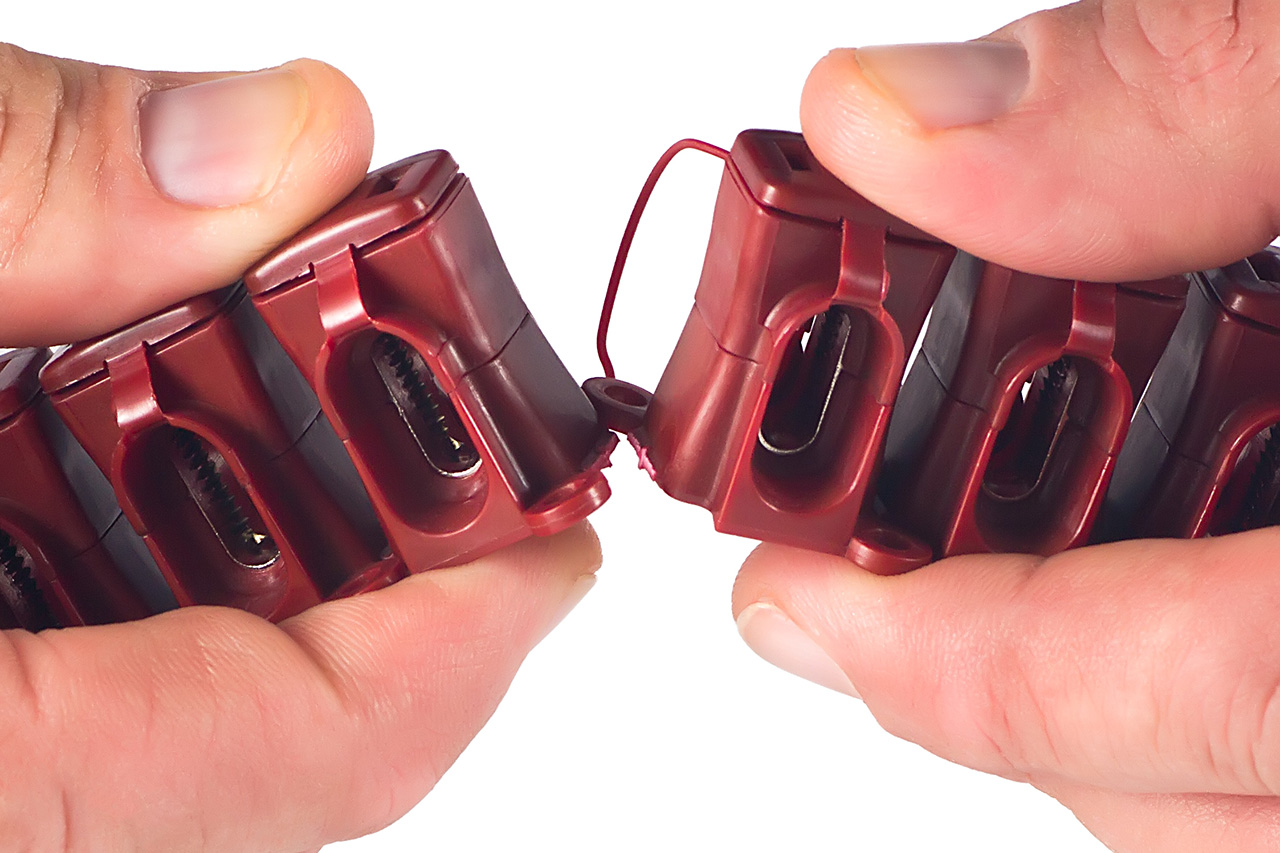

Up to 10 mm² supplied as 12 ways strips, easilly divided by hand.

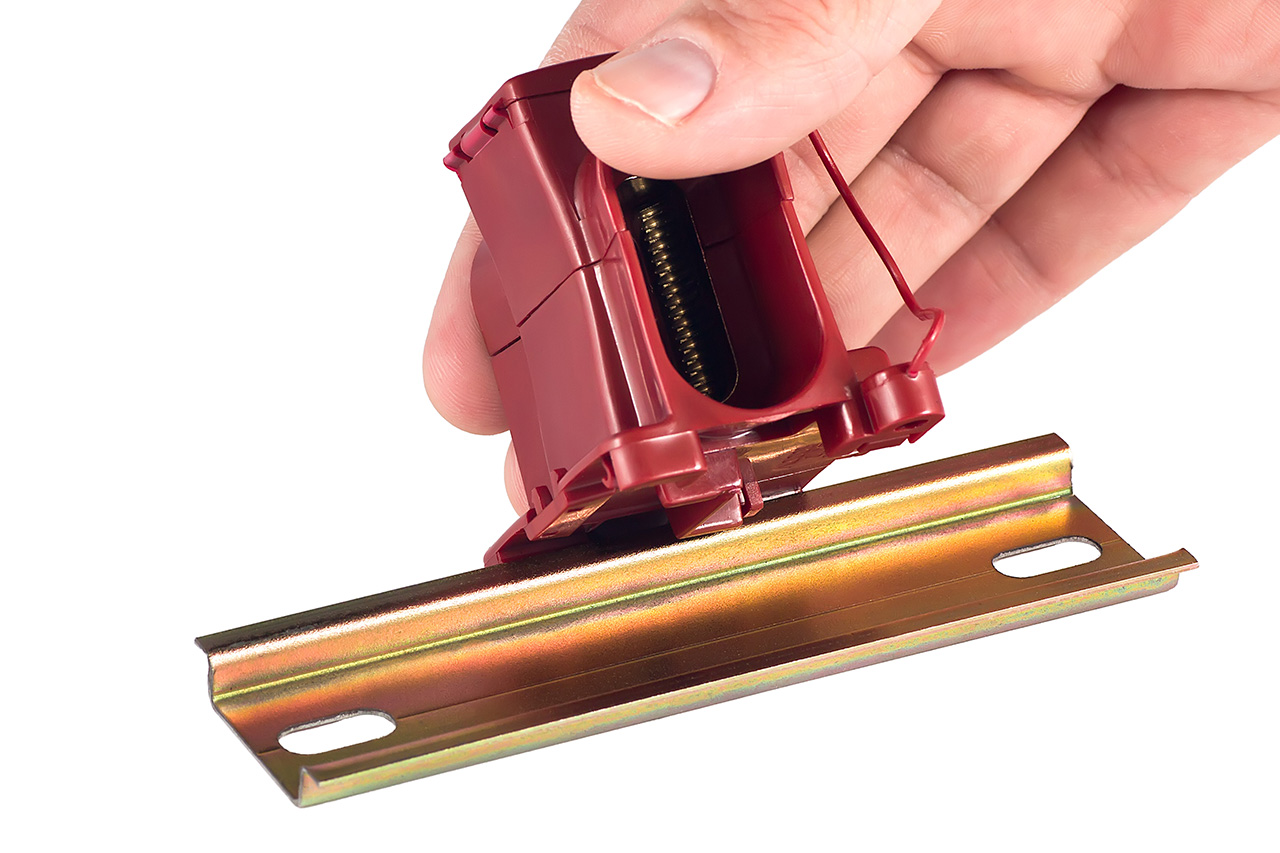

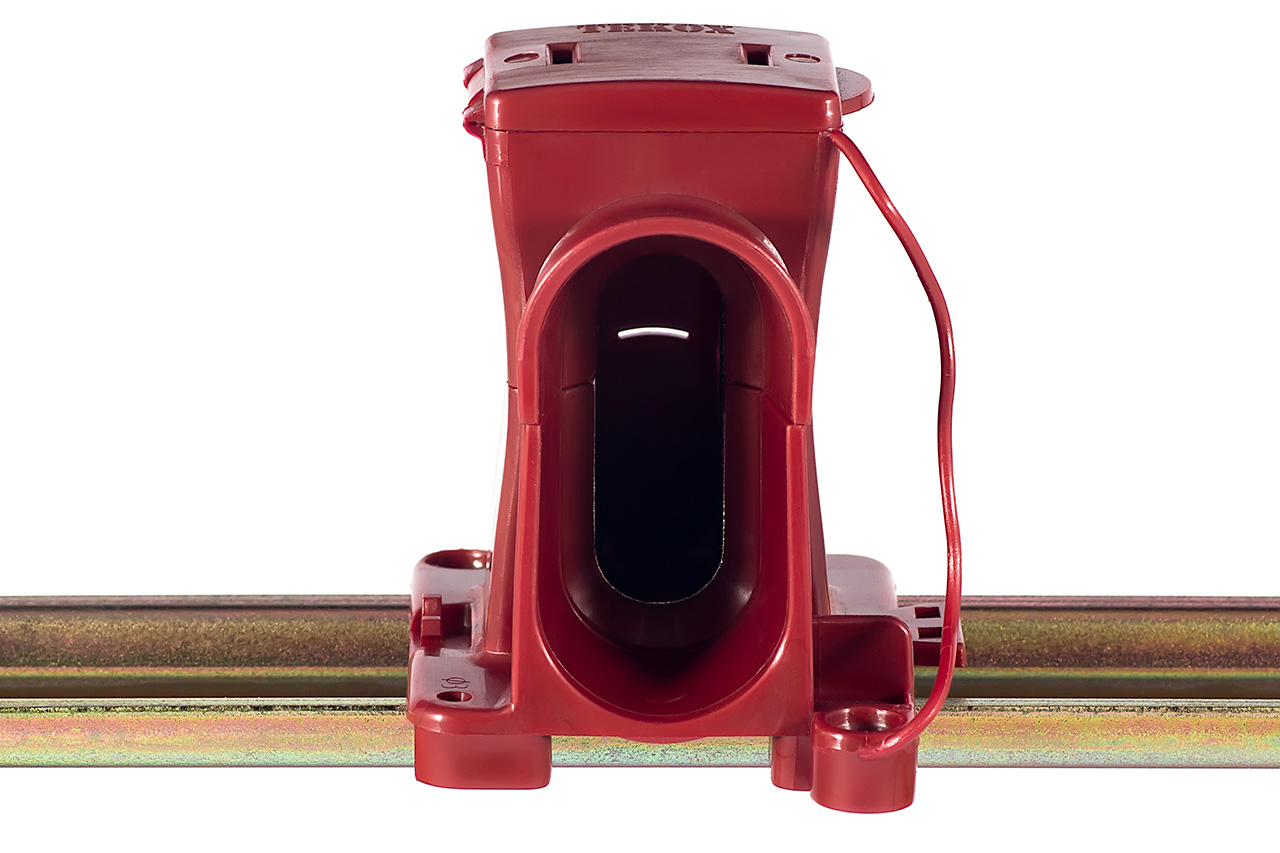

Rail DIN mounting available on types from 35 mm² to 120 mm².

Suitable for being used as end block due to its removable cover.

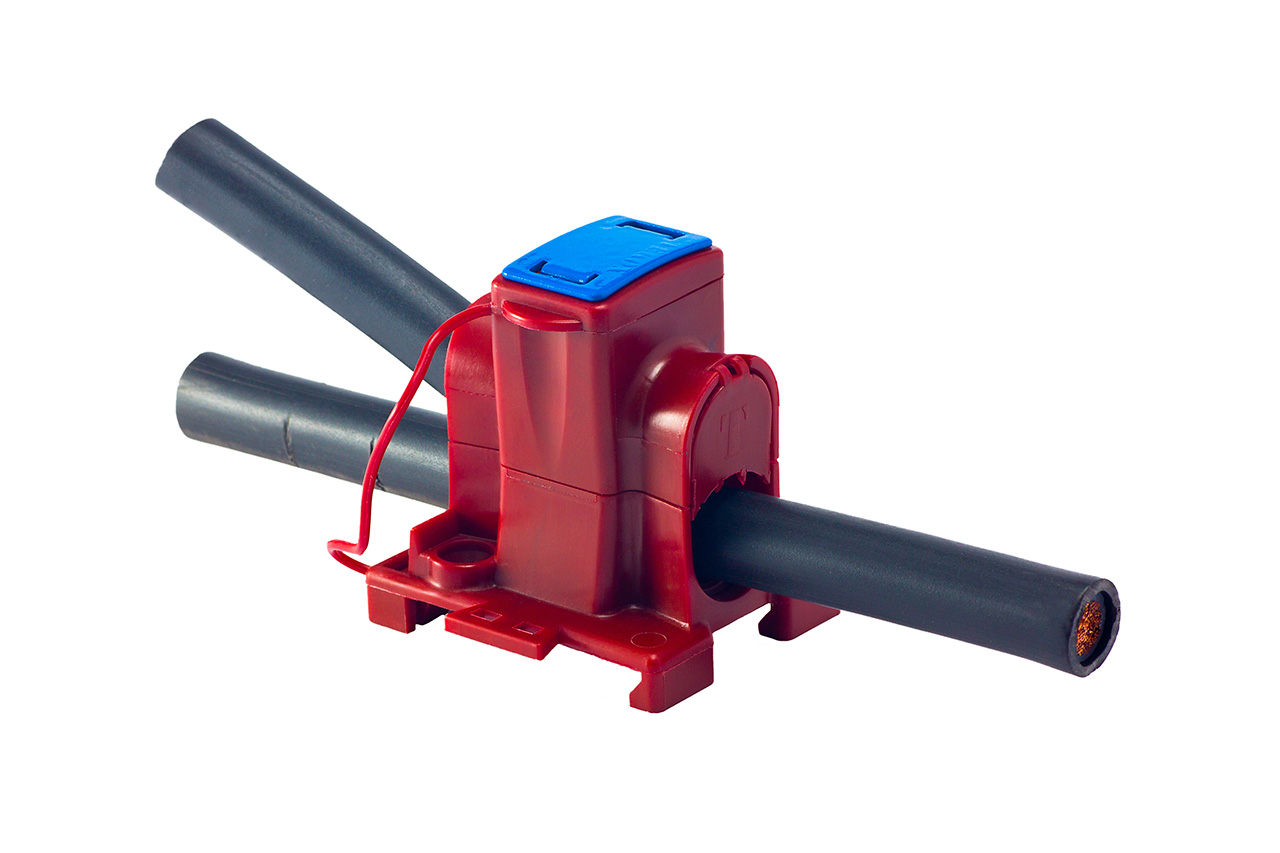

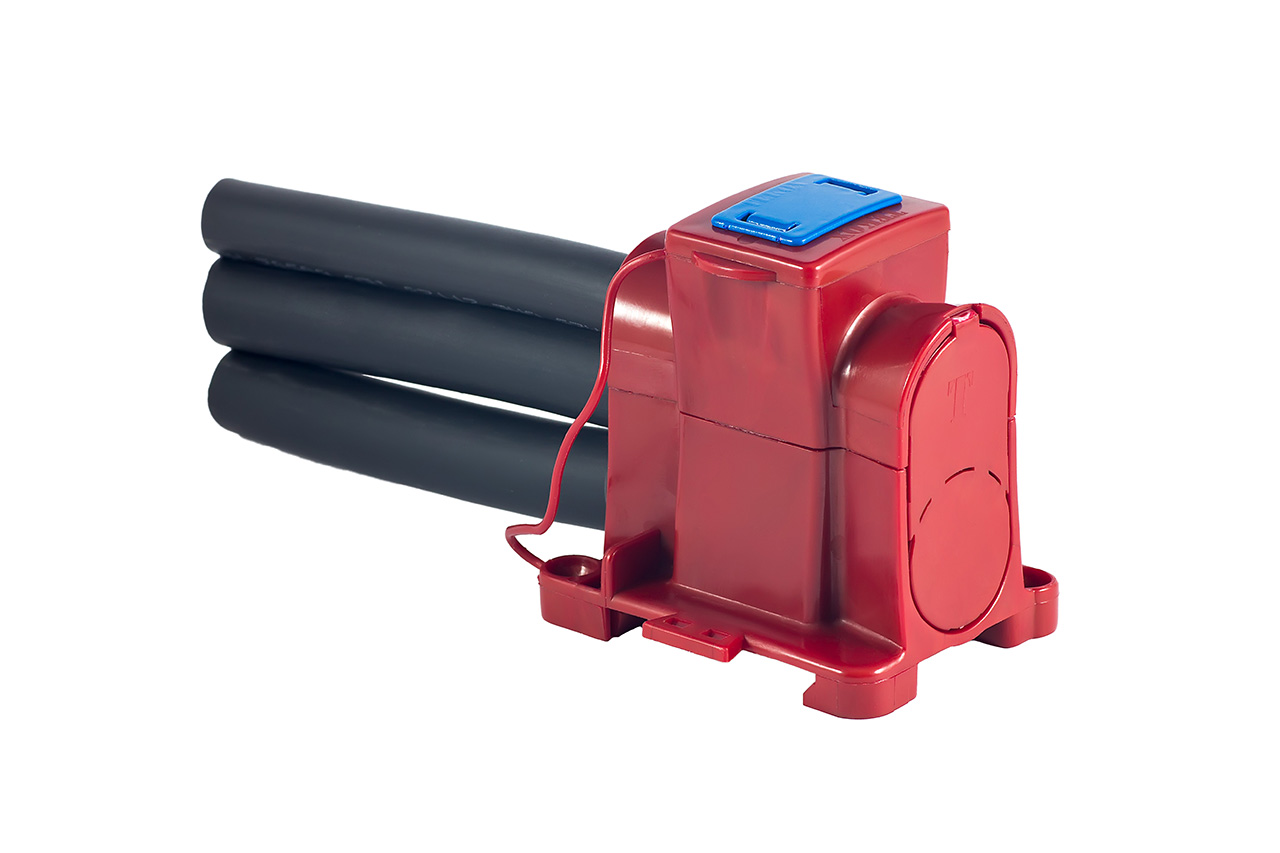

Enables branching without cutting the main conductor.

Venta/distribución/mayorista Borne de seguridad BD6

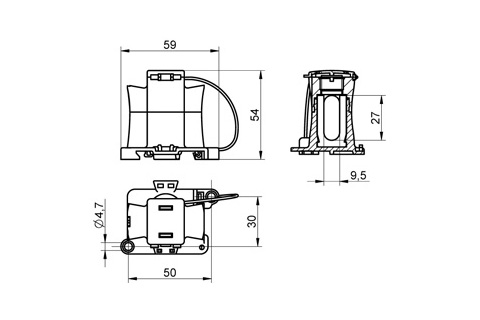

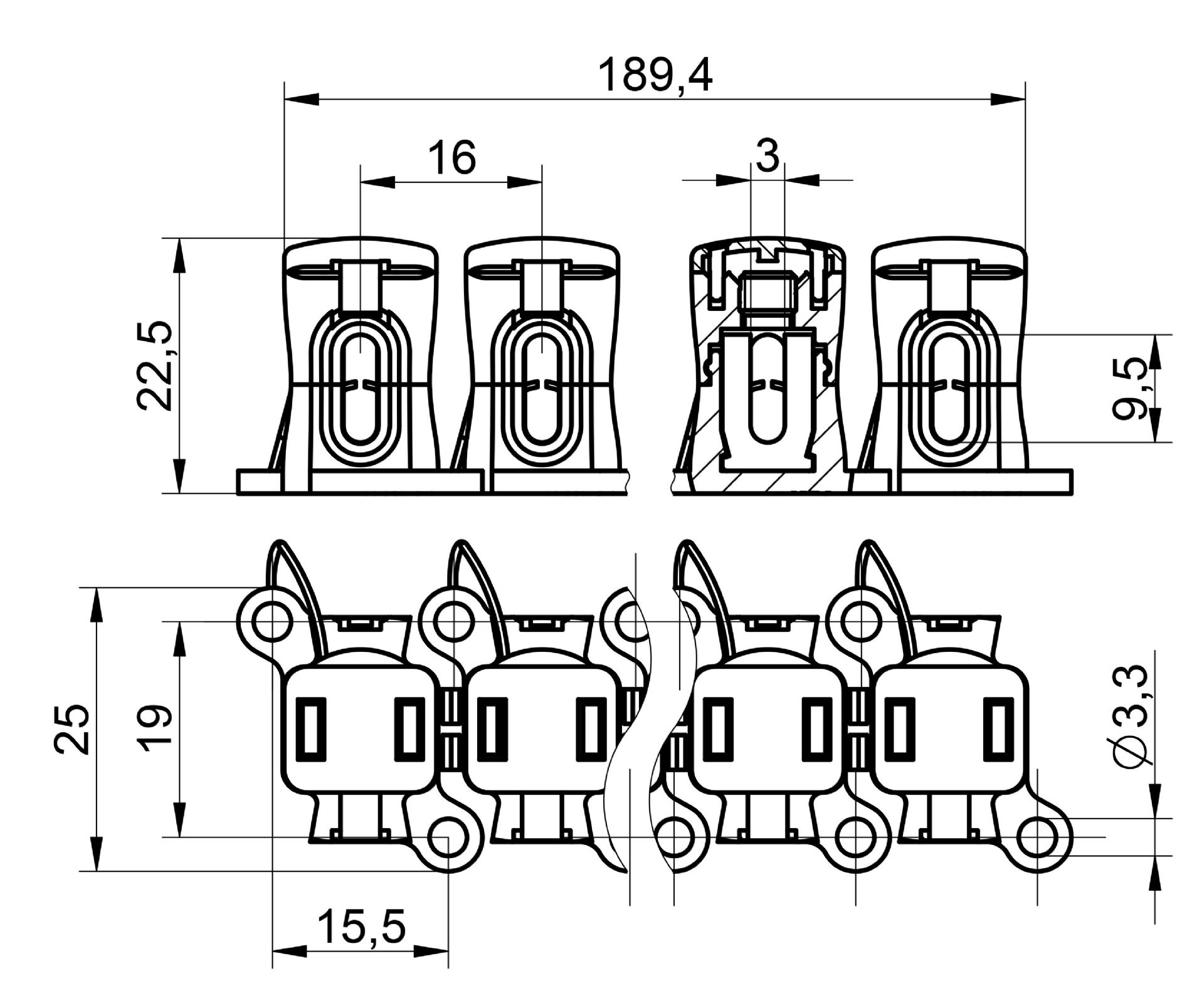

BD 6

Safety block

Connection capacity:

- Solid cable: 6 mm² / 2,5 mm²

- Flexible cable: 4 mm² / 2,5 mm²

Voltage: 750V

Temperature: 110ºC

Constructive:

- Version standard : 12 poles.
- Can be easily divided by hand into the required number of poles.

Intensity: 41 A

Tightening torque: 0,8 Nm

Metrics: M 5

Screw: Normal

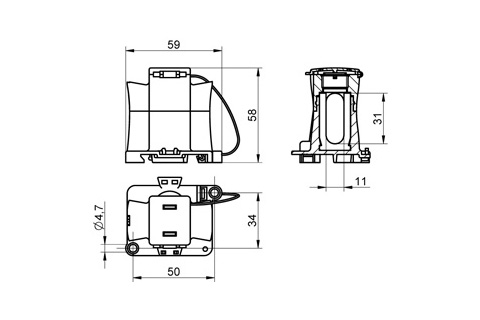

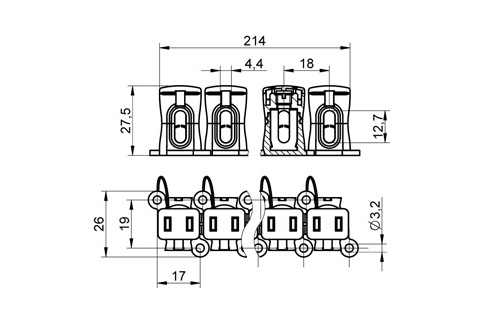

BD 10

Safety block

Connection capacity:

- Solid cable: 10 mm² / 4 mm²

- Flexible cable: 6 mm² / 4 mm²

Voltage: 750V

Temperature: 110ºC

Constructive:

- Version standard : 12 poles.
- Can be easily divided by hand into the required number of poles.

Intensity: 57 A

Tightening torque: 1,2 Nm

Metrics: M 6

Screw: Normal

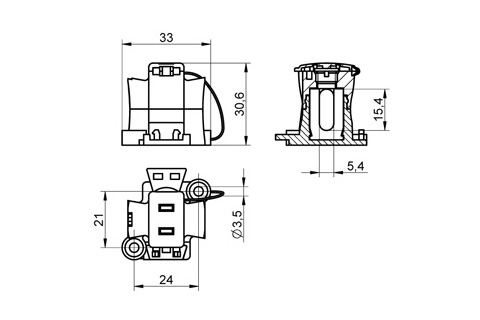

BD 16

Safety block

Connection capacity:

- Solid cable: 16 mm² / 6 mm²

- Flexible cable: 10 mm² / 4 mm²

Voltage: 750V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 76 A

Tightening torque: 2,5 Nm

Metrics: M 8

Screw: Normal

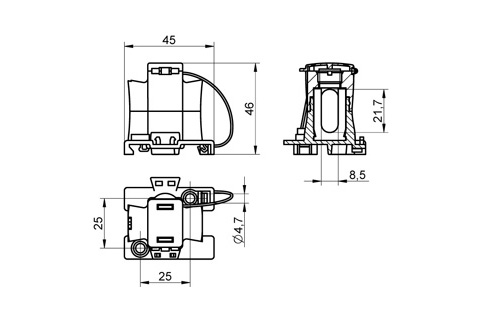

BD 35

Safety block

Connection capacity:

- Solid cable: 35 mm² / 16 mm²

- Flexible cable: 25 mm² / 10 mm²

Voltage: 750V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 125 A

Tightening torque: 2,5 Nm

Metrics: M 12

Screw: Normal

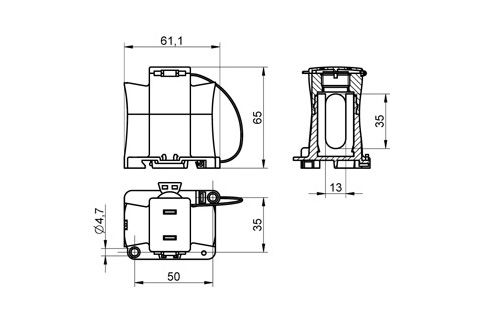

BD 50

Safety block

Connection capacity:

- Solid cable: 50 mm²

- Flexible cable: 35 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 150 A

Tightening torque: 5 Nm

Metrics: M 14

Screw: Normal

BD 50/A

Safety block

Connection capacity:

- Solid cable: 50 mm²

- Flexible cable: 35 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 150 A

Tightening torque: 5 Nm

Metrics: M 14

Screw: Allen

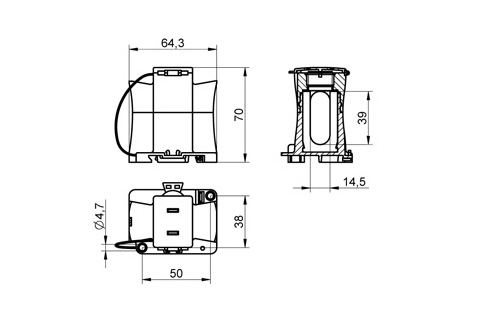

BD 70

Safety block

Connection capacity:

- Solid cable: 70 mm²

- Flexible cable: 50 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 192 A

Tightening torque: 5,5 Nm

Metrics: M 16

Screw: Normal

BD 70/A

Safety block

Connection capacity:

- Solid cable: 70 mm²

- Flexible cable: 50 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 192 A

Tightening torque: 5,5 Nm

Metrics: M 16

Screw: Allen

BD 95

Safety block

Connection capacity:

- Solid cable: 95 mm²

- Flexible cable: 70 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 232 A

Tightening torque: 9 Nm

Metrics: M 18

Screw: Normal

BD 95/A

Safety block

Connection capacity:

- Solid cable: 95 mm²

- Flexible cable: 70 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 232 A

Tightening torque: 9 Nm

Metrics: M 18

Screw: Allen

BD 120

Safety block

Connection capacity:

- Solid cable: 120 mm²

- Flexible cable: 95 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 269 A

Tightening torque: 11 Nm

Metrics: M 20

Screw: Normal

BD 120/A

Safety block

Connection capacity:

- Solid cable: 120 mm²

- Flexible cable: 95 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.

Intensity: 269 A

Tightening torque: 11 Nm

Metrics: M 20

Screw: Allen

ACCESSORIES

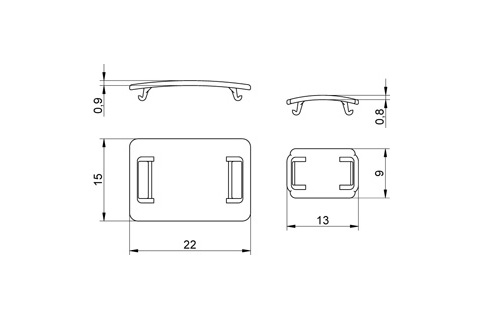

BDBS 6/16 L

Colour-coded tags

Connection capacity: Desde 6 mm² hasta 16 mm²

Constructive:

- Line tag for types from 6 mm² to 16 mm².
- Grey color.

BDBS 6/16 T

Colour-coded tags

Connection capacity: Desde 6 mm² hasta 16 mm²

Constructive:

- Earth tag for types from 6 mm² to 16 mm².
- Green color.

BDBS 6/16 N

Colour-coded tags

Connection capacity: Desde 6 mm² hasta 16 mm²

Constructive:

- Neutral tag for types from 6 mm² to 16 mm².
- Blue color.

BDBS 35/120 T

Colour-coded tags

Connection capacity: Desde 35 mm² hasta 120 mm²

Constructive:

- Earth tag for types from 35 mm² to 120 mm².
- Green color.

BDBS 35/120 N

Colour-coded tags

Connection capacity: Desde 35 mm² hasta 120 mm²

Constructive:

- Neutral tag for types from 35 mm² to 120 mm².
- Blue color.

BDBS 35/120 L

Colour-coded tags

Connection capacity: Desde 35 mm² hasta 120 mm²

Constructive:

- Line tag for types from 35 mm² to 120 mm².
- Grey color.
