Bimetal terminal CUAL

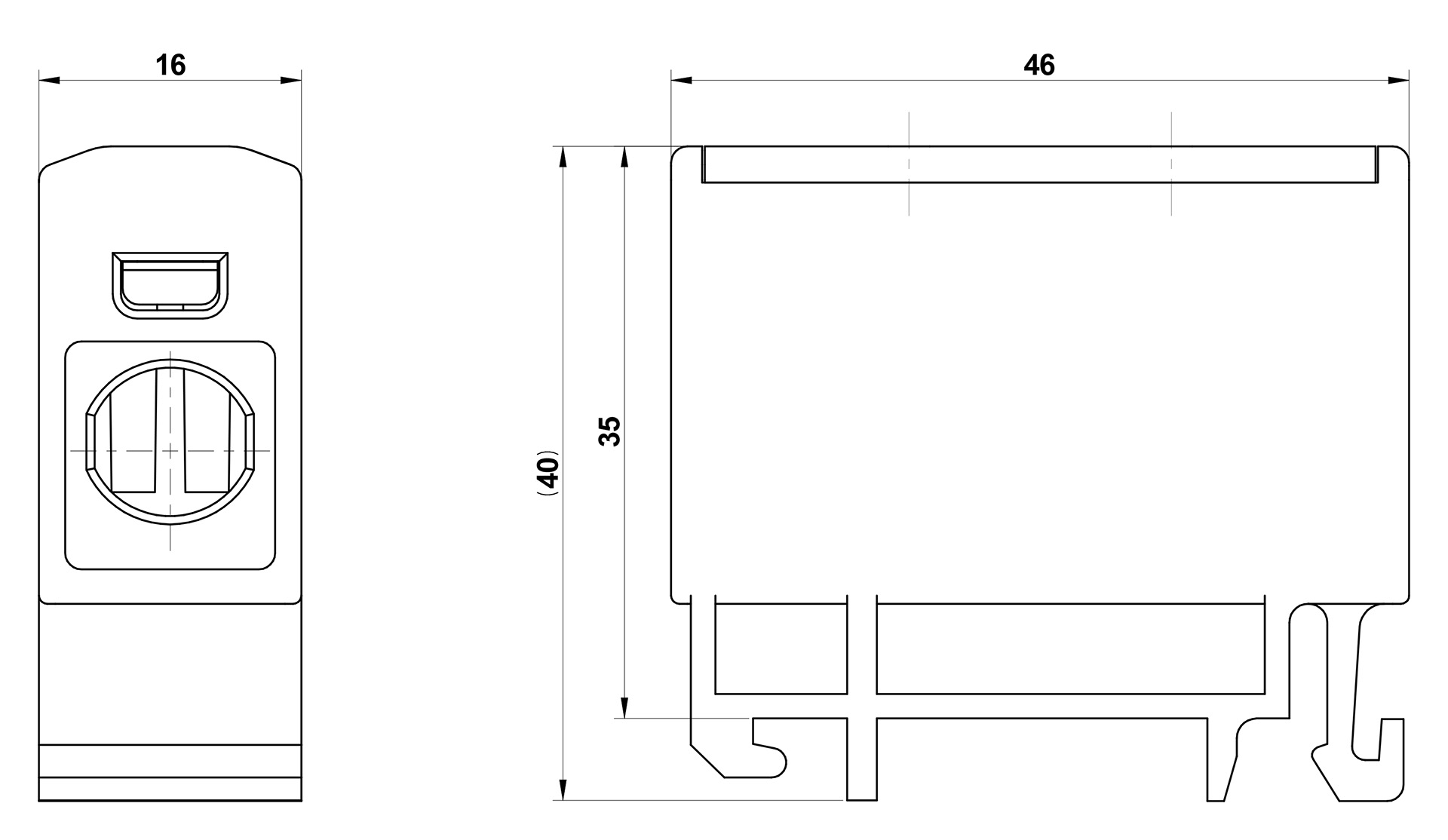

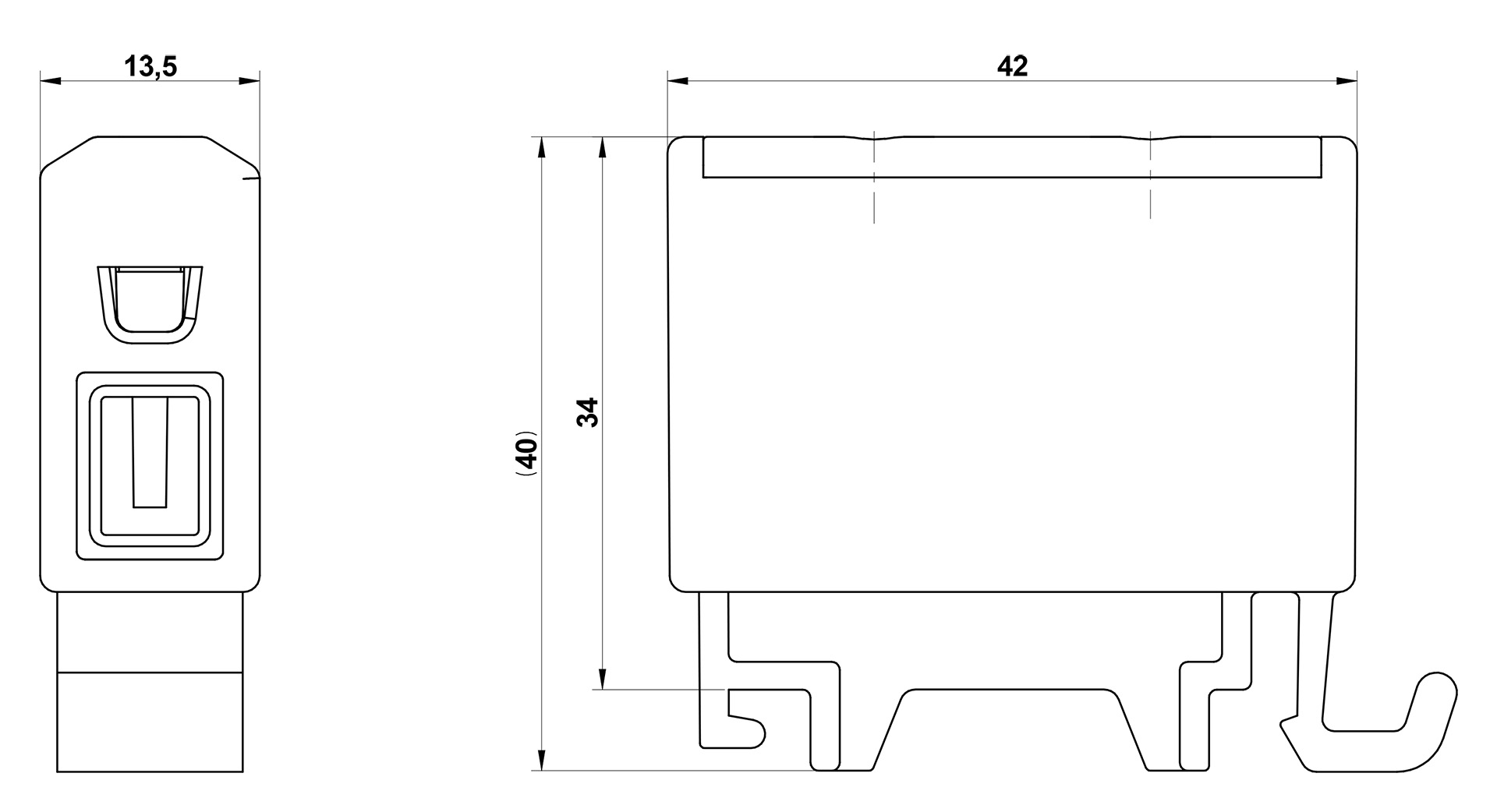

Connection capacity:

- Solid cable: 1,5 mm² / 16 mm²

- Flexible cable: 1,5 mm² / 16 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

2 Connection points

Executions:

CUAL16/1 A: Blue
CUAL16/1 T: Yellow-Green

Intensity: 85A(CU) 85A(AL)

Tightening torque: 7 Nm

Metrics: M4

Poles: 1P

Color: GREY

IP Grade: IP20

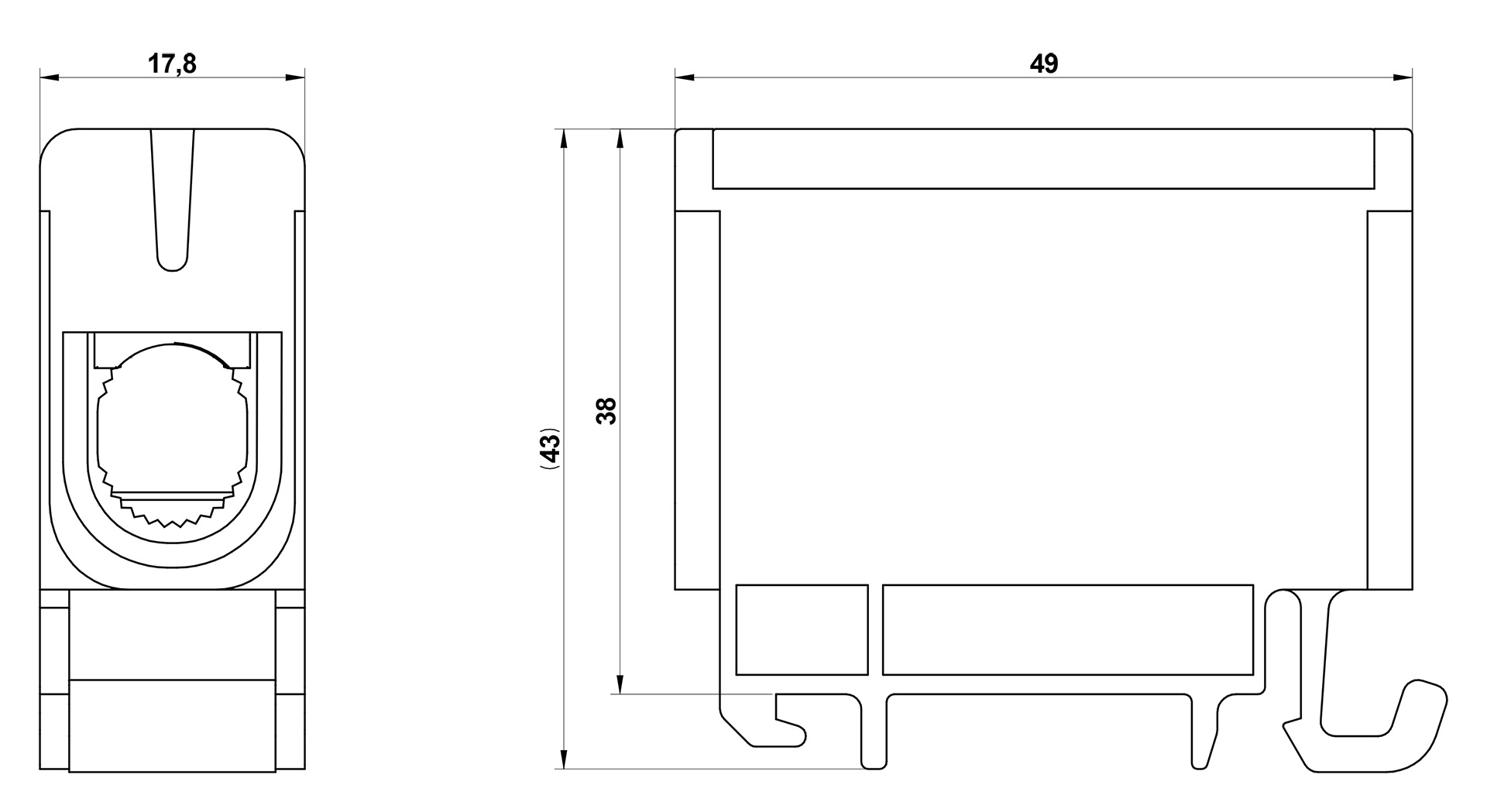

Connection capacity:

- Solid cable: 1,5 mm² / 35 mm²

- Flexible cable: 2,5 mm² / 25 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

2 Connection points

Executions:

CUAL16/1 A: Blue
CUAL16/1 T: Yellow-Green

Intensity: 135A(CU) 120A(AL)

Tightening torque: 6 Nm

Metrics: M4

Poles: 1P

Color: GREY

IP Grade: IP20

Connection capacity:

- Solid cable: 1,5 mm² / 50 mm²

- Flexible cable: 2,5 mm² / 35 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

2 Connection points

Executions:

CUAL50/1 A: Blue

CUAL50/1 T: Yellow-Green

Intensity: 160A(CU) 145A(AL)

Tightening torque: 10 Nm

Metrics: M5

Poles: 1P

Color: GREY

IP Grade: IP20

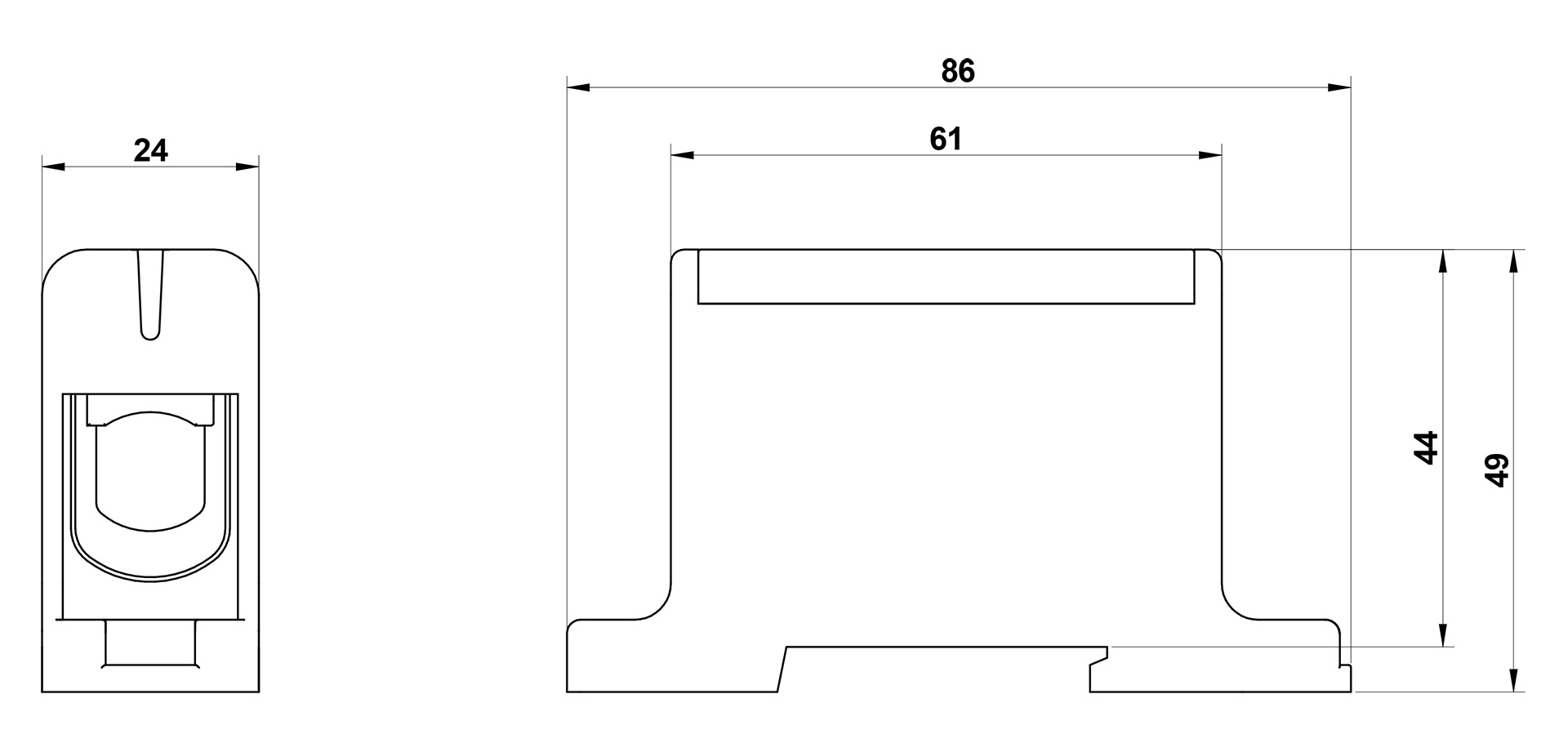

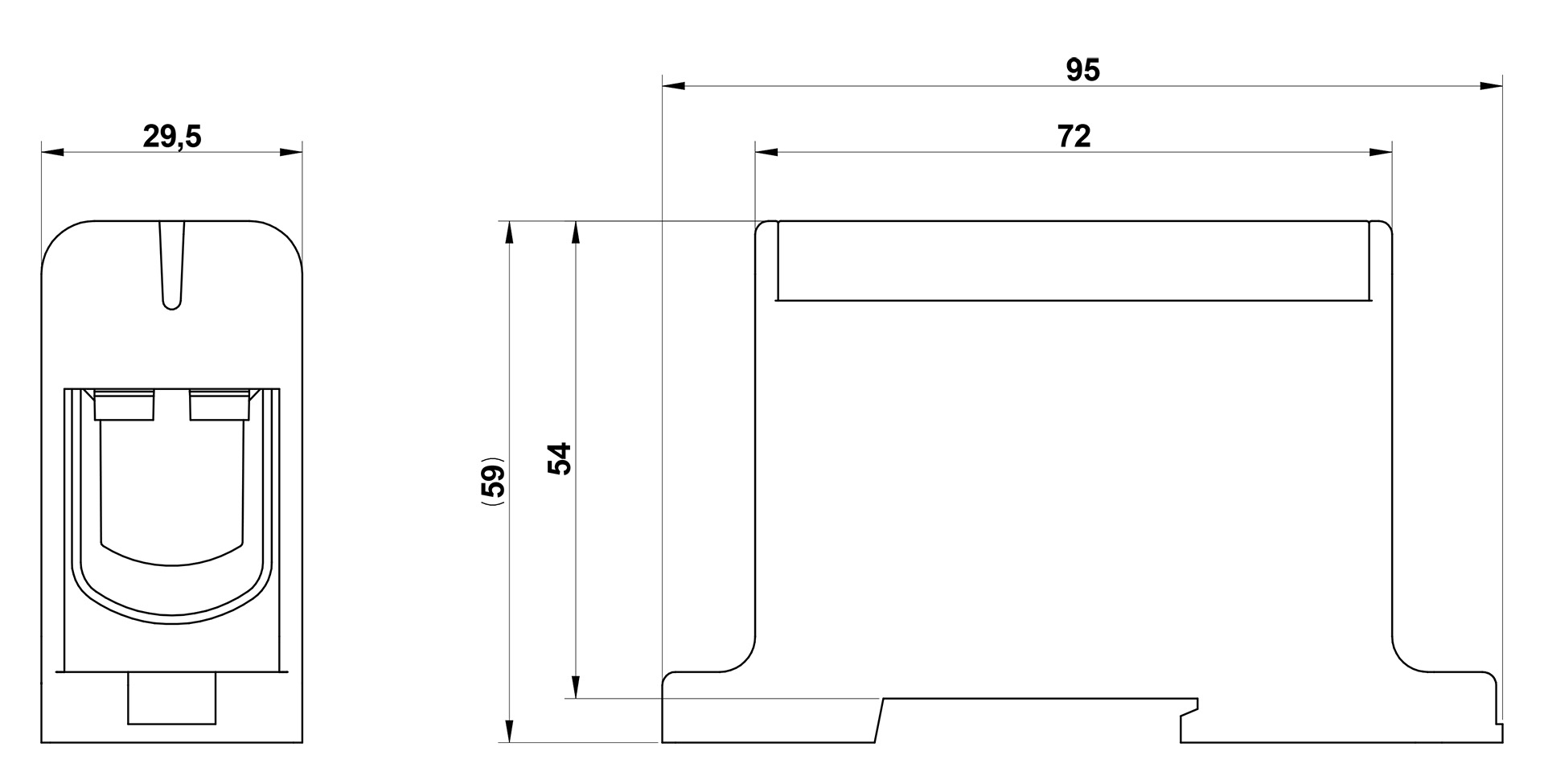

Connection capacity:

- Solid cable: 16 mm² / 95 mm²

- Flexible cable: 16 mm² / 70 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

2 Connection points

Executions:

CUAL95/1 A: Blue
CUAL95/1 T: Yellow-Green

Intensity: 245A(CU) 220A(AL)

Tightening torque: 20 Nm

Metrics: M5

Poles: 1P

Color: GREY

IP Grade: IP20

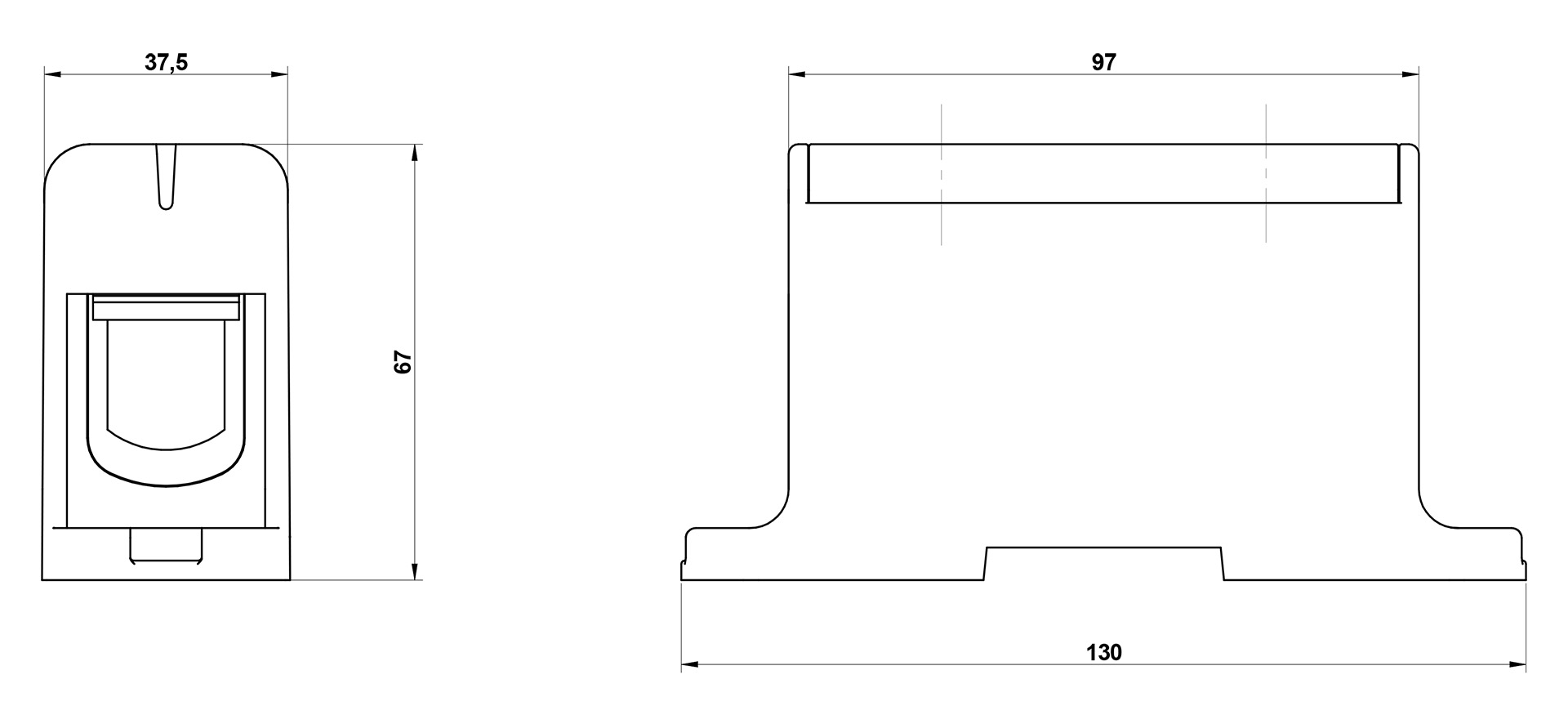

Connection capacity:

- Solid cable: 35 mm² / 150 mm²

- Flexible cable: 35 mm² / 120 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

2 Connection points

Executions:

CUAL150/1 A: Blue
CUAL150/1 T: Yellow-Green

Intensity: 320A(CU) 290A(AL)

Tightening torque: 30 Nm

Metrics: M8

Poles: 1P

Color: GREY

IP Grade: IP20

Connection capacity:

- Solid cable: 35 mm² / 240 mm²

- Flexible cable: 35 mm² / 185 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

2 Connection points

Executions:

CUAL240/1 A: Blue
CUAL240/1 T: Yellow-Green

Intensity: 425A(CU) 380A(AL)

Tightening torque: 40 Nm

Metrics: M8

Poles: 1P

Color: GREY

IP Grade: IP20

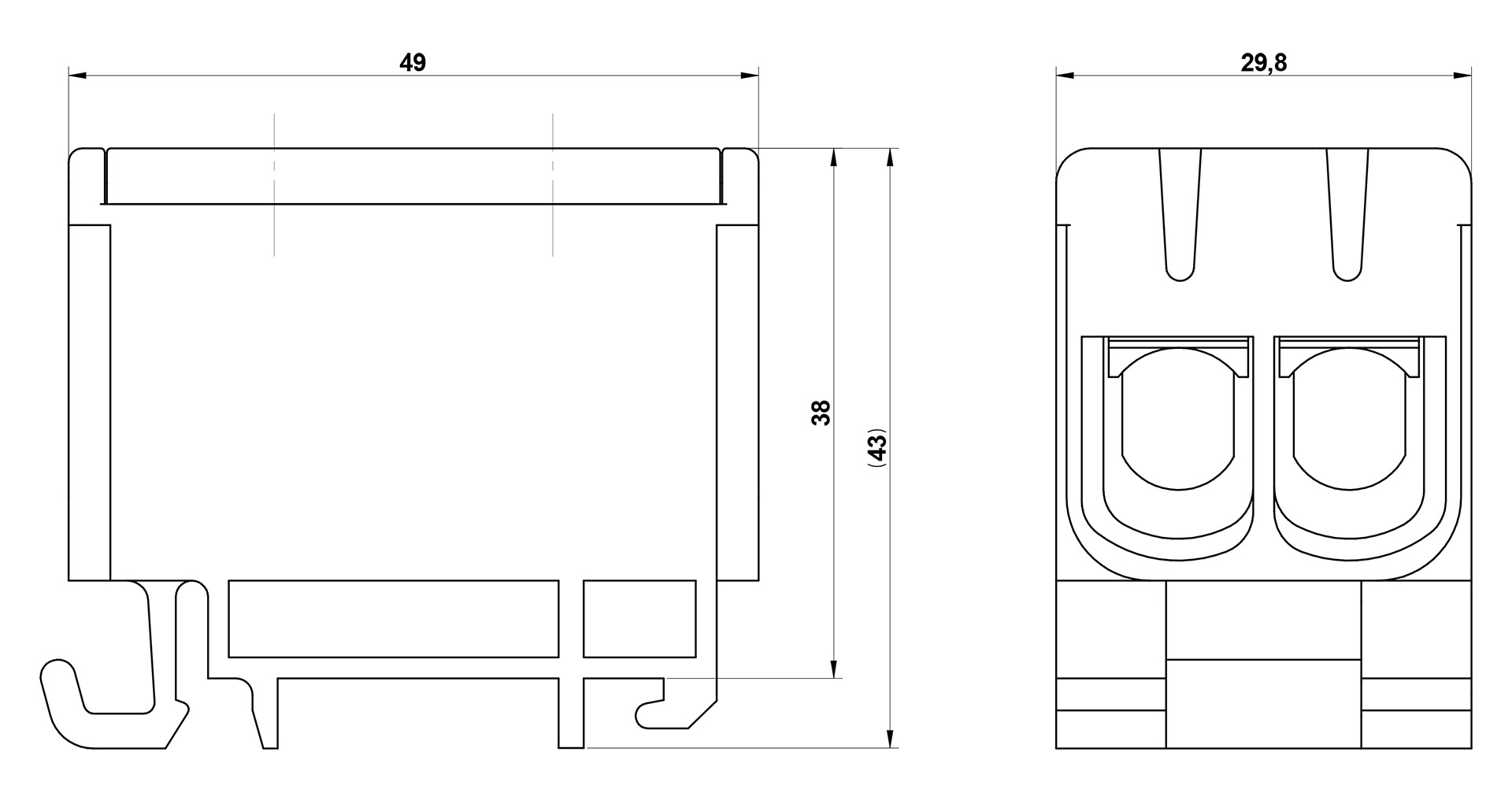

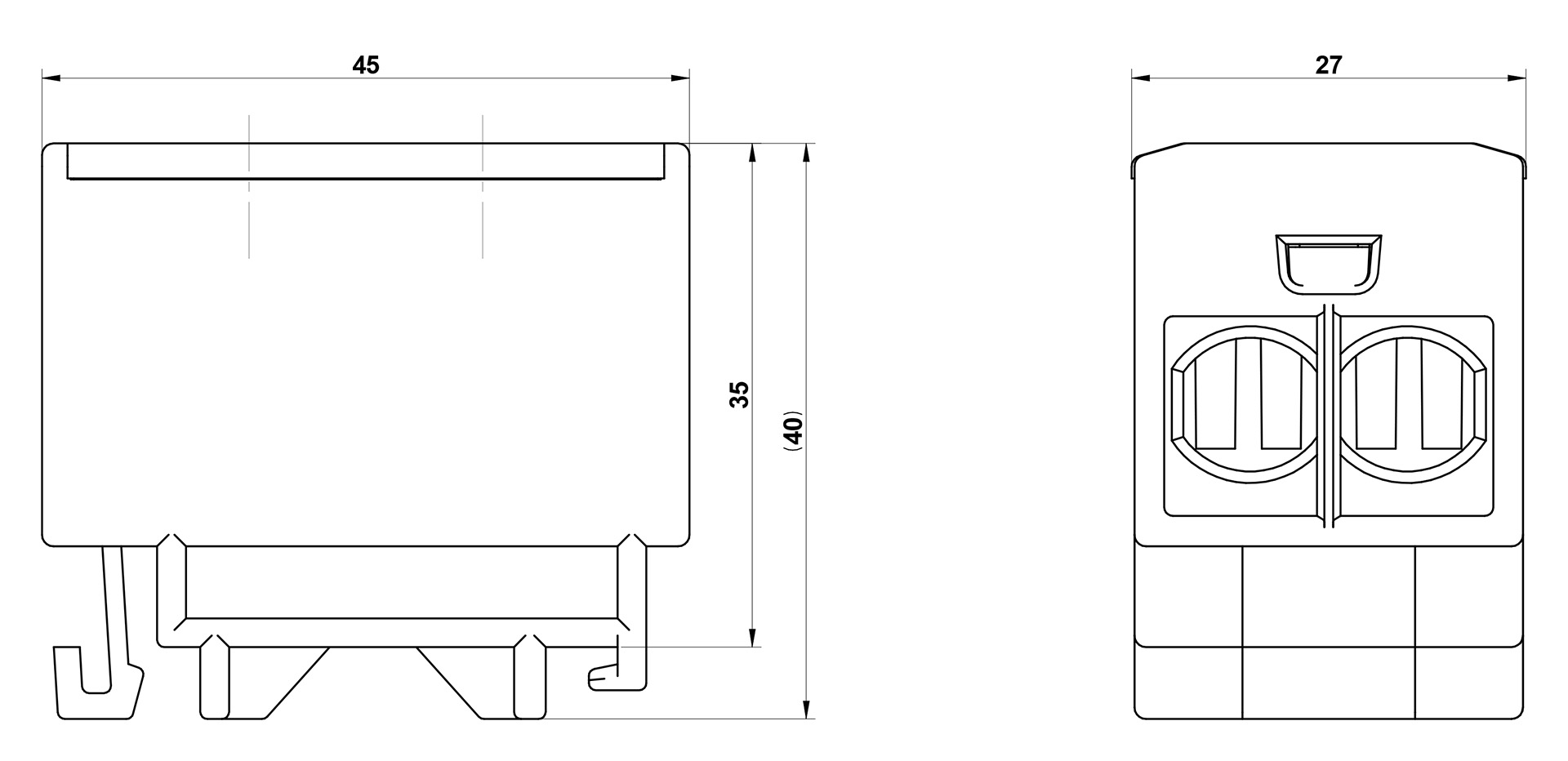

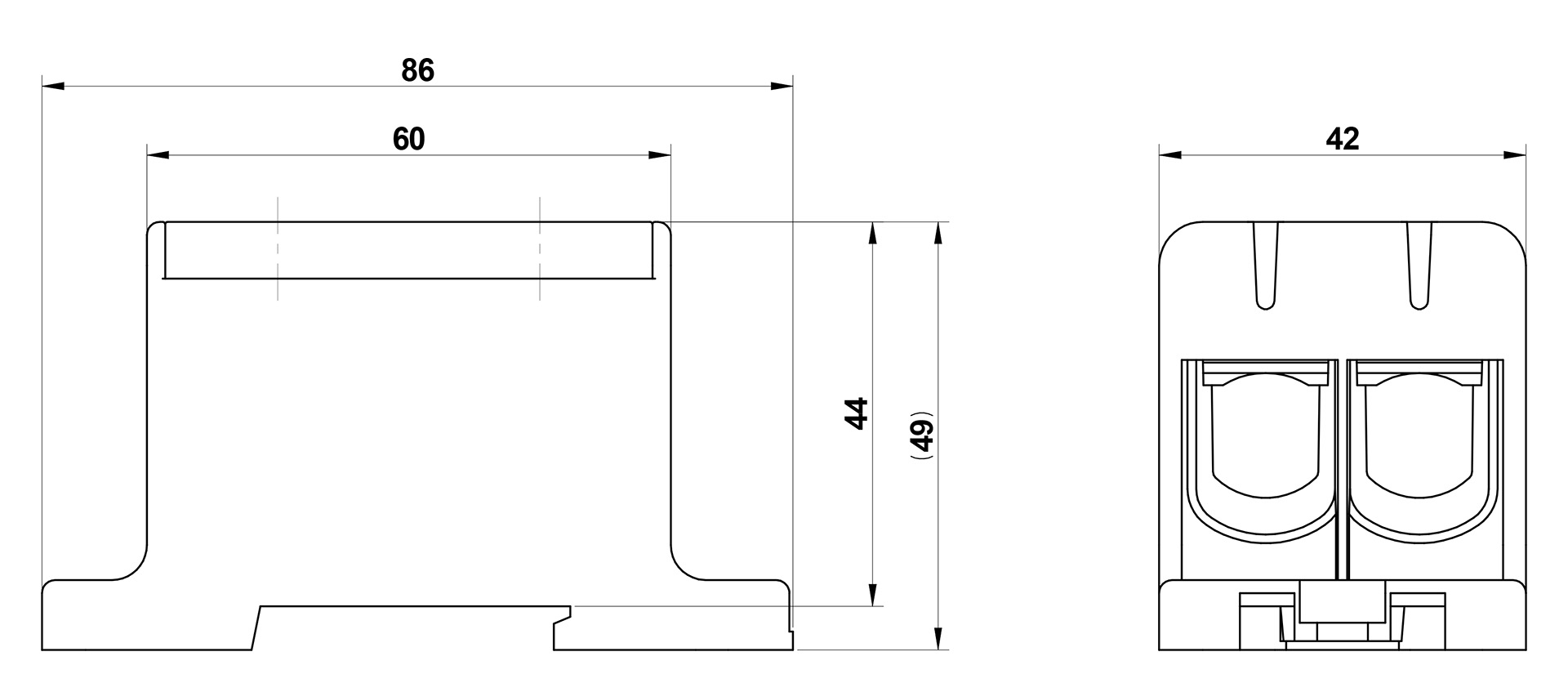

Connection capacity:

- Solid cable: 1,5 mm² / 35 mm²

- Flexible cable: 2,5 mm² / 25 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

4 Connection points

Executions:

CUAL35/2 A: Blue
CUAL35/2 T: Yellow-Green

Intensity: 270A(CU) 240A(AL)

Tightening torque: 6 Nm

Metrics: M4

Poles: 1P

Color: GREY

IP Grade: IP20

Connection capacity:

- Solid cable: 1,5 mm² / 50 mm²

- Flexible cable: 2,5 mm² / 35 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

4 Connection points

Executions:

CUAL50/2 A: Blue

CUAL50/2 T: Yellow-Green

Intensity: 320A(CU) 290A(AL)

Tightening torque: 10 Nm

Metrics: M5

Poles: 1P

Color: GREY

IP Grade: IP20

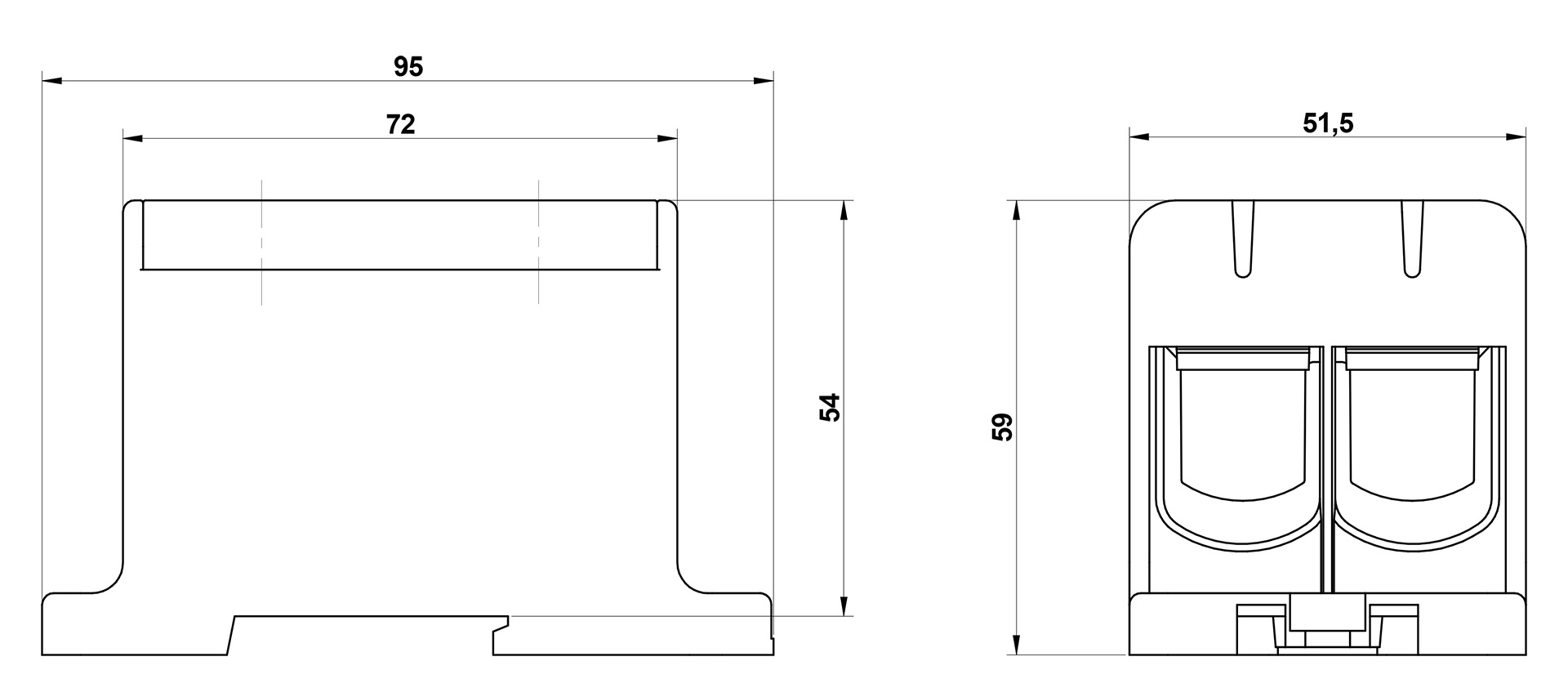

Connection capacity:

- Solid cable: 16 mm² / 95 mm²

- Flexible cable: 16 mm² / 70 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

4 Connection points

Executions:

CUAL95/2 A: Blue
CUAL95/2 T: Yellow-Green

Intensity: 490A(CU) 440A(AL)

Tightening torque: 20 Nm

Metrics: M5

Poles: 1P

Color: GREY

IP Grade: IP20

Connection capacity:

- Solid cable: 35 mm² / 150 mm²

- Flexible cable: 35 mm² / 120 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

4 Connection points

Executions:

CUAL150/2 A: Blue
CUAL150/2 T: Yellow-Green

Intensity: 640A(CU) 580A(AL)

Tightening torque: 30 Nm

Metrics: M8

Poles: 1P

Color: GREY

IP Grade: IP20

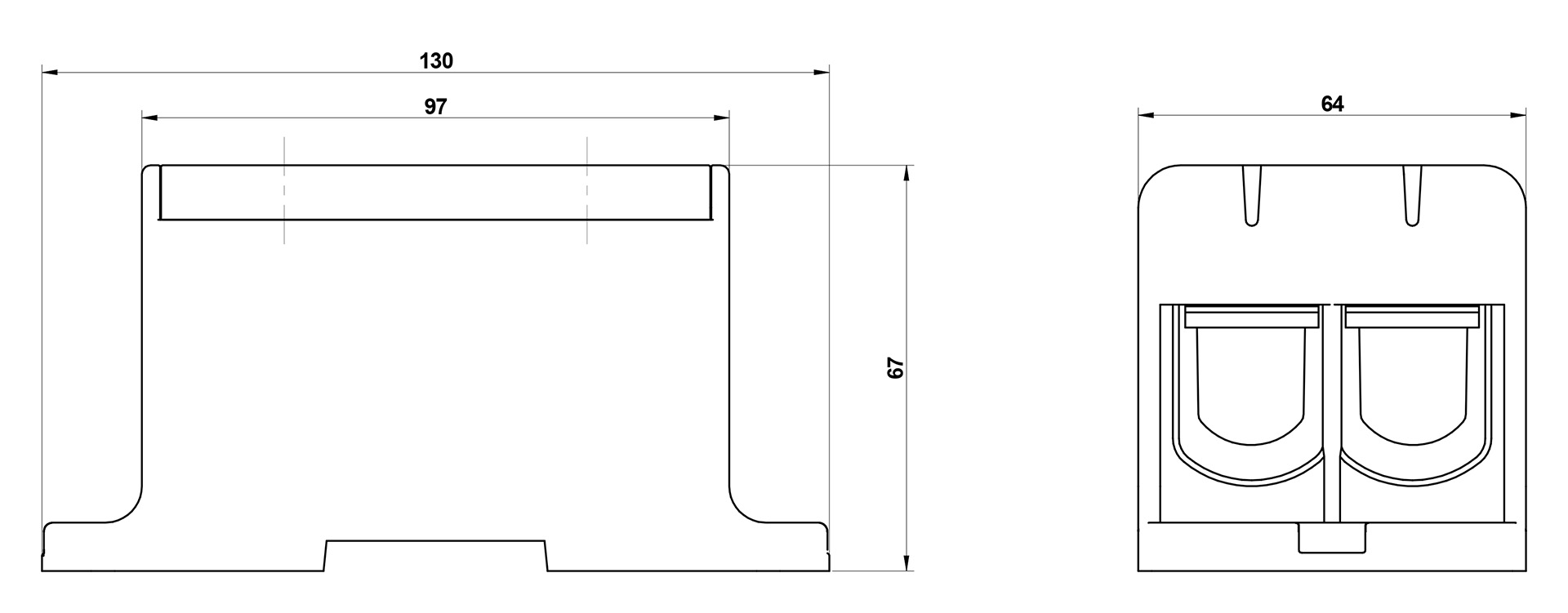

Connection capacity:

- Solid cable: 35 mm² / 240 mm²

- Flexible cable: 35 mm² / 185 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

4 Connection points

Executions:

CUAL240/2 A: Blue
CUAL240/2 T: Yellow-Green

Intensity: 850A(CU) 760A(AL)

Tightening torque: 40 Nm

Metrics: M8

Poles: 1P

Color: GREY

IP Grade: IP20

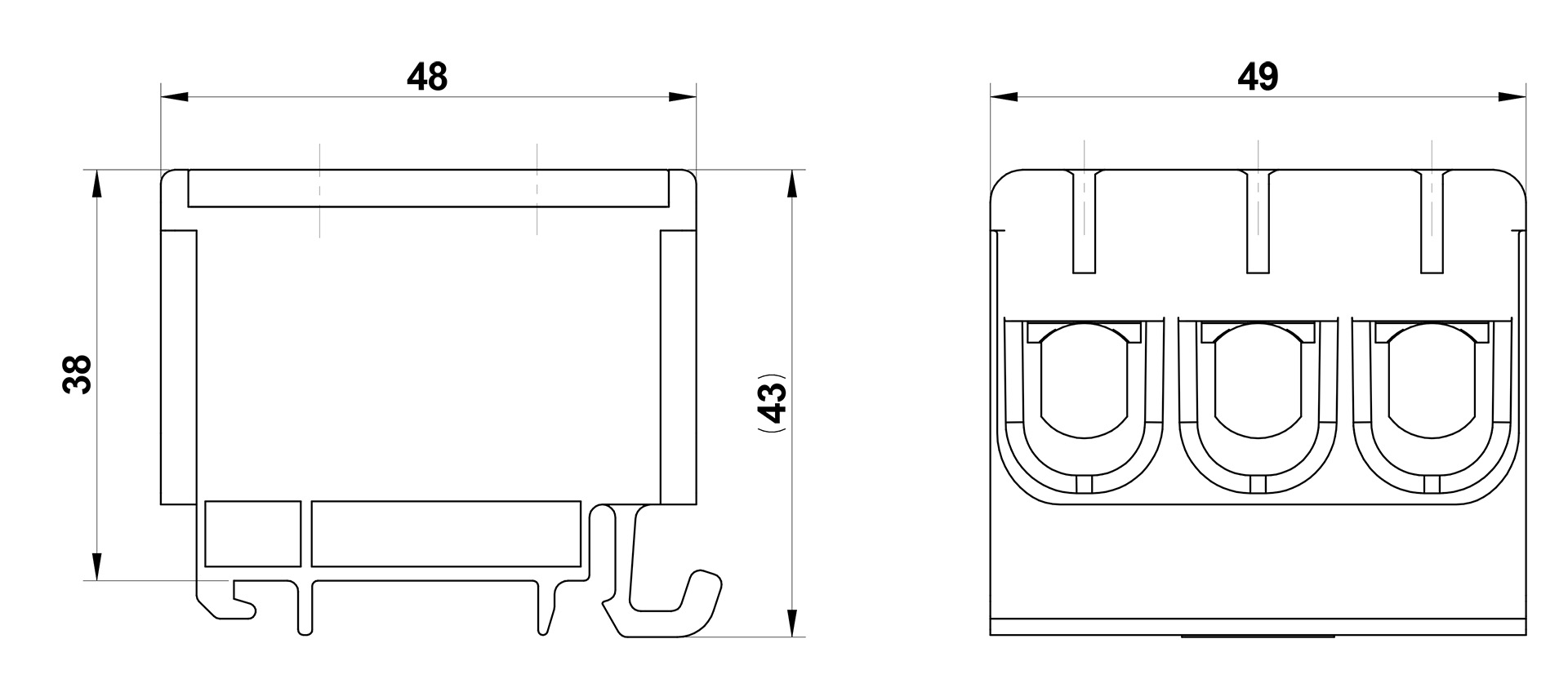

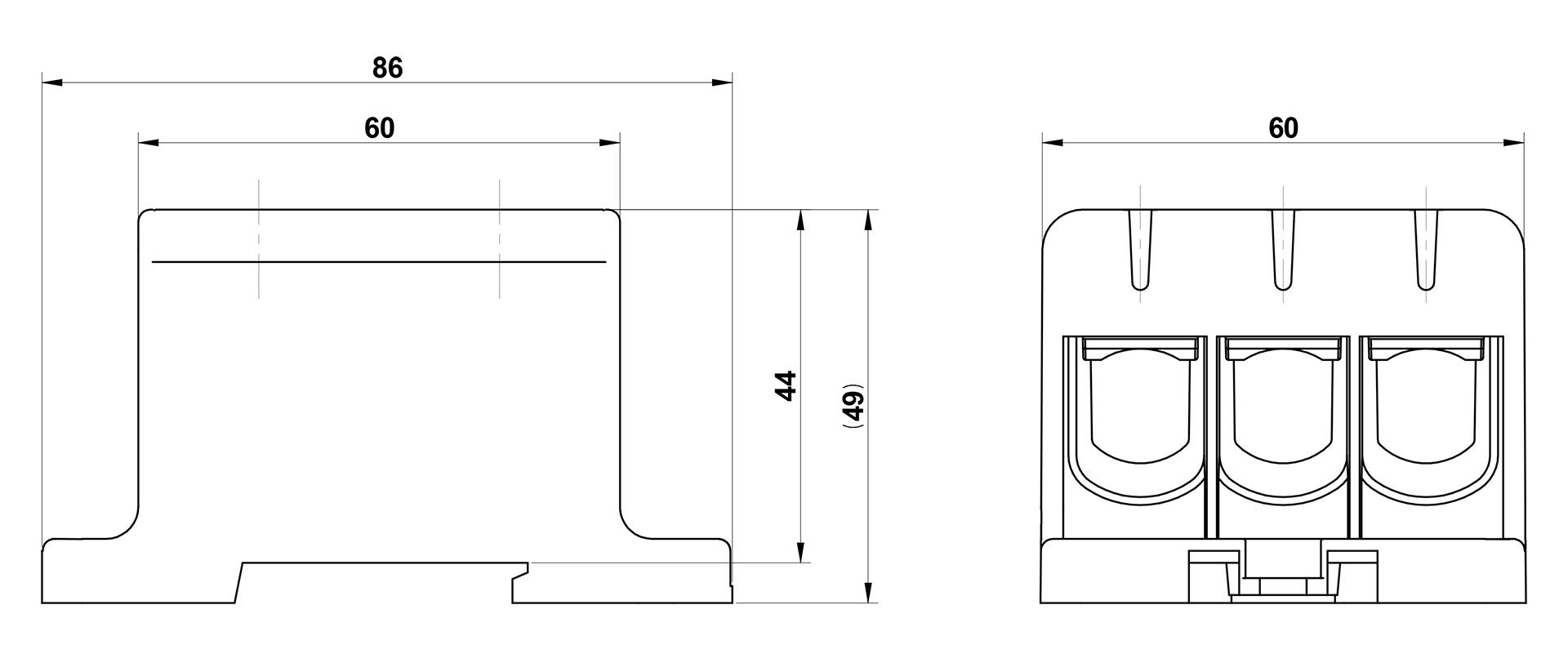

Connection capacity:

- Solid cable: 1,5 mm² / 50 mm²

- Flexible cable: 2,5 mm² / 35 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

6 Connection points

Executions:

CUAL50/3 A: Blue

CUAL50/3 T: Yellow-Green

Intensity: 320A(CU) 290A(AL)

Tightening torque: 10 Nm

Metrics: M5

Poles: 1P

Color: GREY

IP Grade: IP20

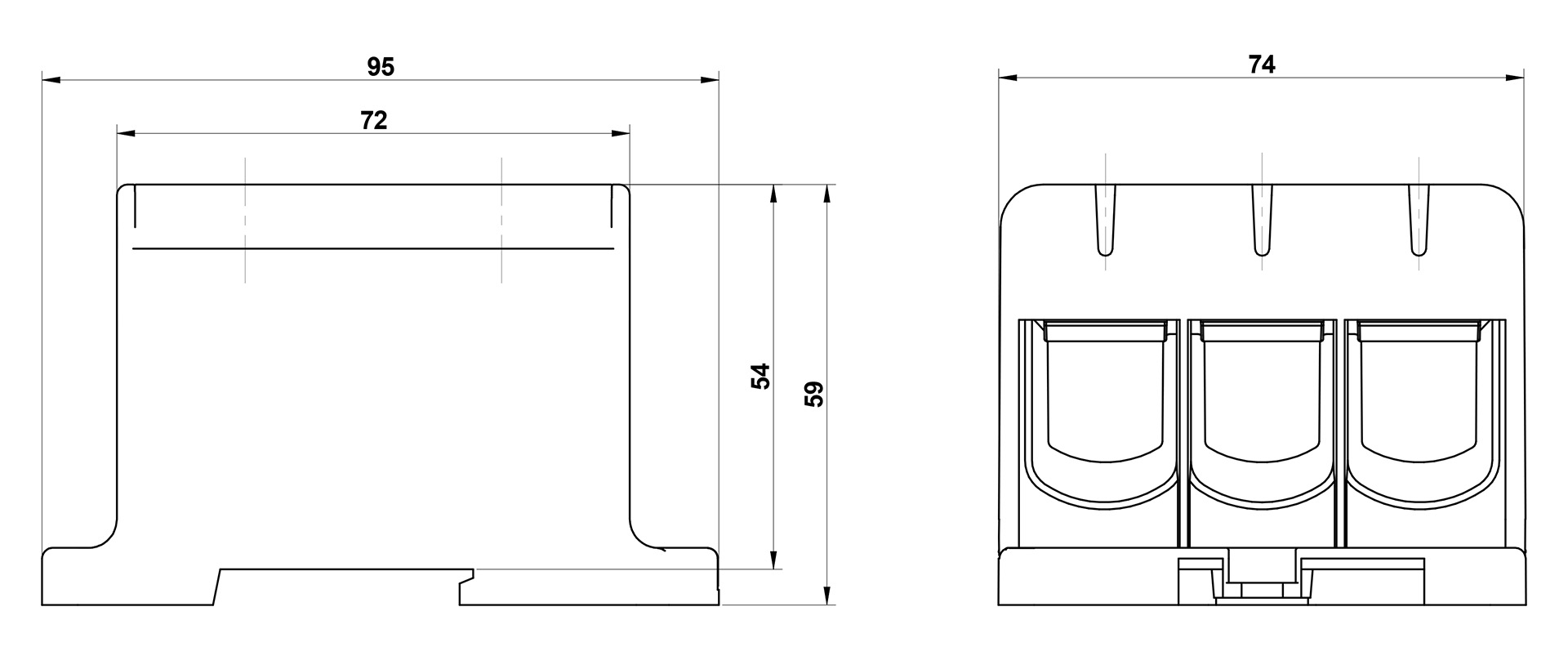

Connection capacity:

- Solid cable: 16 mm² / 95 mm²

- Flexible cable: 16 mm² / 70 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

6 Connection points

Executions:

CUAL95/3 A: Blue
CUAL95/3 T: Yellow-Green

Intensity: 490A(CU) 440A(AL)

Tightening torque: 20 Nm

Metrics: M5

Poles: 1P

Color: GREY

IP Grade: IP20

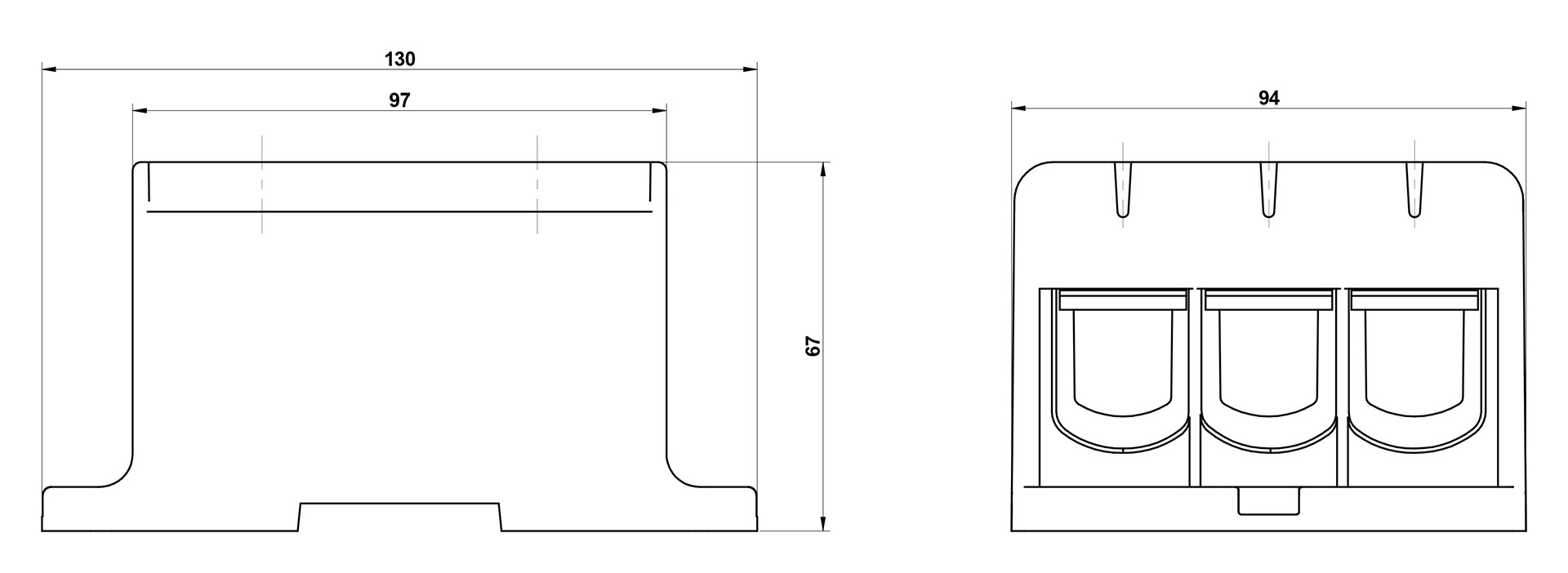

Connection capacity:

- Solid cable: 35 mm² / 150 mm²

- Flexible cable: 35 mm² / 120 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

6 Connection points

Executions:

CUAL150/3 A: Blue
CUAL150/3 T: Yellow-Green

Intensity: 640A(CU) 580A(AL)

Tightening torque: 30 Nm

Metrics: M8

Poles: 1P

Color: GREY

IP Grade: IP20

Connection capacity:

- Solid cable: 35 mm² / 240 mm²

- Flexible cable: 35 mm² / 185 mm²

Voltage: 1000V

Temperature: 80ºC

Constructive:

6 Connection points

Executions:

CUAL240/3 A: Blue
CUAL240/3 T: Yellow-Green

Intensity: 850A(CU) 760A(AL)

Tightening torque: 40 Nm

Metrics: M8

Poles: 1P

Color: GREY

IP Grade: IP20
