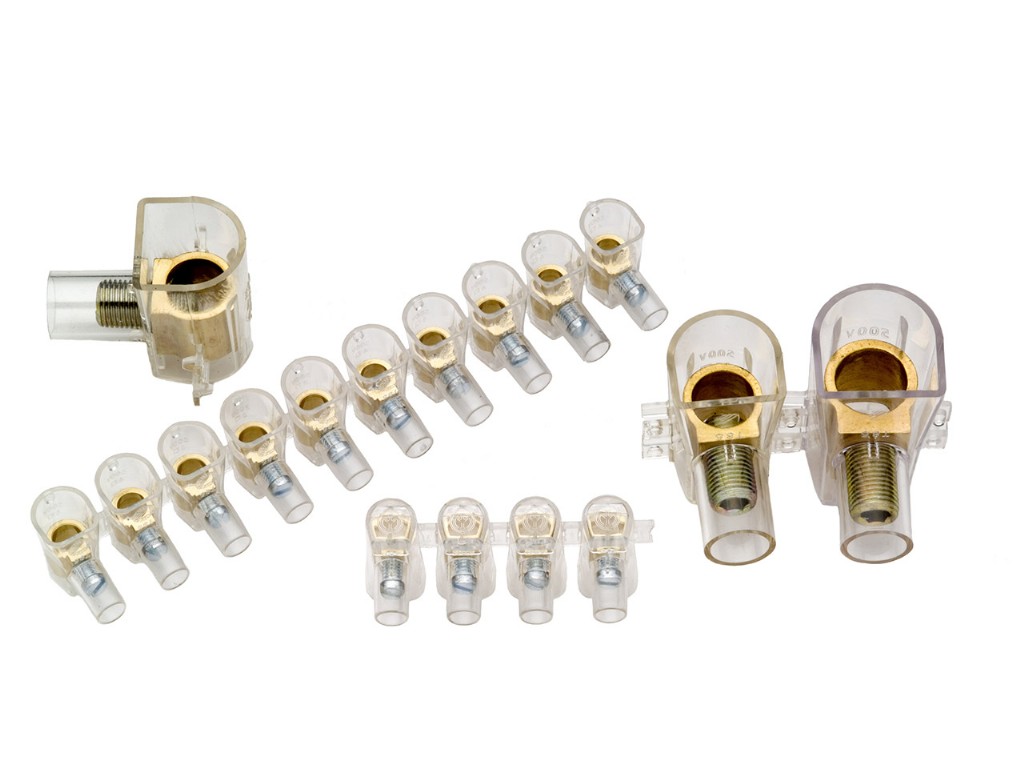

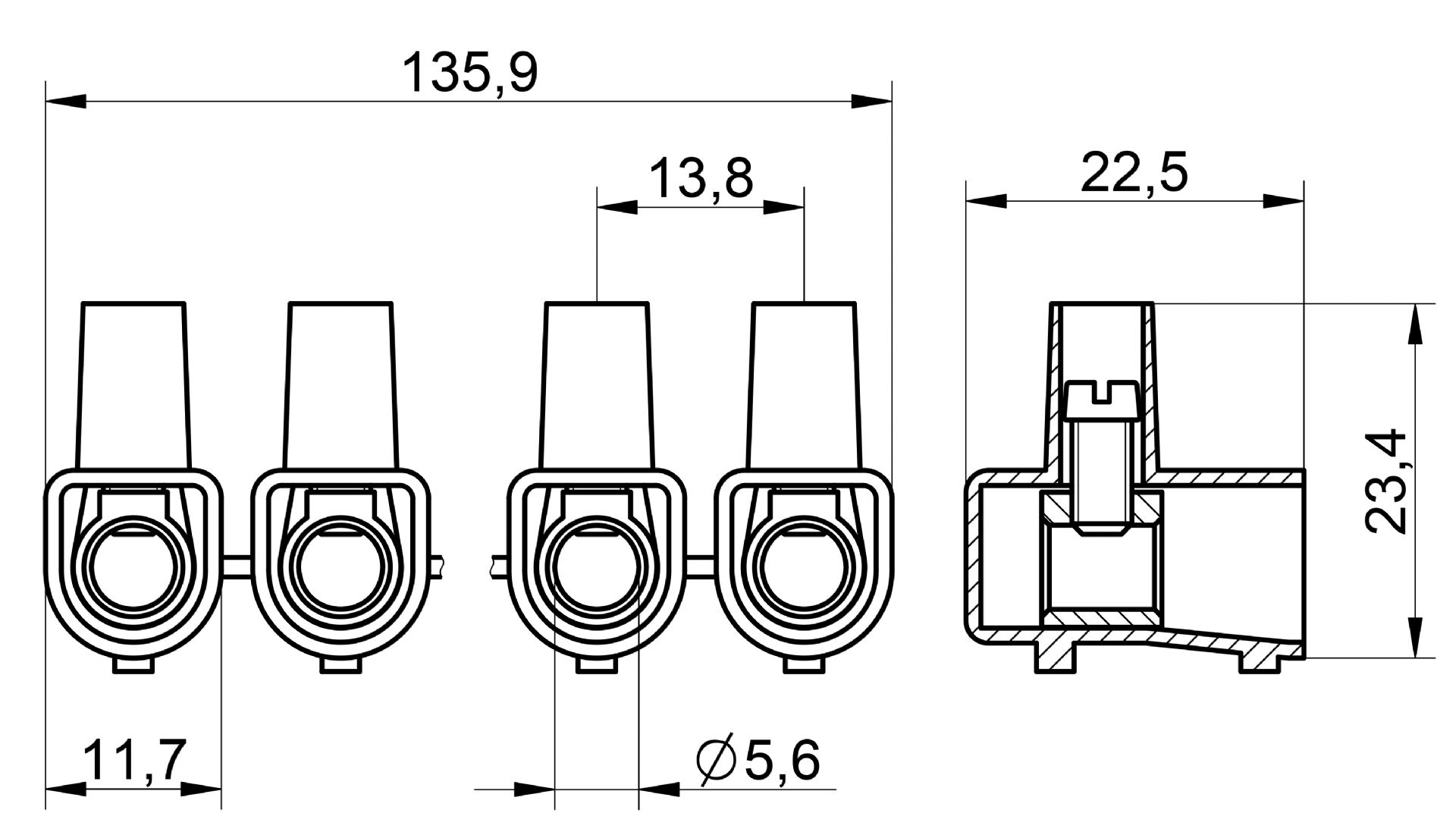

Insulated terminal block - 500

Tekox

Regleta de conexión volante 500

500

Insulated connector used to make connections in a fast and safety way.

CE
ROHS
Raw materials

- Moulding: transparent polycarbonate. V2 (according to UL94).
- Insert: brass.
- Screws: zinc-plated steel. Metric thread.

Constructive characteristics

- Standard models: 10 poles.
- Easy separation between the conector to have the number of poles available.
- Models 525 and 535 are unipolare easy joined.
- The transparency of insulating body get to an inmediate check of the connection.
- Models 525 and 535 with allen screw.
- Captive screw.
- Raised screws providing an easier insertion of the conductor.
- Halogen free products.

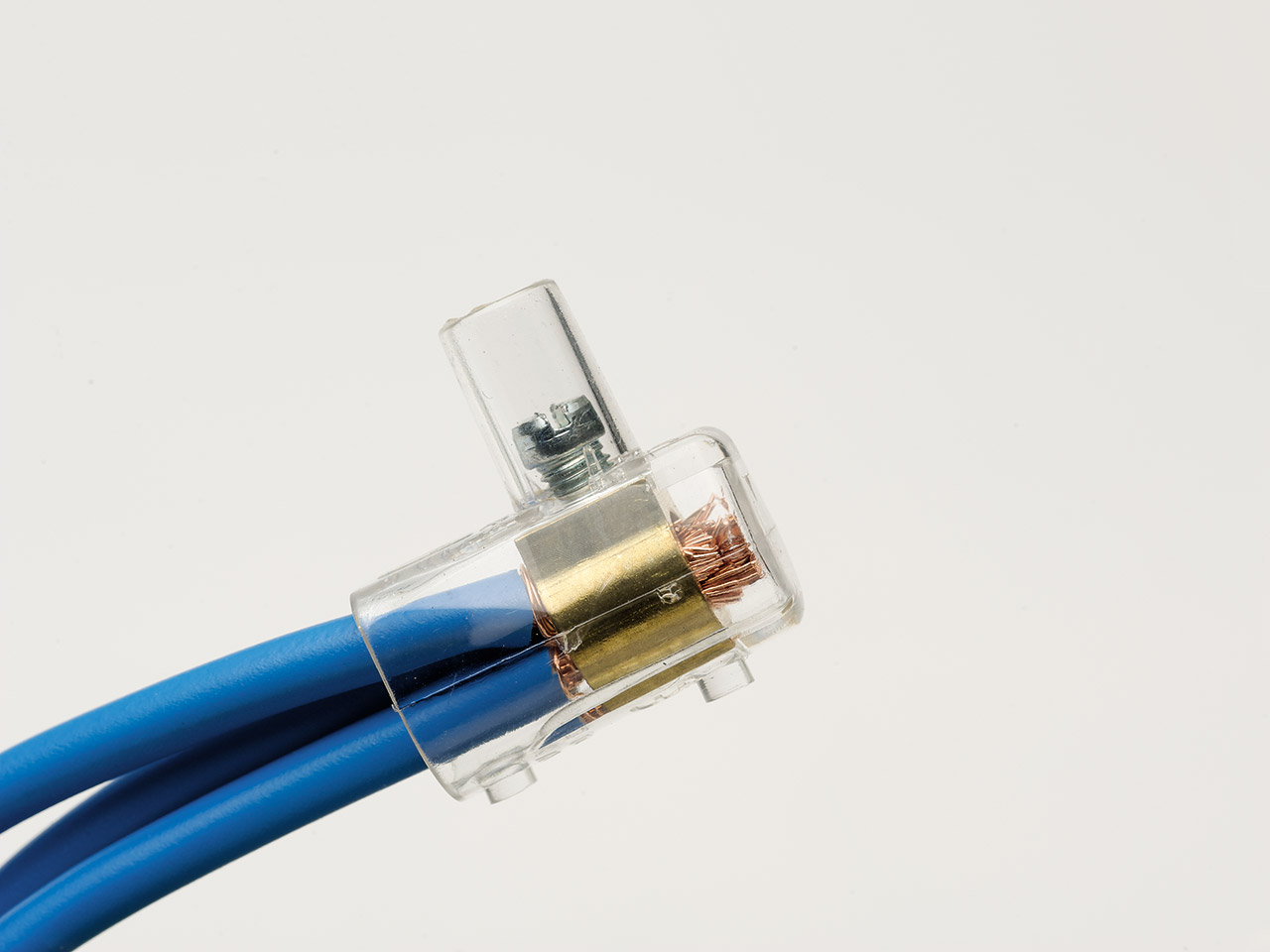

Regletas de conexión tipo "capuchón"

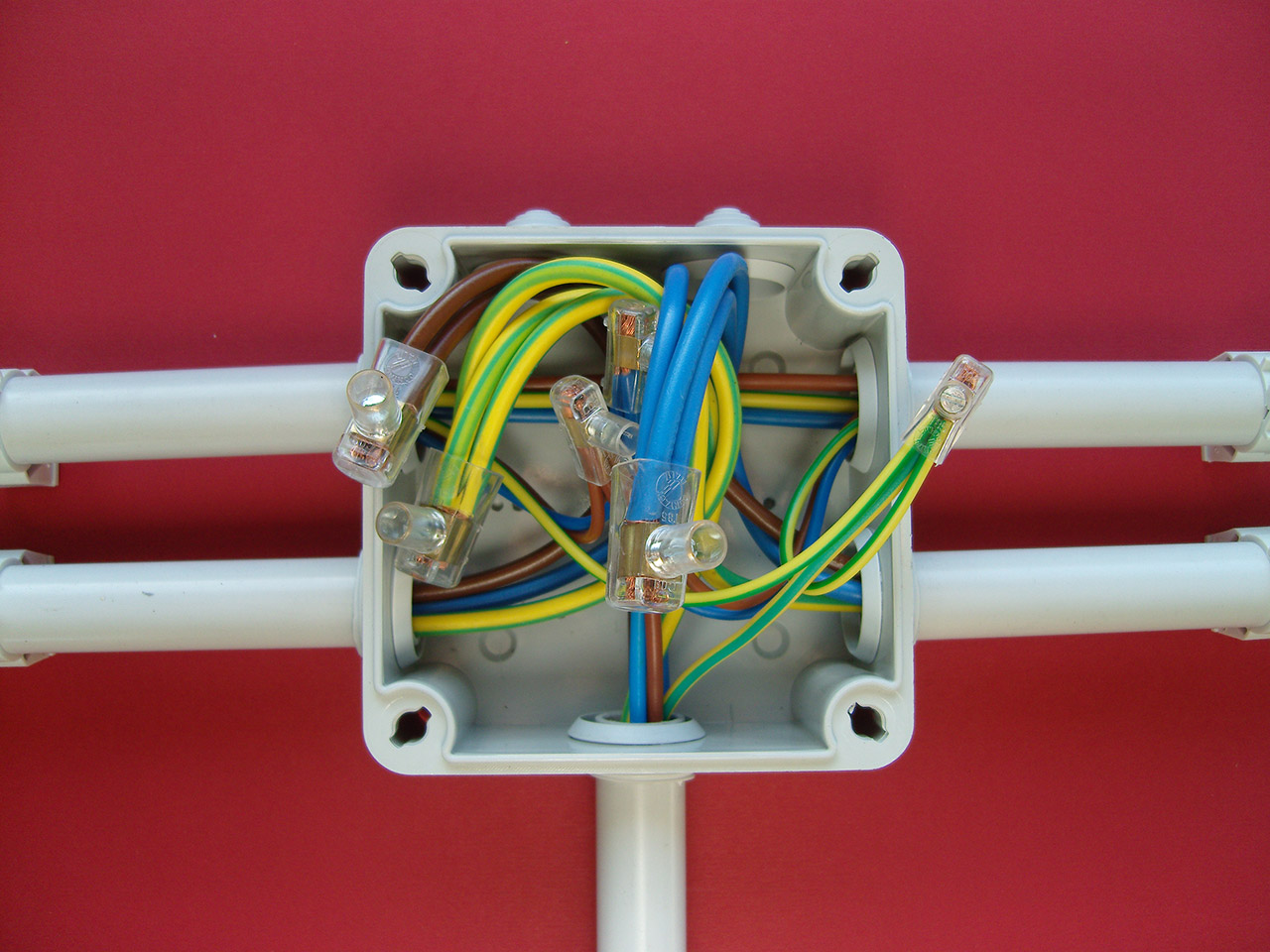

Pensada para realizar conexiones eléctricas con conductores de cobre en cajas de derivación.

Diseñados para una mayor rapidez en el montaje de nuevas instalaciones evitando falsos contactos por el excesivo pelado de los conductores.

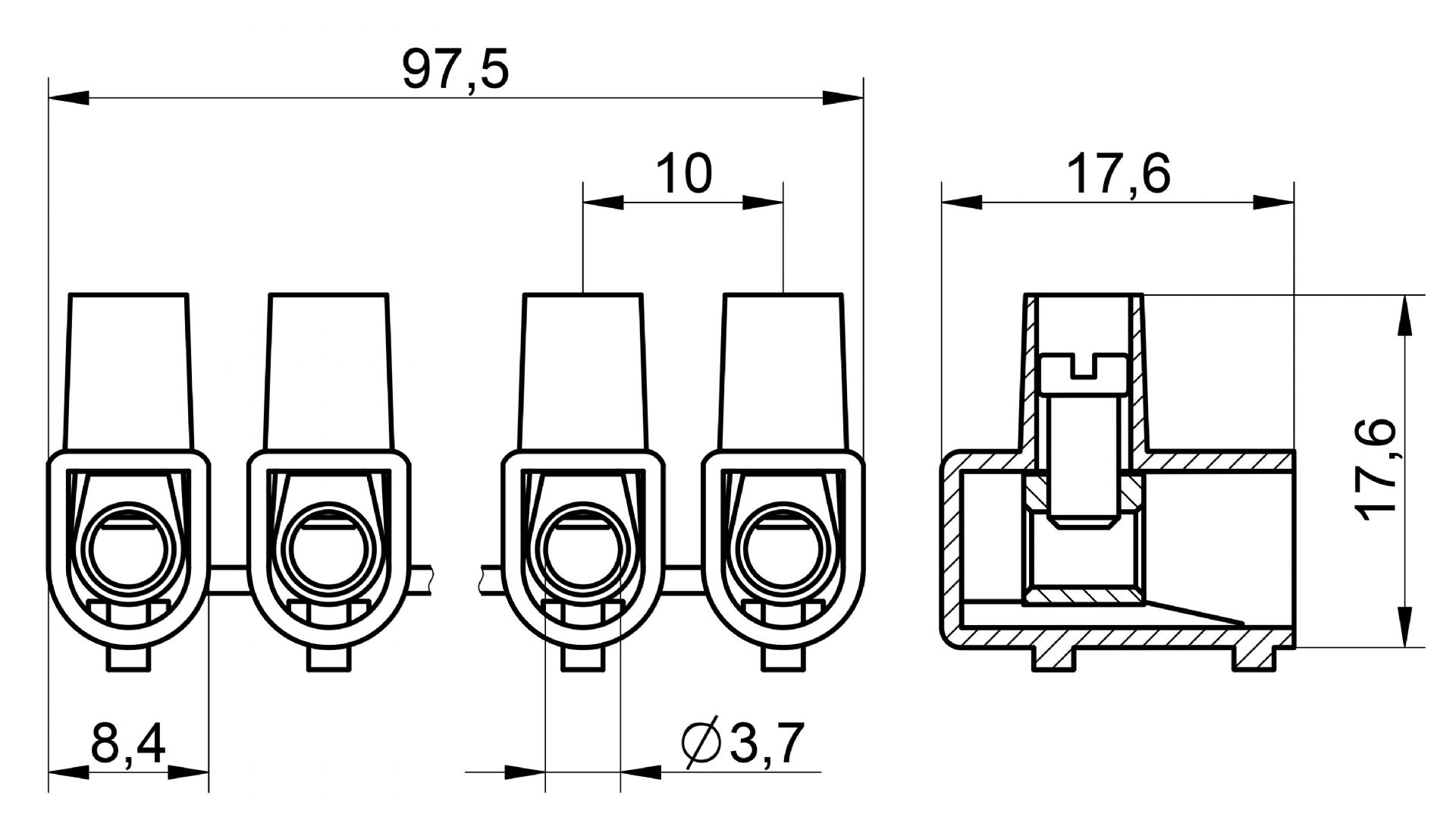

502

Regleta de Conexión Aérea

Connection capacity:

- Solid cable: 2,5 mm² / 1 mm²

- Flexible cable: 2,5 mm² / 1 mm²

Voltage: 450V

Temperature: 85ºC

Constructive:

- Standard models:10 poles.
- Easy separation between the connectorsto form the number of poles available.
- The transparency of the insulating body gets to an immediate check of the connection.
- Captive screws.
- Raised screws, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 24A

Tightening torque: 0,8 Nm

Metrics: M 3,5

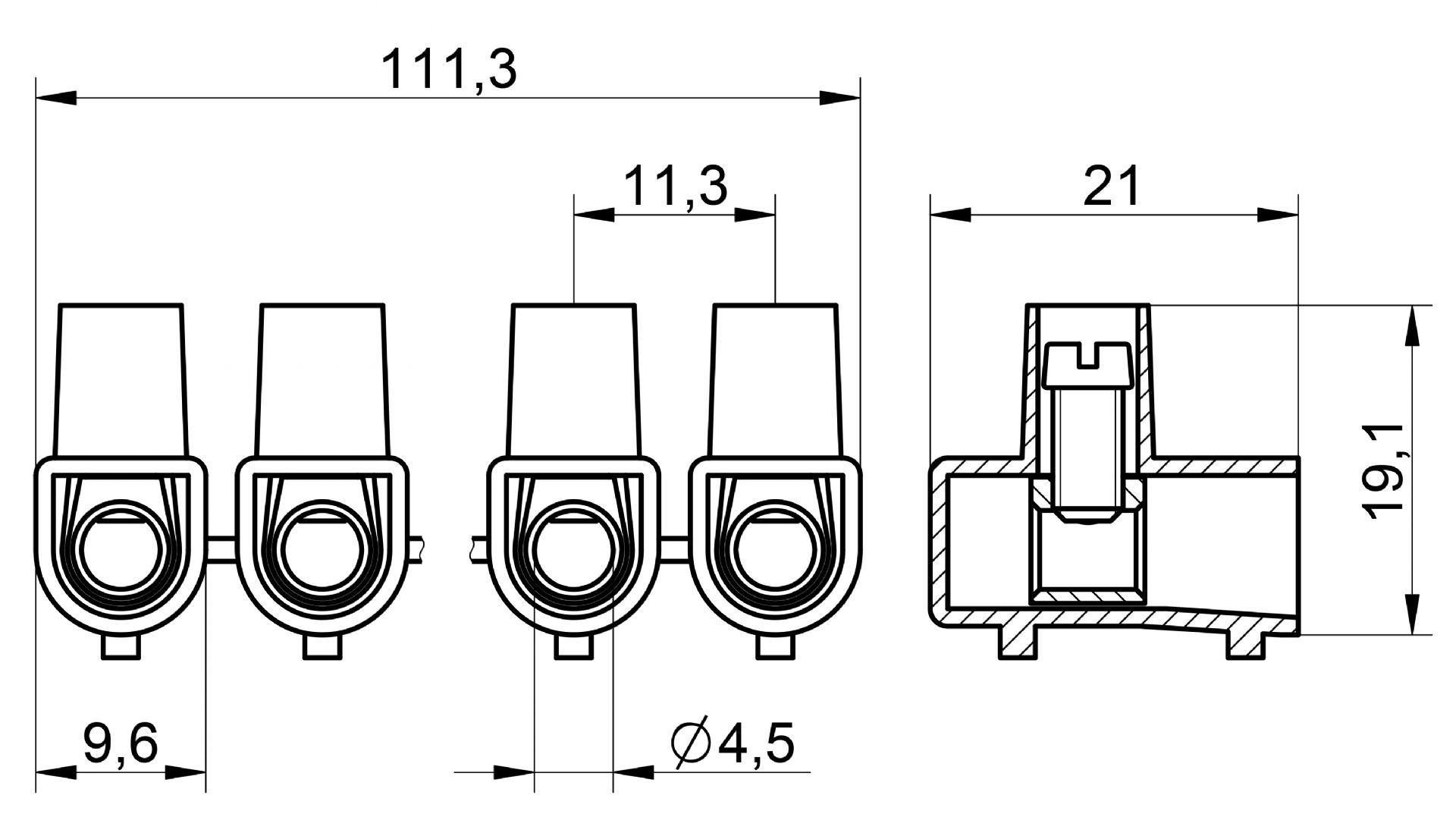

504

Regleta de Conexión Aérea

Connection capacity:

- Solid cable: 4 mm² / 1,5 mm²

- Flexible cable: 4 mm² / 1,5 mm²

Voltage: 450V

Temperature: 85ºC

Constructive:

- Standard models:10 poles.
- Easy separation between the connectorsto form the number of poles available.
- The transparency of the insulating body gets to an immediate check of the connection.
- Captive screws.
- Raised screws, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 32A

Tightening torque: 1,2 Nm

Metrics: M 4

506

Regleta de Conexión Aérea

Connection capacity:

- Solid cable: 6 mm² / 2,5 mm²

- Flexible cable: 6 mm² / 2,5 mm²

Voltage: 500V

Temperature: 85ºC

Constructive:

- Standard models:10 poles.
- Easy separation between the connectorsto form the number of poles available.
- The transparency of the insulating body gets to an immediate check of the connection.
- Captive screws.
- Raised screws, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 41A

Tightening torque: 1,2 Nm

Metrics: M 4

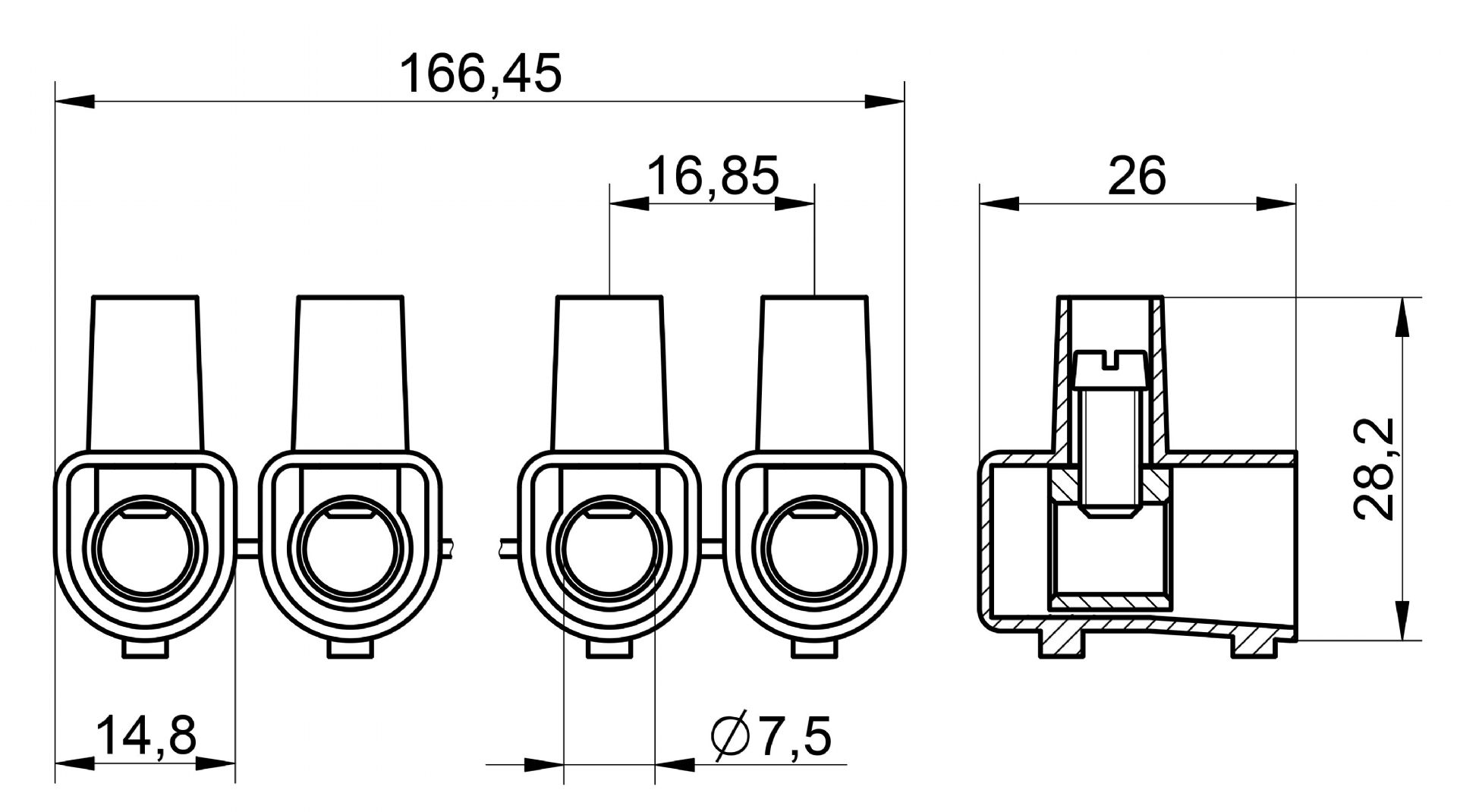

510

Regleta de Conexión Aérea

Connection capacity:

- Solid cable: 10 mm² / 4 mm²

- Flexible cable: 6 mm² / 4 mm²

Voltage: 500V

Temperature: 85ºC

Constructive:

- Standard models:10 poles.
- Easy separation between the connectorsto form the number of poles available.
- The transparency of the insulating body gets to an immediate check of the connection.
- Captive screws.
- Raised screws, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 57A

Tightening torque: 2 Nm

Metrics: M 5

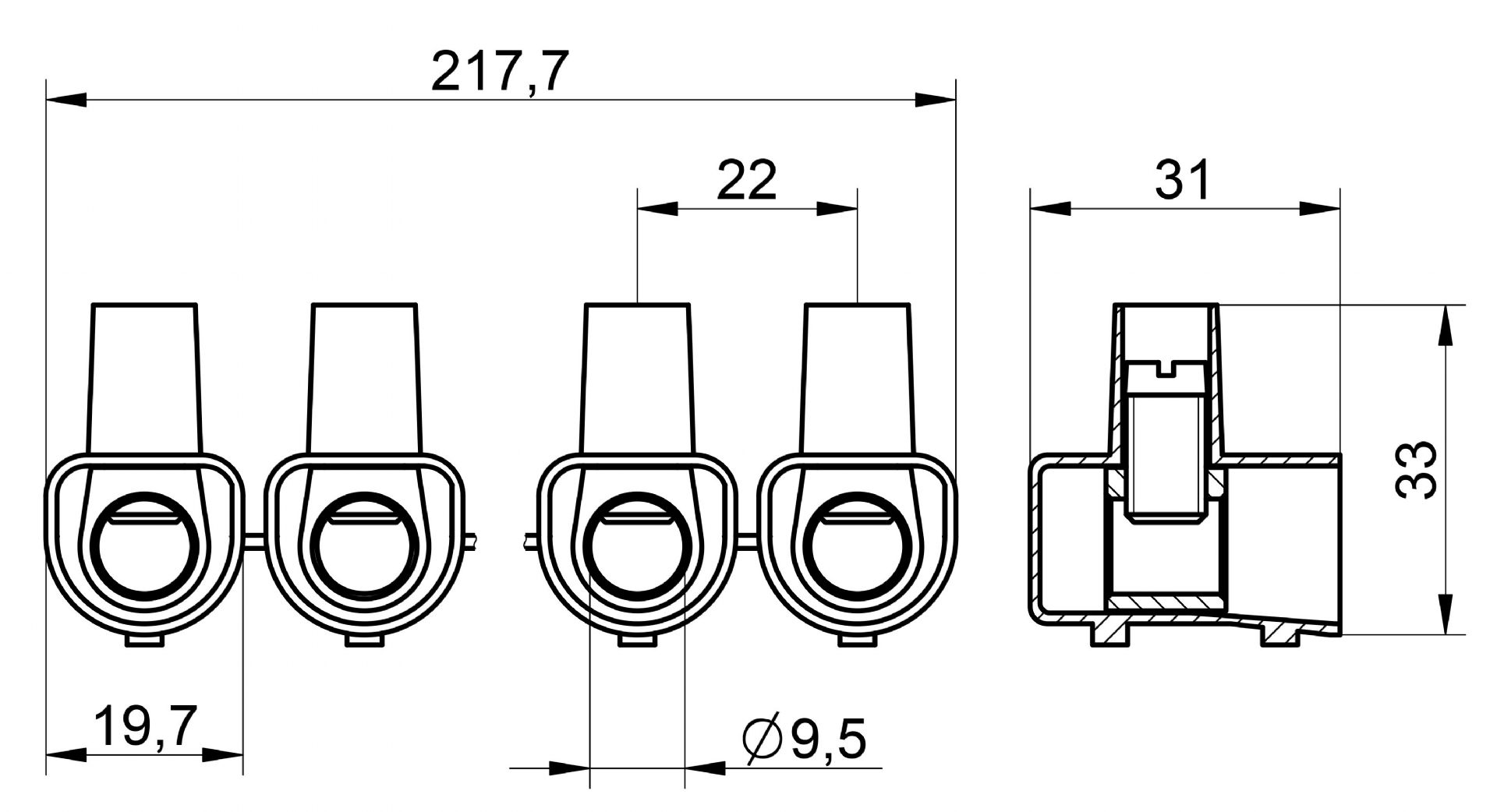

516

Regleta de Conexión Aérea

Connection capacity:

- Solid cable: 16 mm² / 6 mm²

- Flexible cable: 10 mm² / 4 mm²

Voltage: 500V

Temperature: 85ºC

Constructive:

- Standard models:10 poles.
- Easy separation between the connectorsto form the number of poles available.
- The transparency of the insulating body gets to an immediate check of the connection.
- Captive screws.
- Raised screws, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 76A

Tightening torque: 3,5 Nm

Metrics: M 8

525

Regleta de conexión Unipolar Aérea

Connection capacity:

- Solid cable: 25 mm² / 10 mm²

- Flexible cable: 16 mm² / 6 mm²

Voltage: 500V

Temperature: 85ºC

Constructive:

- Standard models:one-pole.
- Easily joined.
- The transparency of the insulating body gets to an immediate check of the connection.
- Captive screw.
- Raised screw, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 101A

Tightening torque: 4 Nm

Metrics: M 10

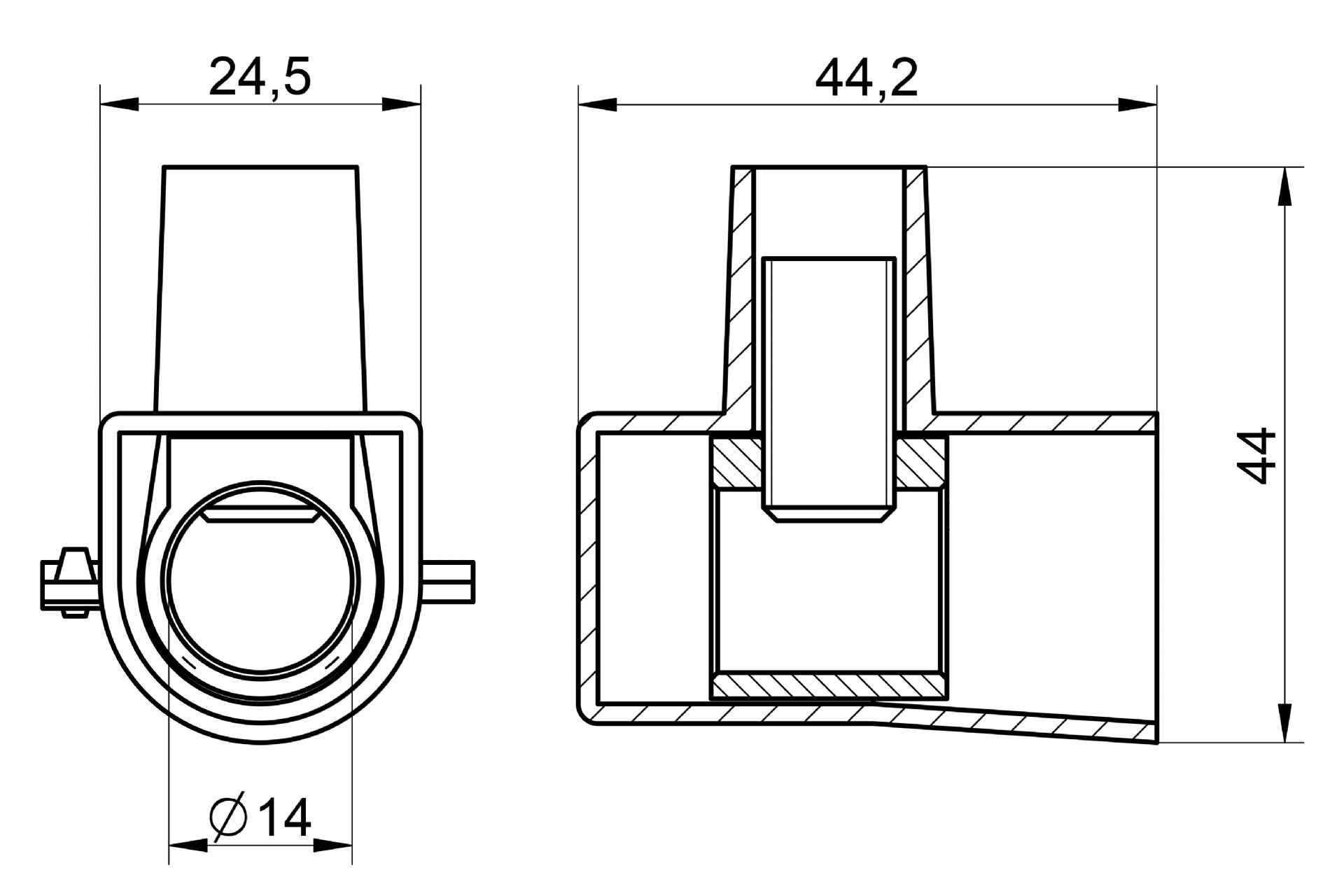

535

Regleta de conexión Unipolar Aérea

Connection capacity:

- Solid cable: 35 mm² / 16 mm²

- Flexible cable: 25 mm² / 10 mm²

Voltage: 500V

Temperature: 85ºC

Constructive:

- Standard models:one-pole .
- Easily joined.
- The transparency of the insulating body gets to an immediate check of the connection.
- Captive screw.
- Raised screw, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 125A

Tightening torque: 4 Nm

Metrics: M 10
