Conexión rápida para equipos 3200

Venta/distribuidor/mayorista Conectores sin tornillos para el cableado interior de equipos de iluminación y eléctricos. Conexión rápida para equipos 3100
Push-in Fast

Push-in fast connectors used as component in lighting and electrical devices.

CE
AENOR
ENEC 01
HALOGEN FREE
ROHS
Raw materials

- Moulding: polycarbonate V2, white colour (according to UL94).
- Insert: Tinned steel / tinned copper.
- Types of earthing: TT, tinned steel / TI, bronze.

Constructive characteristics

- Technical features according to EN 60998.

3200 Series

Screw-less connectors on both appliance and installation sides used for making fast connection and disconnection.

Compatible with automatic assembly robots.

Printing upon request.

Rapid and screw tag.

3202

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 2

Pin: NO

3202 A

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 2

Pin: YES

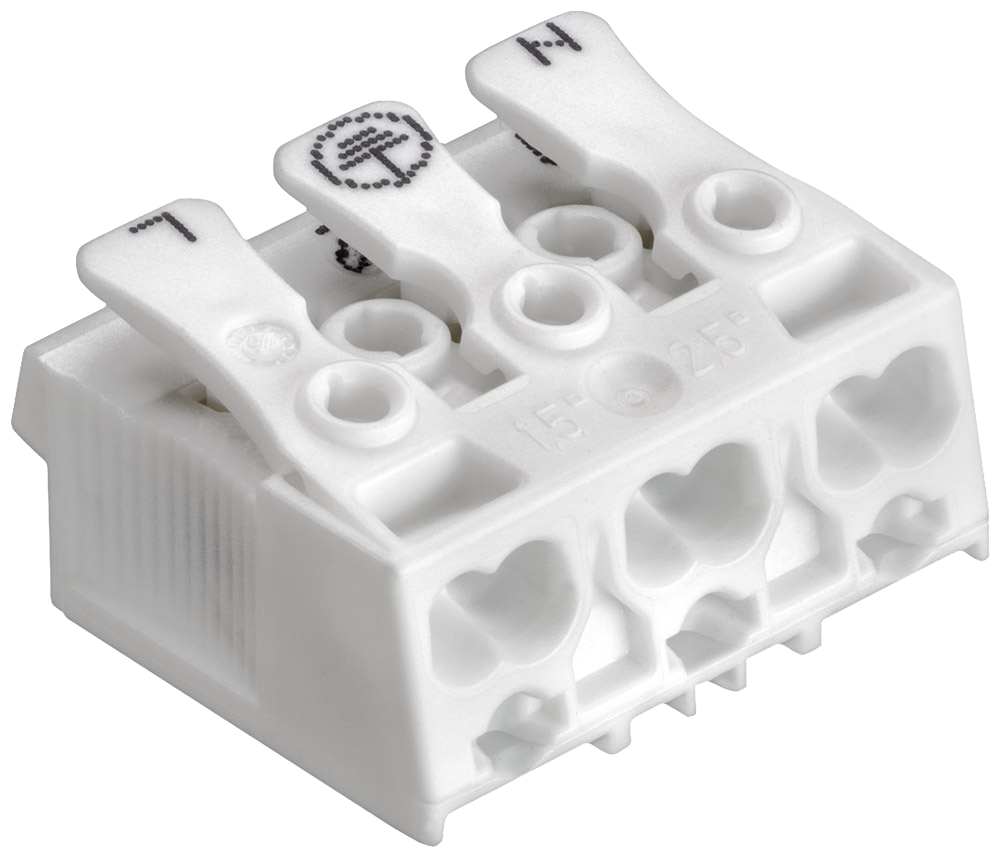

3203

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Pin: NO

3203 TT

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Earth: screw earth tag

Pin: NO

3203 A

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Pin: YES

3203 A TI

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Earth: rapid earth tag

Pin: YES

3203 A TT

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 3

Earth: screw earth tag

Pin: YES

3204

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Pin: NO

3204 TT

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: screw earth tag

3204 A

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Pin: YES

3204 A TI

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: rapid earth tag

Pin: YES

3204 A TT

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 4

Earth: screw earth tag

Pin: YES

3205

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Pin: NO

3205 TT

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Earth: screw earth tag

Pin: NO

3205 A

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Pin: YES

3205 A TI

Push-In Fast Connectors

Connection capacity:

- Appliance side: 2 x 2,5 mm² / 0,5 mm² (solid)
- Installation side: 0,75 x 2,5 mm² (solid)/ 1,5 x 2,5 mm² flexible

Voltage: 450 V

Temperature: 85ºC

Constructive:

- Halogen free products.
- Marking upon request.
- Can be fixed by pin or by screw.

Intensity: 24 A

Poles: 5

Earth: rapid earth tag

Pin: YES
