BCS

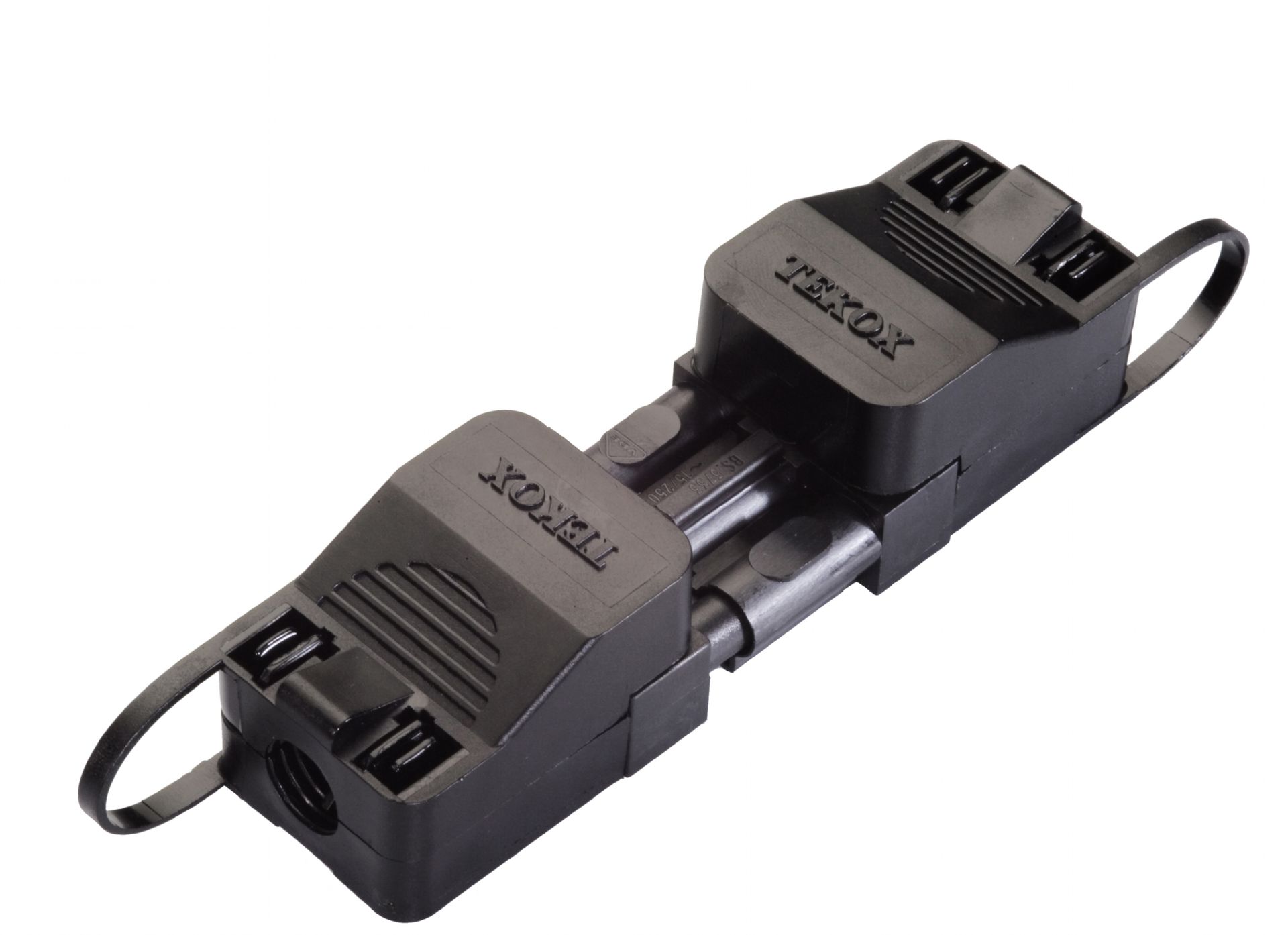

Series BCS

Plug - in connectors used as a component in appliances or in electrical installations.

CE
HALOGEN FREE
ROHS
Raw materials

- Moulding: Polyamide 6. V2 (according to UL94).
- Insert: tin-plated brass.
- Screws: zinc-plated steel. Metric thread.

Constructive characteristics

- IP 40 rated when plug and socket are connected according to EN 60529. Technical features according to EN61984.
- Glow-wire test 850ºC according to EN 60695-2-11.

Fast and secure connections

Used for making coonections, in a faster and safer way, in lighting appliances and permanent and temporary electrical installations.

The cable assemblies could be mounted in advance to save time during the connection.

BCS-2/M-G

Plug connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles

Type: Connector

Color: Grey

BCS-2/H-G

Socket connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles

Type: Connector

Color: Grey

BCS-2/EM-G

Plug built-in connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles

Type: Built-in connector

Color: Grey

BCS-2/EH-G

Socket built-in connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles

Type: Built-in connector

Color: Grey

BCS-3/M-N

Plug connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Connector

Color: Black

BCS-3/M-B

Plug connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Connector

Color: White

BCS-3/H-N

Socket connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Connector

Color: Black

BCS-3/H-B

Socket connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Connector

Color: White

BCS-3/2M-N

Double entry plug connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Double entry connector

Color: Black

BCS-3/2H-N

Double entry socket connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Double entry connector

Color: Black

BCS-3/M1-N

Plug connector set

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug set

Color: Black

BCS-3/M1-B

Plug connector set

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug set

Color: White

BCS-3/H1-N

Socket set

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Socket set

Color: Black

BCS-3/H1-B

Socket set

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Socket set

Color: White

BCS-3/M2-N

Plug set with locking device

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug set

Color: Black

BCS-3/M2-B

Plug set with locking device

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug set

Color: White

BCS-3/H2-N

Socket set with locking device

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Socket set

Color: Black

BCS-3/H2-B

Socket set with locking device

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Socket set

Color: White

BCS-3T/M1-N

Plug set screwless cover

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug set

Color: Black

BCS-3T/M1-B

Plug set screwless cover

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug set

Color: White

BCS-3T/H1-N

Socket set screwless cover

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Socket set

Color: Black

BCS-3T/H1-B

Socket set screwless cover

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Socket set

Color: White

BCS-3T/M2-N

Plug set screwless cover with locking device

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug set

Color: Black

BCS-3T/M2-B

Plug set screwless cover with locking device

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug Set

Color: White

BCS-3T/H2-N

Socket set screwless cover with locking device

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Socket set

Color: Black

BCS-3T/H2-B

Socket set screwless cover with locking device

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Socket set

Color: White

BCS-3/EM-N

Built-in plug connector

Connection capacity:

- Solid cable: 0,5 mm² / 2,5 mm²

- Flexible cable: 0,5 mm² / 1,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Built-in connector

Color: Black

BCS-3/EM-B

Built-in plug connector

Connection capacity:

- Solid cable: 0,5 mm² / 2,5 mm²

- Flexible cable: 0,5 mm² / 1,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Built-in connector

Color: White

BCS-3/EH-N

Built-in socket connector

Connection capacity:

- Solid cable: 0,5 mm² / 2,5 mm²

- Flexible cable: 0,5 mm² / 1,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Built-in connector

Color: Black

BCS-3/EH-B

Built-in socket connector

Connection capacity:

- Solid cable: 0,5 mm² / 2,5 mm²

- Flexible cable: 0,5 mm² / 1,5 mm²

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Built-in connector

Color: White

BCS-3/MH-N

Plug - Socket intermediate coupling

Connection capacity:

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug-socket intermediate coupling

Color: Black

BCS-3/MH-B

Plug  -Socket intermediate coupling

Connection capacity:

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Plug-socket intermediate coupling

Color: White

BCS-3/D3S-N

Distribution Board : 1 input-3 outputs

Connection capacity:

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Distribution Board

Color: Black

BCS-3/D3S-B

Distribution Board : 1 input-3 outputs

Connection capacity:

Voltage: 250 V

Temperature: 110ºC

Intensity: 16 A

Poles: 2 Poles + Earth

Type: Distribution Board

Color: White

BCS-4/M-N

Conector Macho. Negro

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 400 V

Temperature: 110ºC

Intensity: 16 A

Poles: 3 Poles + Earth

Type: Connector

Color: Black

BCS-4/H-N

Socket Connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 400 V

Temperature: 110ºC

Intensity: 16 A

Poles: 3 Poles + Earth

Type: Connector

Color: Black

BCS-5/M-N

Plug Connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 400 V

Temperature: 110ºC

Intensity: 16 A

Poles: 4 Poles + Earth

Type: Connector

Color: Black

BCS-5/H-N

Socket Connector

Connection capacity:

- Flexible cable: 0,5 mm² / 2,5 mm²

Voltage: 400 V

Temperature: 110ºC

Intensity: 16 A

Poles: 4 Poles + Earth

Type: Connector

Color: Black

BCS-2/T1-N

Screw cover

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles

Type: Screw cover

Color: Black

BCS-3/T1-N

Connector cover

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth

Type: Screw cover

Color: Black

BCS-3/T1-B

Connector cover

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth

Type: Screw cover

Color: White

BCS-3/2T1-N

Screw cover

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth

Type: Screw cover

Color: Black

BCS-2/T2-N

Screw cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles

Type: Screw cover

Color: Black

BCS-3/T2-N

Plug cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth

Type: Screw cover

Color: Black

BCS-3/T2-B

Plug cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth

Type: Screw cover

Color: White

BCS-4/T2-N

Plug cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 3 Poles + Earth

Type: Screw cover

Color: Black

BCS-5/T2-N

Plug cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 4 Poles + Earth

Type: Screw cover

Color: Black

BCS-2/T3-N

Screw cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles

Type: Screw cover

Color: Black

BCS-3/T3-N

Plug cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth

Type: Screw cover

Color: Black

BCS-3/T3-B

Plug cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth

Type: Screw cover

Color: White

BCS-4/T3-N

Socket cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 3 Poles + Earth

Type: Screw cover

Color: Black

BCS-5/T3-N

Socket cover with locking device

Connection capacity:

Temperature: 110ºC

Poles: 4 Poles + Earth

Type: Screw cover

Color: Black

BCS-3/TM-N

End cap that fits the female connectors(H). Black.

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth / 3 Poles

Type: Seal cap

Color: Black

BCS-3/TM-B

End cap that fits the female connectors(H). White.

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth / 3 Poles

Type: Seal cap

Color: White

BCS-3/TH-N

End cap that fits the male connectors (M). Black.

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth / 3 Poles

Type: Seal cap

Color: Black

BCS-3/TH-B

End cap that fits the male connectors (M). White.

Connection capacity:

Temperature: 110ºC

Poles: 2 Poles + Earth / 3 Poles

Type: Seal cap

Color: White



Oficinas

Parque Tecnológico de Asturias
Parcela 24
33428 Llanera (Asturias)
España
+34 985 263 620
Mapa de ubicación de la sede de Tekox
