Conectores para iluminación

Venta/distribuidor/mayorista Conectores para sistemas portalámparas o portatubos. Montaje de iluminación interior.
Series F6

Terminal blocks used as a lampholder in fluorescent lamps.

CE
HALOGEN FREE
ROHS
Raw materials

- Moulding: polyamide 6, natural colour, V2 (according to UL94).
- Insert: nickel-plated brass.
- Screws: zinc-plated steel. Metric thread.

Constructive characteristics

- Contact holes are at the same distance of fluorescent lamp pins.
- Type F6-C has a housing to locate terminal.
- Type F6-CPE has a housing to locate terminal and elevated base that acts as standard lampholder.

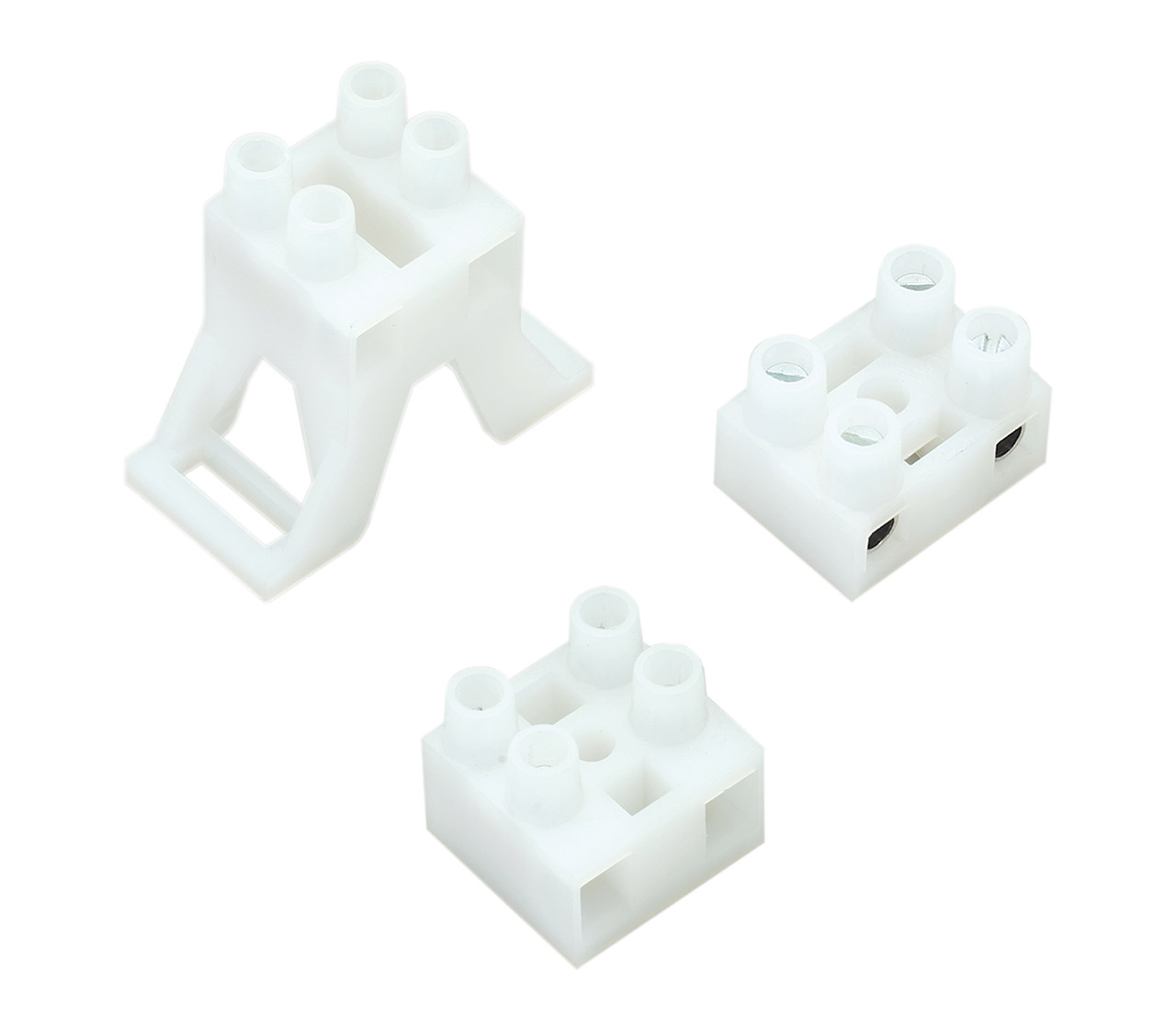

Series F6

3 available versions which are compatible with T8 tubes.

F6

Terminal Blocks for Fluorescent Lighting

Connection capacity:

- Solid cable: 4 mm² / 1,5 mm²

- Flexible cable: 4 mm² / 1,5 mm²

Voltage: 250 V

Temperature: 110ºC

Constructive:

- Are specially made to act both as lampholder and connection unit of fluorescent lamps.
- Contact holes are at the same distance of fluorecent lamp pins.
- Captive screw.
- Raised screw, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 17,5 A

Tightening torque: 0,5 Nm

Metrics: M 3

F6-C

Terminal Blocks for Fluorescent Lighting with Housing Terminal

Connection capacity:

- Solid cable: 4 mm² / 1,5 mm²

- Flexible cable: 4 mm² / 1,5 mm²

Voltage: 250 V

Temperature: 110ºC

Constructive:

- Are specially made to act both as lampholder and connection unit of fluorescent lamps.
- Contact holes are at the same distance of fluorecent lamp pins.
- Captive screw.
- Raised screw, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 17,5 A

Tightening torque: 0,5 Nm

Metrics: M 3

F6-CPE

Terminal Blocks for Fluorescent Lighting with Housing Terminal and Elevated Base

Connection capacity:

- Solid cable: 4 mm² / 1,5 mm²

- Flexible cable: 4 mm² / 1,5 mm²

Voltage: 250 V

Temperature: 110ºC

Constructive:

- Are specially made to act both as lampholder and connection unit of fluorescent lamps.
- Contact holes are at the same distance of fluorecent lamp pins.
- Captive screw.
- Raised screw, providing an easier insertion of the conductor.
- Halogen free products.

Intensity: 17,5 A

Tightening torque: 0,5 Nm

Metrics: M 3
