Bornas de derivación HPS

HPS

Branching blocks used to make connections in electrical installations, with one or more cables, without cutting the main cable.

CE
AENOR
HALOGEN FREE
ROHS
Raw materials

- Moulding: polyamide 6, natural colour. V2 (according to UL94).
- Insert: nickel-plated brass.
- Screws: nickel-plated brass and metric thread.

Constructive characteristics

- Glow wire text 960ºC according to EN 60695-2-11.
- Technical features according to EN 60998 (types up to 35mm2) and EN 60947 (types from 50mm2 on).

The more reliable and safer connection

This series has been designed to decrease the user's manipulation and increase safety of torque.

Types up to 35 mm² supplied in 12 ways easily divided by hand.

Types 50 mm² and above: available with Allen screws.

HPS 6

Insulated terminal blocks

Connection capacity:

- Solid cable: 6 mm² / 2,5mm²

- Flexible cable: 4 mm² / 2,5mm²

Voltage: 500 V

Temperature: 110ºC

Constructive:

- Version standard : 12 poles.
- Can be easily divided by hand into the required number of poles.
- Raised screw, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Halogen free products.

Intensity: 41 A

Tightening torque: 1,2 Nm

Metrics: M 5

Screw: Sloted

HPS 10

Insulated terminal blocks

Connection capacity:

- Solid cable: 10 mm² / 4 mm²

- Flexible cable: 6 mm² / 4 mm²

Voltage: 500 V

Temperature: 110ºC

Constructive:

- Version standar: 12 poles.
- Can be easily divided by hand into the required number of poles.
- Raised screw, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Halogen free products.

Intensity: 57 A

Tightening torque: 1,2 Nm

Metrics: M 6

Screw: Sloted

HPS 16

Insulated terminal blocks

Connection capacity:

- Solid cable: 16 mm² / 6 mm²

- Flexible cable: 10 mm² / 4 mm²

Voltage: 500 V

Temperature: 110ºC

Constructive:

- Version standard : 12 poles.
- Can be easily divided by hand into the required number of poles.
- Raised screw, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Halogen free products.

Intensity: 76 A

Tightening torque: 2,5 Nm

Metrics: M 8

Screw: Sloted

HPS 25/35

Insulated terminal blocks

Connection capacity:

- Solid cable: 35 mm² / 16 mm²

- Flexible cable: 25 mm² / 10 mm²

Voltage: 500 V

Temperature: 110ºC

Constructive:

- Version standard : 12 poles.
- Can be easily divided by hand into the required number of poles.
- Raised screw, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Halogen free products.

Intensity: 125 A

Tightening torque: 2,5 Nm

Metrics: M 12

Screw: Sloted

HPS 50

Insulated terminal blocks

Connection capacity:

- Solid cable: 50 mm² / 35 mm²

- Flexible cable: 35 mm² / 35 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Available with Allen screw.
- Halogen free products.

Intensity: 150 A

Tightening torque: 5 Nm

Metrics: M 14

Screw: Sloted

HPS 50/A

Insulated terminal blocks

Connection capacity:

- Solid cable: 50 mm² / 35 mm²

- Flexible cable: 35 mm² / 35 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Available with Allen screw.
- Halogen free products.

Intensity: 150 A

Tightening torque: 5 Nm

Metrics: M 14

Screw: Allen

HPS 70

Insulated terminal blocks

Connection capacity:

- Solid cable: 70 mm² / 50 mm²

- Flexible cable: 50 mm² / 50 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Available with Allen screw.
- Halogen free products.

Intensity: 192 A

Tightening torque: 5,5 Nm

Metrics: M 16

Screw: Sloted

HPS 70/A

Insulated terminal blocks

Connection capacity:

- Solid cable: 70 mm² / 50 mm²

- Flexible cable: 50 mm² / 50 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Available with Allen screw.
- Halogen free products.

Intensity: 192 A

Tightening torque: 5,5 Nm

Metrics: M 16

Screw: Allen

HPS 95

Insulated terminal blocks

Connection capacity:

- Solid cable: 95 mm² / 70 mm²

- Flexible cable: 70 mm² / 70 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Available with Allen screw.
- Halogen free products.

Intensity: 232 A

Tightening torque: 9 Nm

Metrics: M 18

Screw: Sloted

HPS 95/A

Insulated terminal blocks

Connection capacity:

- Solid cable: 95 mm² / 70 mm²

- Flexible cable: 70 mm² / 70 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Available with Allen screw.
- Halogen free products.

Intensity: 232 A

Tightening torque: 9 Nm

Metrics: M 18

Screw: Allen

HPS 120

Insulated terminal blocks

Connection capacity:

- Solid cable: 120 mm² / 95 mm²

- Flexible cable: 95 mm² / 95 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Available with Allen screw.
- Halogen free products.

Intensity: 269 A

Tightening torque: 11 Nm

Metrics: M 20

Screw: Sloted

HPS 120/A

Insulated terminal blocks

Connection capacity:

- Solid cable: 120 mm² / 95 mm²

- Flexible cable: 95 mm² / 95 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Available with Allen screw.
- Halogen free products.

Intensity: 269 A

Tightening torque: 11 Nm

Metrics: M 20

Screw: Allen

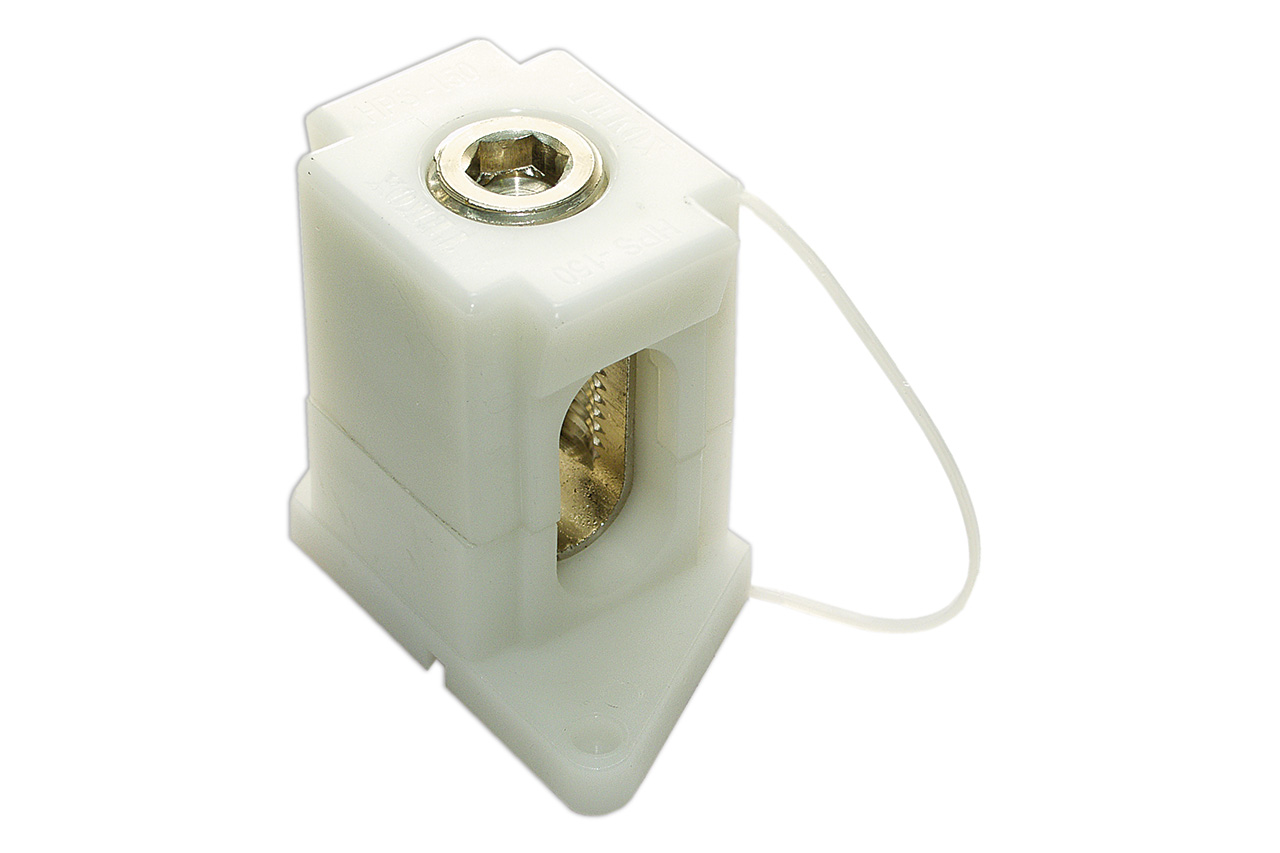

HPS 150/A

Insulated terminal blocks

Connection capacity:

- Solid cable: 150 mm² / 120 mm²

- Flexible cable: 120 mm² / 120 mm²

Voltage: 1000 V

Temperature: 110ºC

Constructive:

- Presented in a 1-pole version.
- Can be easily joined.
- Raised screws, providing an easier insertion of the conductor.
- The screw is integrated into the cap, considerably reducing connection time.
- Guided screwing.
- Only with Allen screw.
- Halogen free products.

Intensity: 309 A

Tightening torque: 50 Nm

Metrics: M 28

Screw: Allen
